My Frankenstereo

by steakster on Cables R Us
Talon Roc 2002 Subwoofers x 2
Magnus Audio MA-200 Class SS amp
Audio Horizons AH-TP 2.3 SvB - tube preamp
Concert Fidelity DAC-040BD
Denon DCD - 160AR - CD Transport
Empirical Audio Off-Ramp 5
Auralic Aries Streamer
Core Power USBe Perfect
12vdc power conditioner

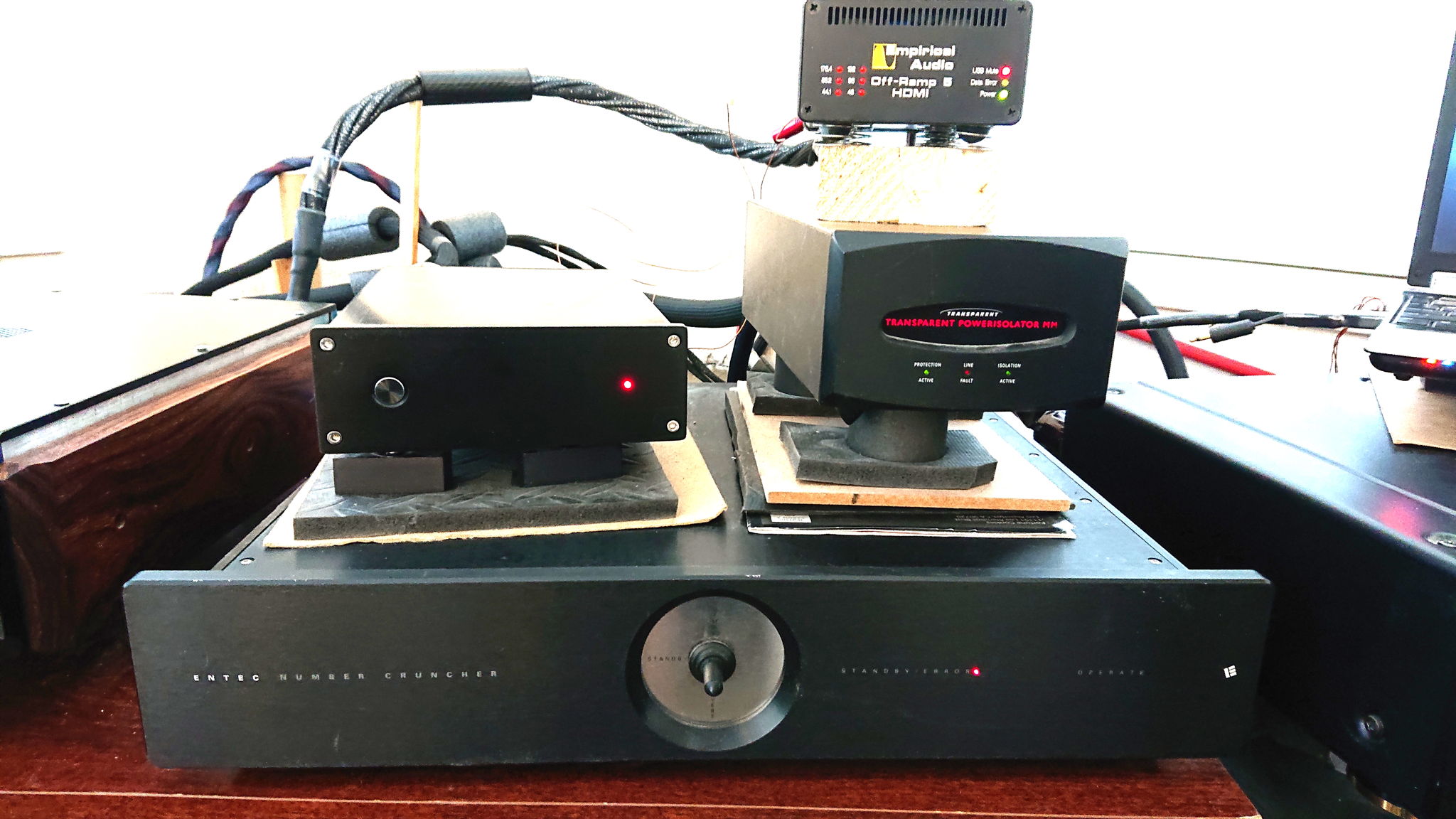

Empirical Off-Ramp 5, Transparent PIMM, 12 DC LPS
Transparent Audio PIMM
Smart Devices Balanced Power Conditioner

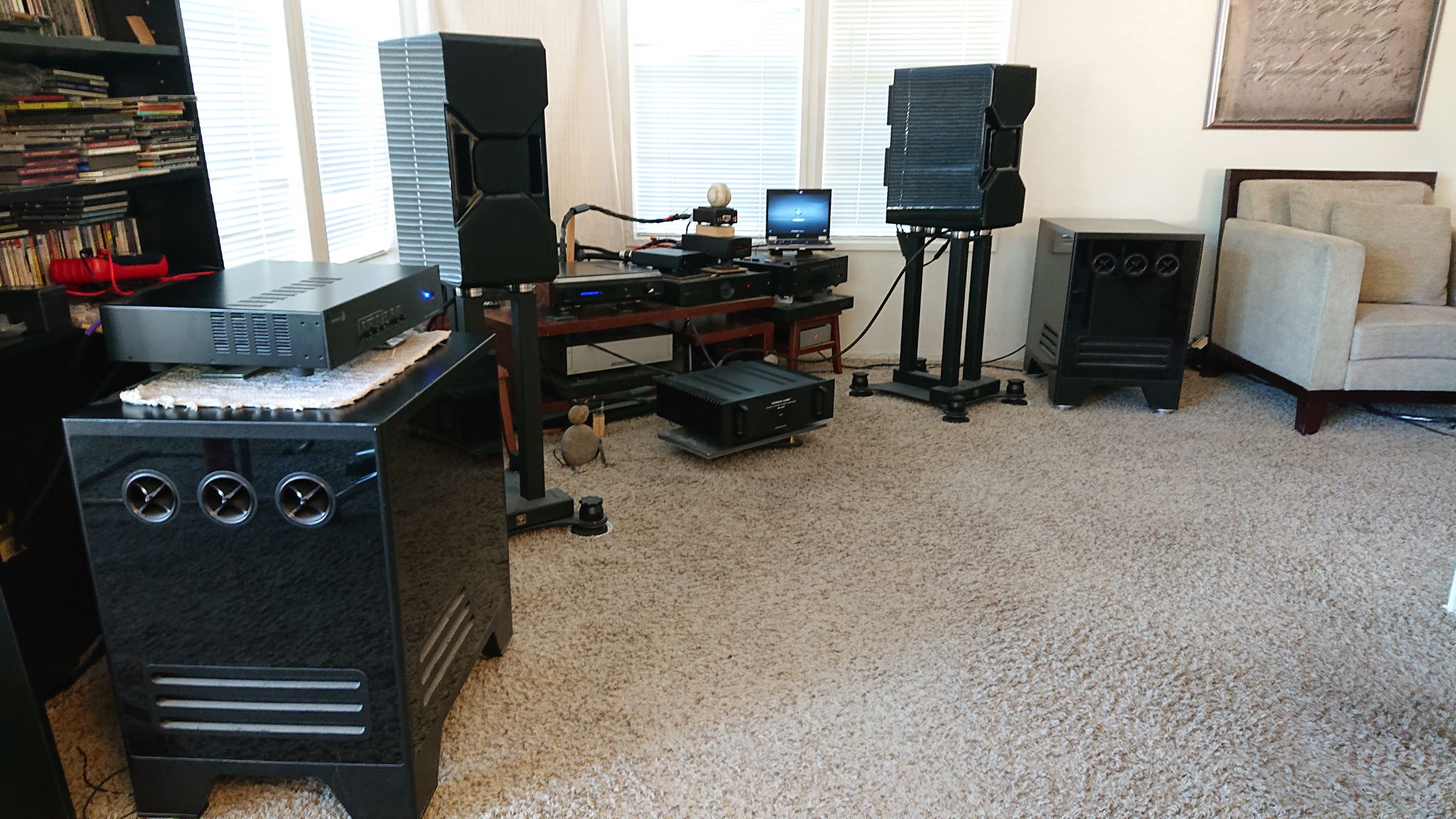

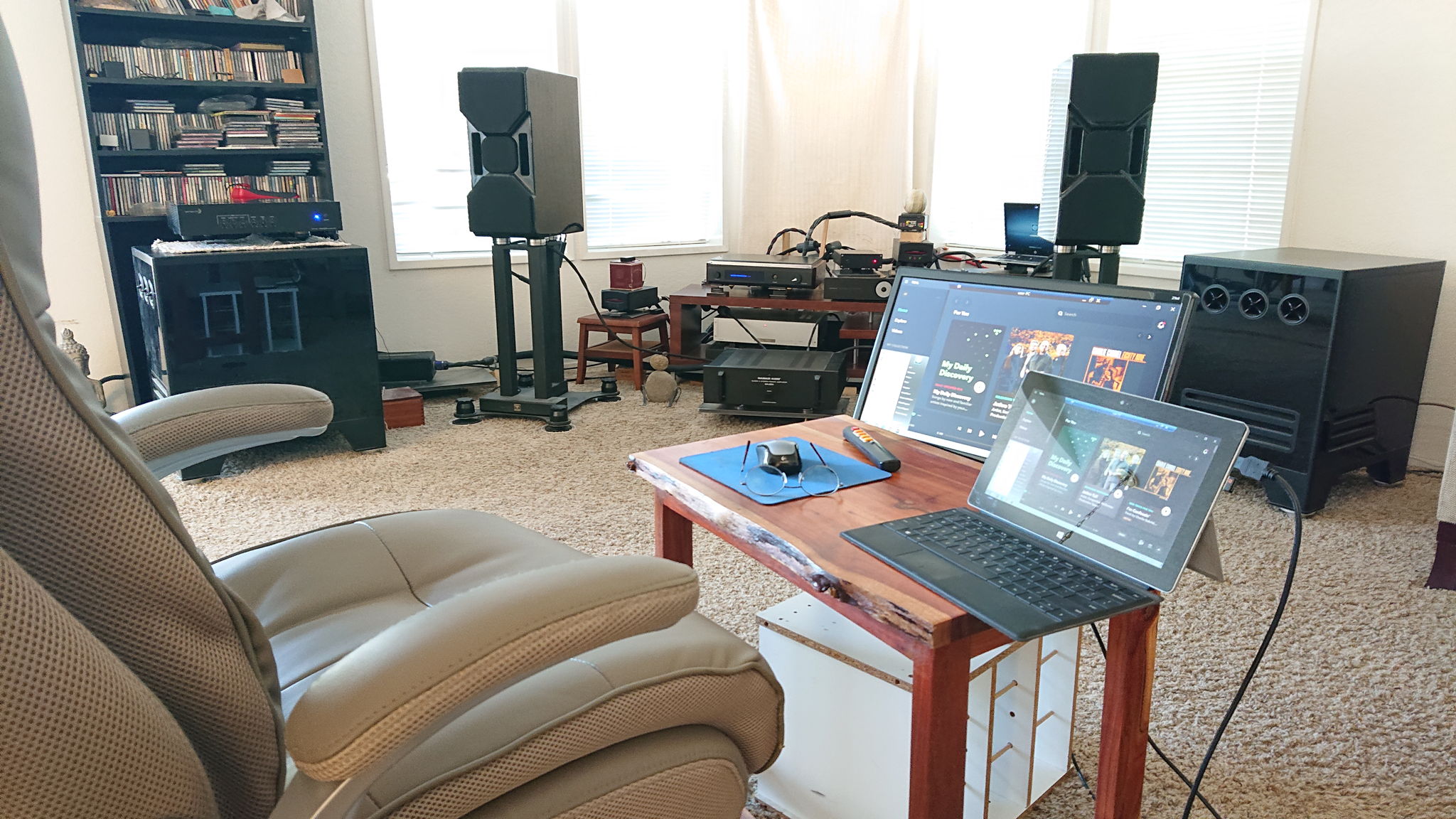

An arranged mess.
Often used tools

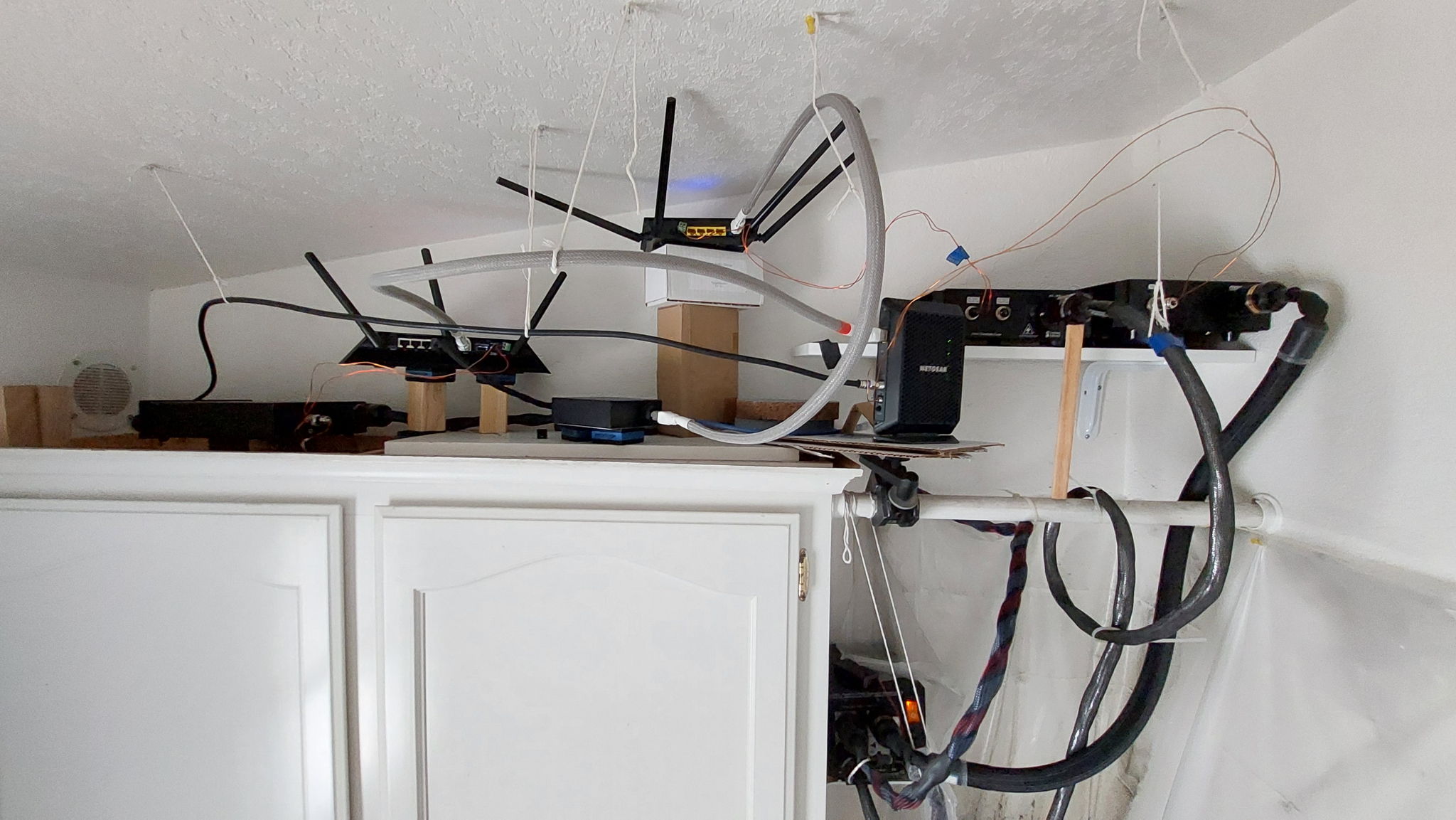

WiFi - Fidelizer Audio AirStream & Sablon Audio 2020 Ethernet Cables

Description

A motley collection of components and cables assembled over 20+ years.  The SQ is full-bodied, dynamic and immersive.   No distortion.  No fatigue.  A grand piano sounds like a grand piano.  99% streaming via Tidal.

I prefer large monitors and powered subs over full-range floorstanders. This allows better fine-tuning of the bass to the room nodes.

I'm from the school that everything matters. Constant tweaking over the years.  I didn't know what my system's potential was until the electrical power was cleaned up.     As it's become optimized, the music is magical.

Transparent Audio believes that the power to each component should be isolated to prevent cross-contamination - especially with digital gear.   Digital gear regurgitates noise back into the system circuitry which affects the SQ of the other components.  So, each primary component in my rig (analog & digital) has its own dedicated Transparent Audio PIMM (Power Isolator MM series).   Each PIMM is plugged into balanced power.  In other words, the power to all the components is both balanced and conditioned - including the modem & router.  Except the amp is plugged only into a non-current limiting conditioner.     All LPS's - no wall warts.   After-market footers under everything.

After installing the PIMM's, it was extremely easy to hear how a power cord influenced the SQ.   It's taken years of auditioning many different brands & models of power cords to find a synergy that works for my ears - matching specific pc's to specific components.  The signal cables, analog & digital, are a full loom of Synergistic Research Atmosphere Series - upper tiers.  Wow!

Older Wilson speakers with the Focal 1" titanium coated tweeter have a bad reputation for harsh highs.  Not in my rig.

My latest tweak was to deal with the EMI that was radiating from my large transformer-based components. Better everything!  More info here.

Read more...

Room Details

Dimensions: 20’ × 15’  Medium
Ceiling: 12’

Components Toggle details

    • Clean Power
    The reason for listing my power conditioning components first is because of its importance.  Clean AC power is the foundation for high fidelity.   Especially for the digital chain.

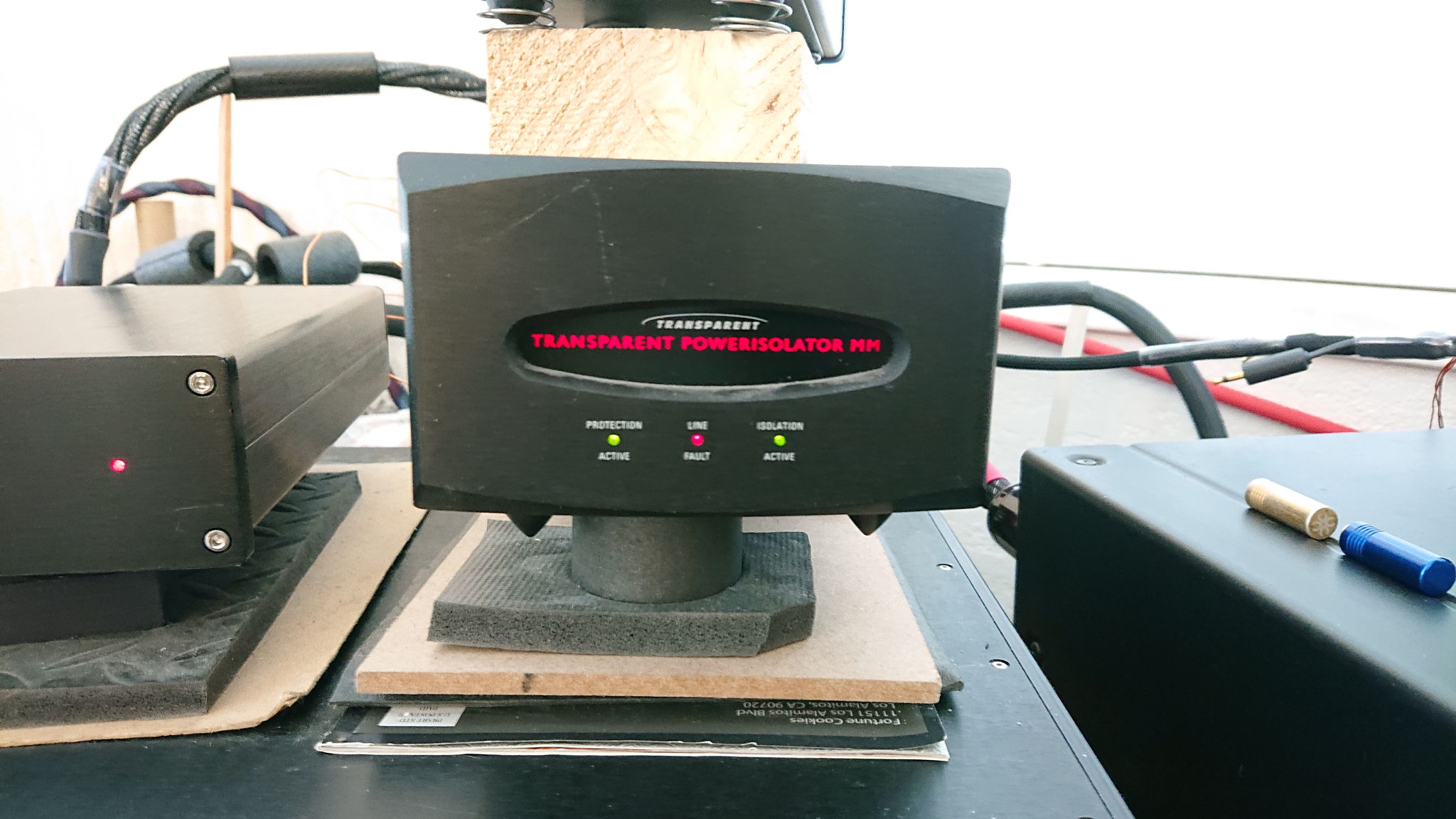

    • Transparent Audio PIMM - aka - Power Isolator MM series power conditioner
    I have 6 of them.  One dedicated to each primary component.  Non-current limiting.

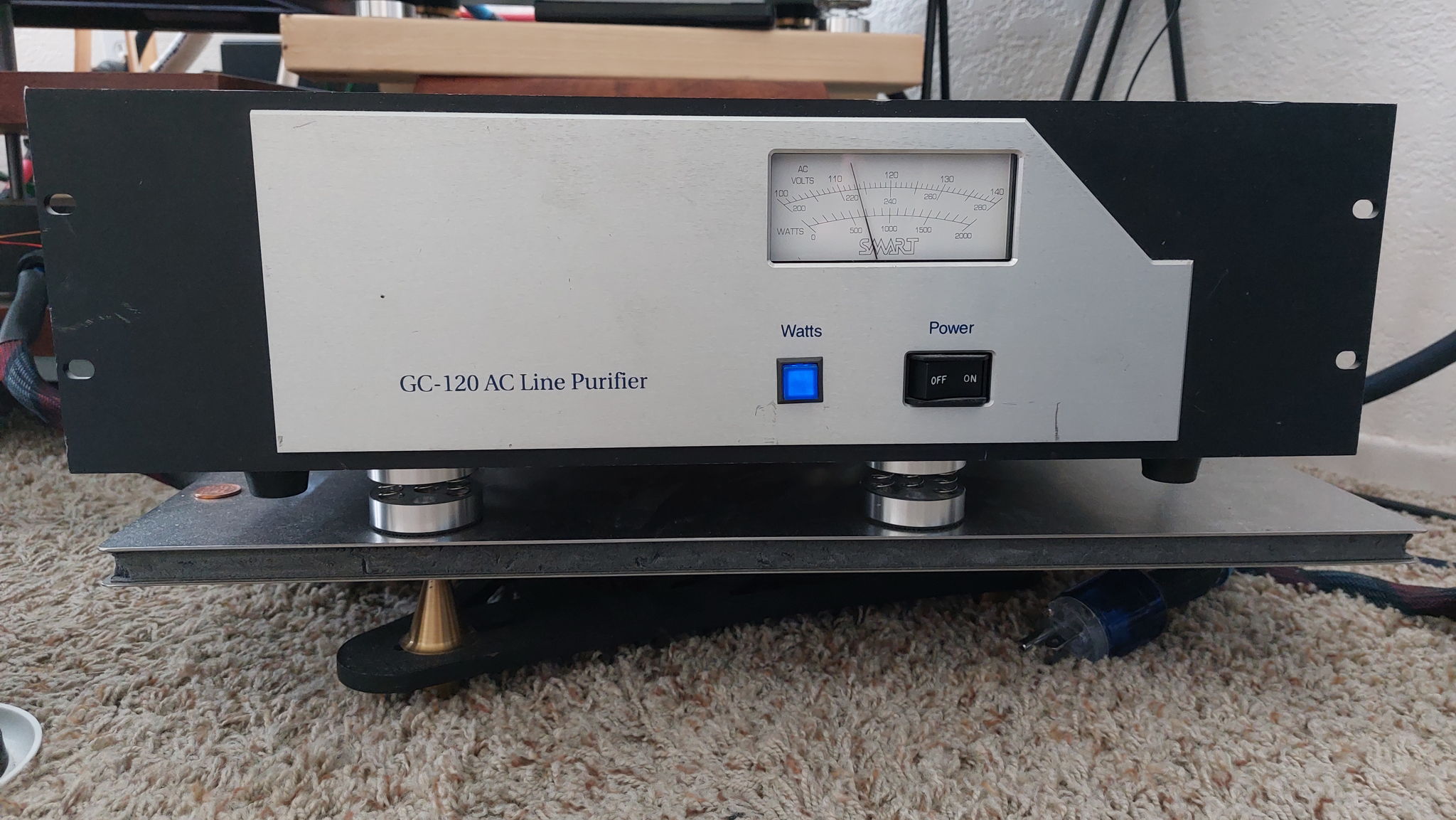

    • Smart Devices GC-120 Garbage Collector - Balanced Power Conditioner
    Balanced power for the source components.   Every Transparent Audio PIMM is plugged into it.
    • Balanced Power Technologies BPT Jr. II - for the Modem & Router
    In a different room, the Modem & Router are plugged into the BPT Jr - which is plugged into the Majik Buss power conditioner.
    • PI Audio Majik Buss Power Conditioner
    Works in conjunction with the BPT Jr.

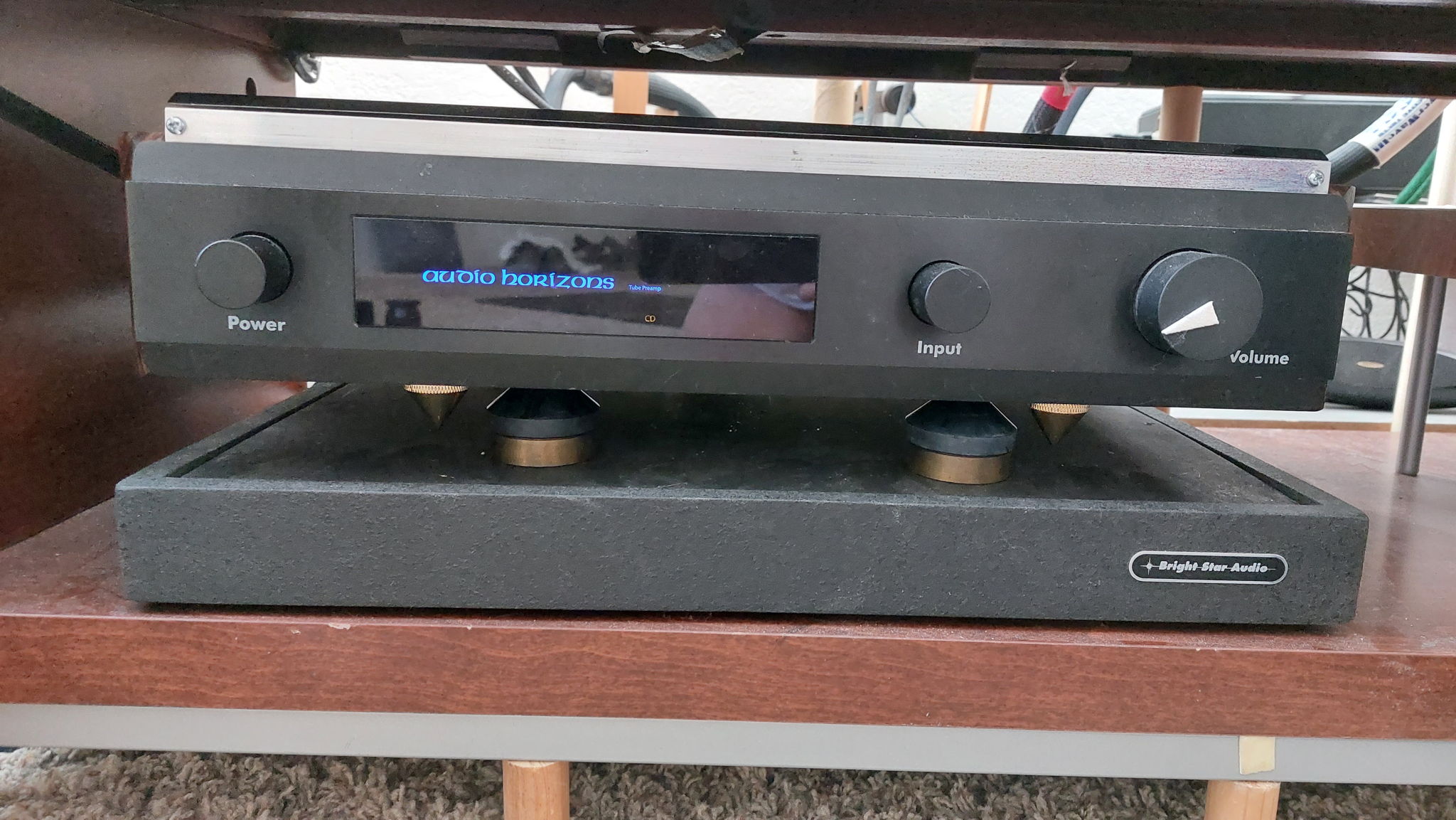

    • Audio Horizons AH-TP2.3SvB - Tube Preamp

    A Joseph Chow design.  4 x 6922 tubes. Using the balanced circuit.

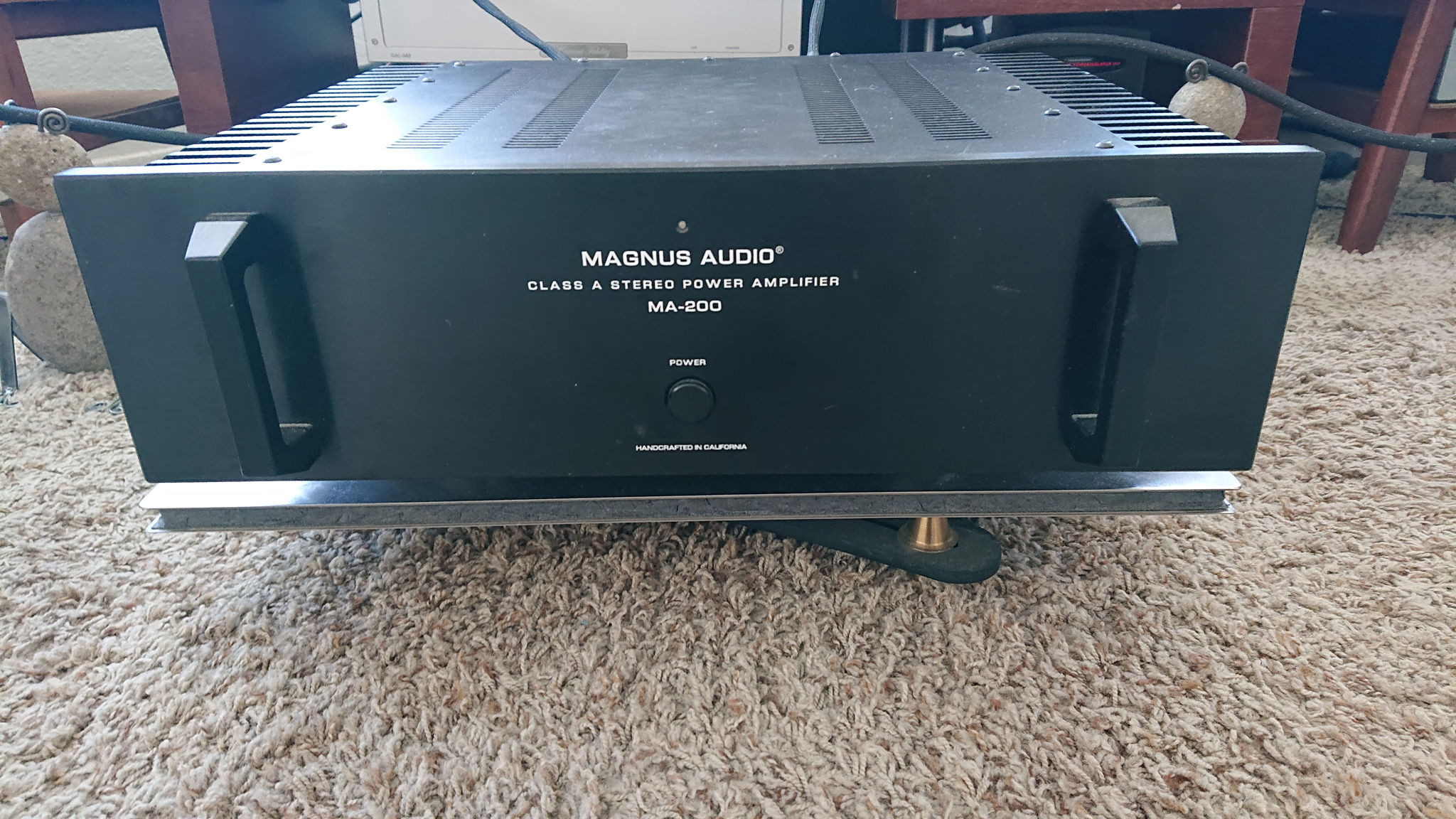

    • Magnus Audio MA-200 Class A SS amp.
    Magnus Audio is the solid state division of Canary Audio.   Using the balanced circuit.

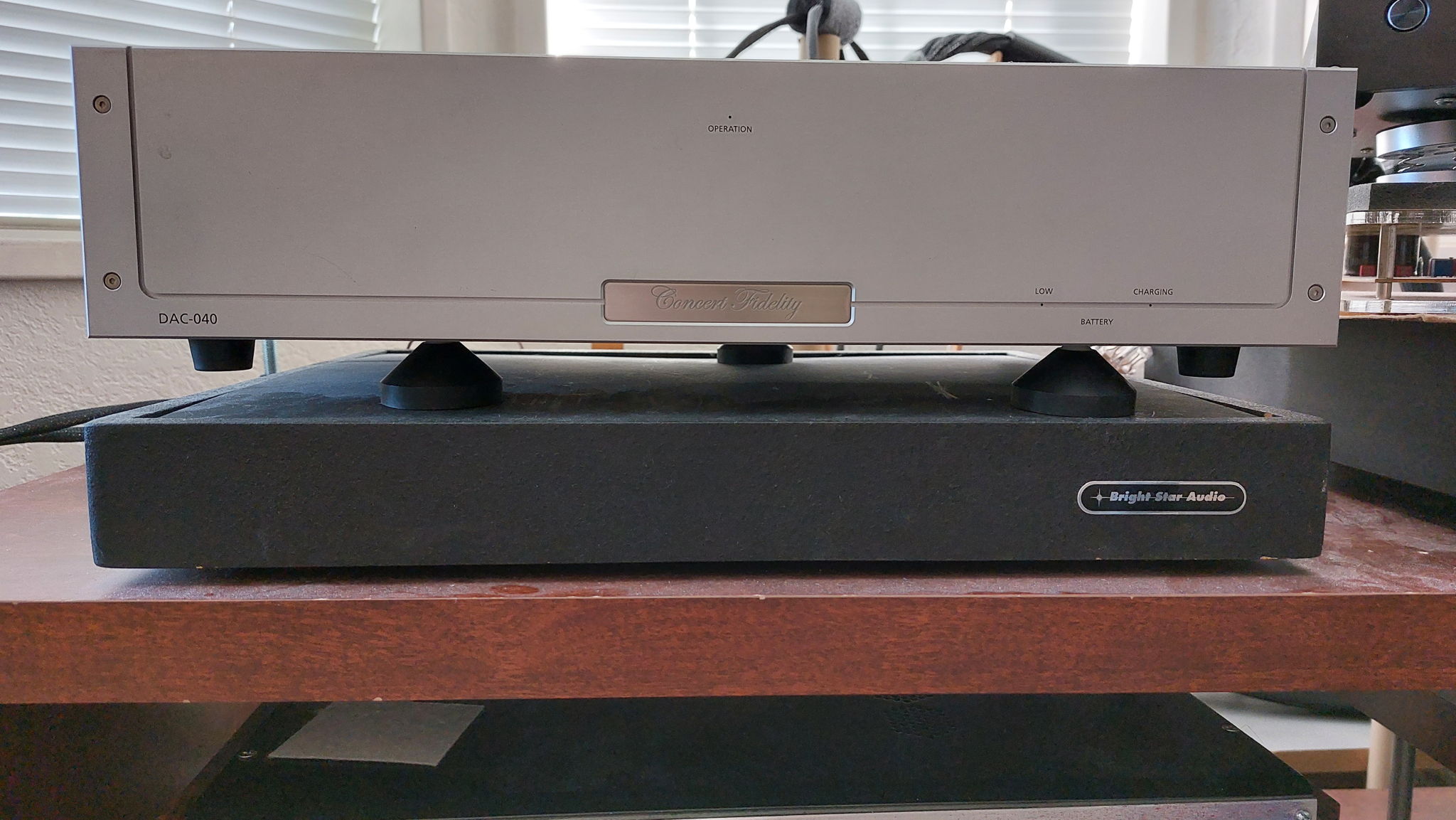

    • Concert Fidelity DAC-040BD

    Concert Fidelity DAC 16 bit/44.1kHz Redbook Only.  Battery operated.  Delicious!

    The internal battery pack has a short lifespan.  So, I did a slight modification of adding a DC power connector to the rear panel.  Now, I can use a bigger external battery (with a longer life) or an external LPS.  I prefer the longer-life battery.
    • Entec Number Cruncher DAC 3.0+

    This Enter Number Cruncher is an amazing one-bit DAC.  It cost $7K in 2000.   Bob Crump, of  TG Audio, modified it several times over the years to squeeze out the best performance.   In 2018, the caps were replaced with the latest high-quality designs.   This old DAC competes easily with higher-end models made recently in the 2020’s.   I’ve compared it.    (BTW, Bob Crump voiced the original Parasound JC-1 monoblocks for John Curl.)

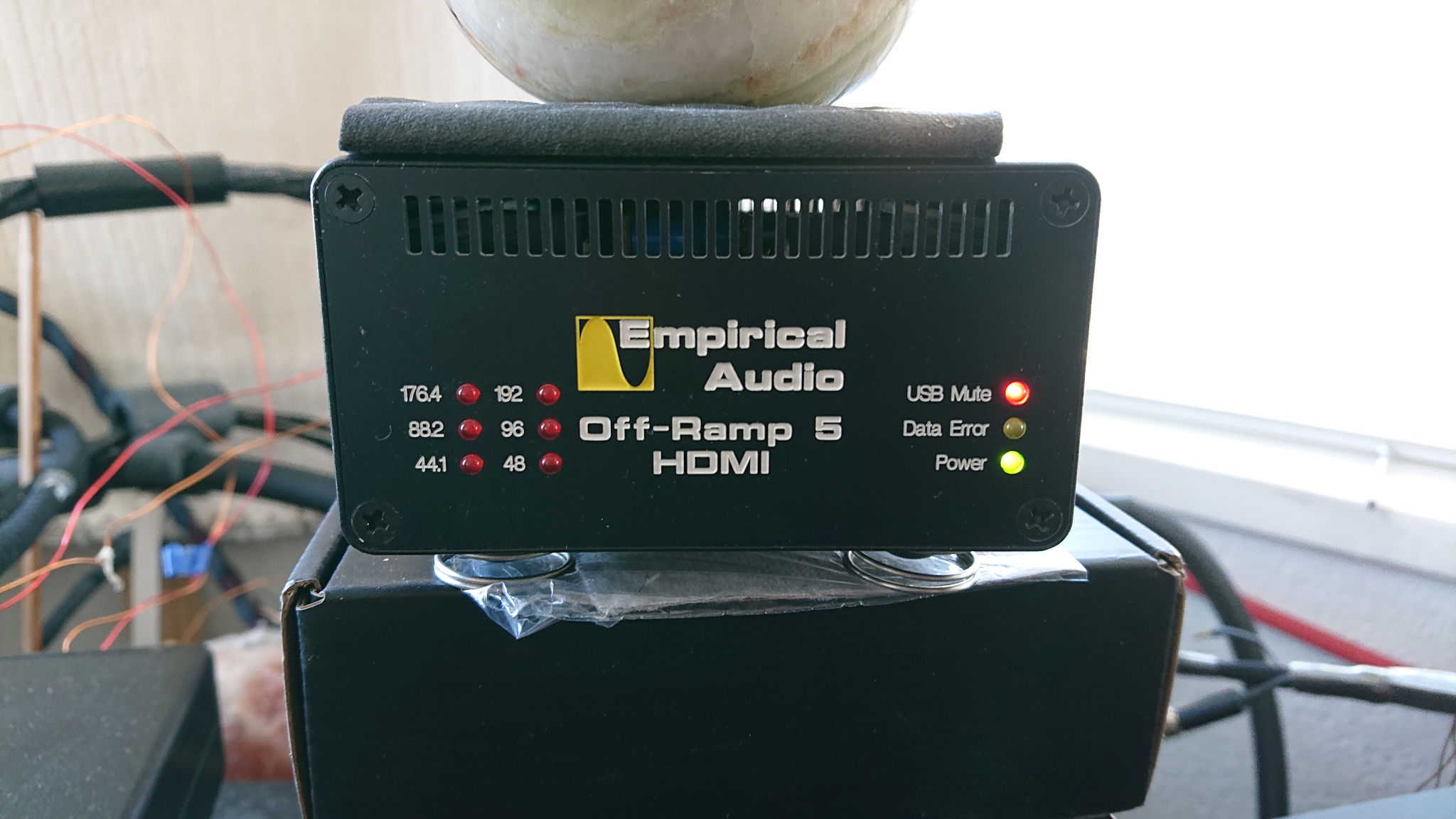

    • Empirical Audio Off-Ramp 5: DDC
    The Empirical Audio Off-Ramp 5 converts USB to SPDIF & AES/EBU.    It's an excellent bridge that re-clocks the signal between the Aries streamer and the Concert Fidelity DAC.  Even though it's Redbook only, it delivers all the music.

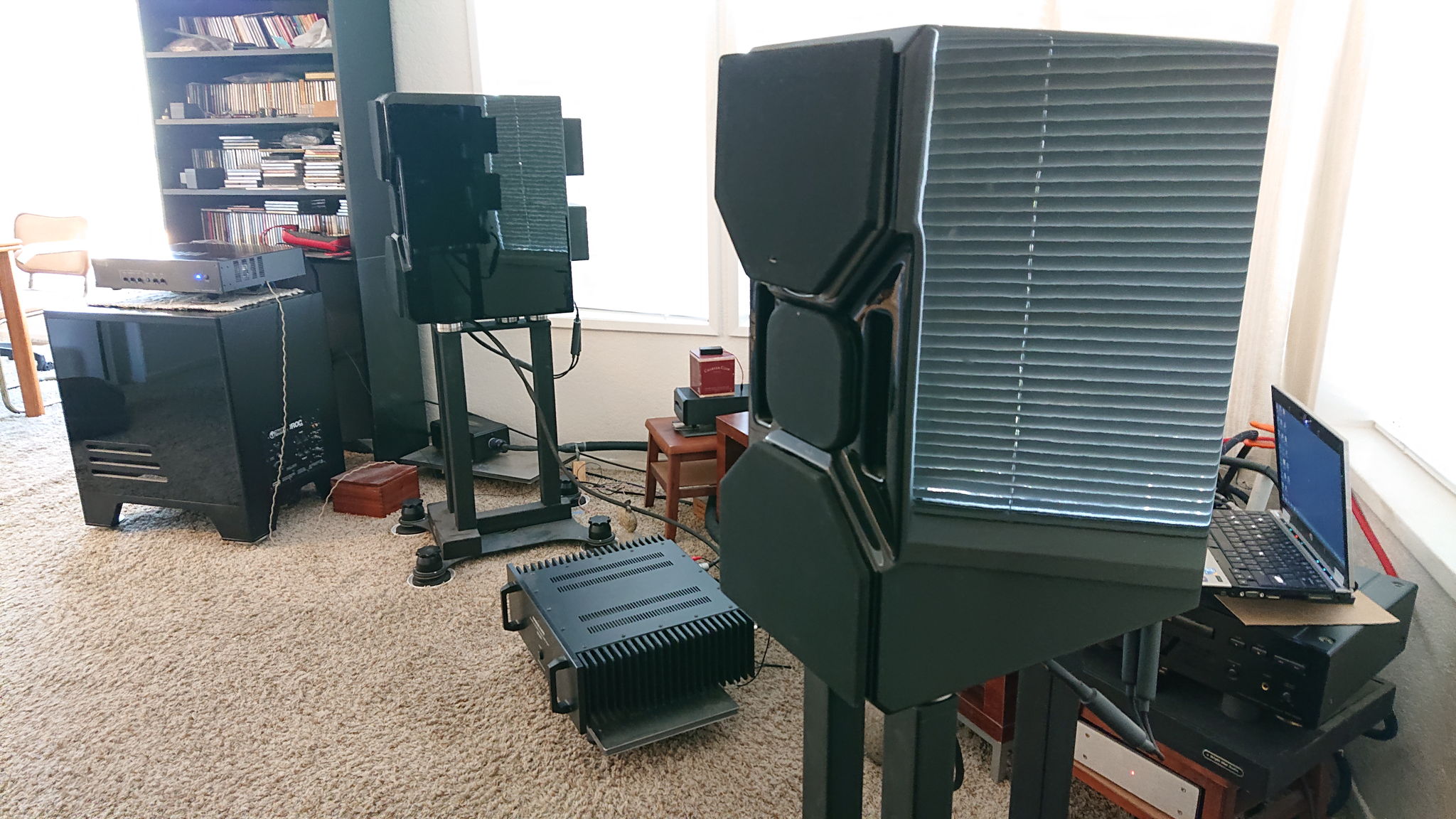

    • Wilson Audio Cub Series II Monitors
    Wilson Audio CUB = Center Unitized Bass.
    Good frequency response down to 40hz.
    Clean & dynamic.  No harshness.
    • Townshend Audio Speaker Podiums
    Excellent tweak.  Highly recommend!   With my suspended floors, the improvement in SQ was immediate.

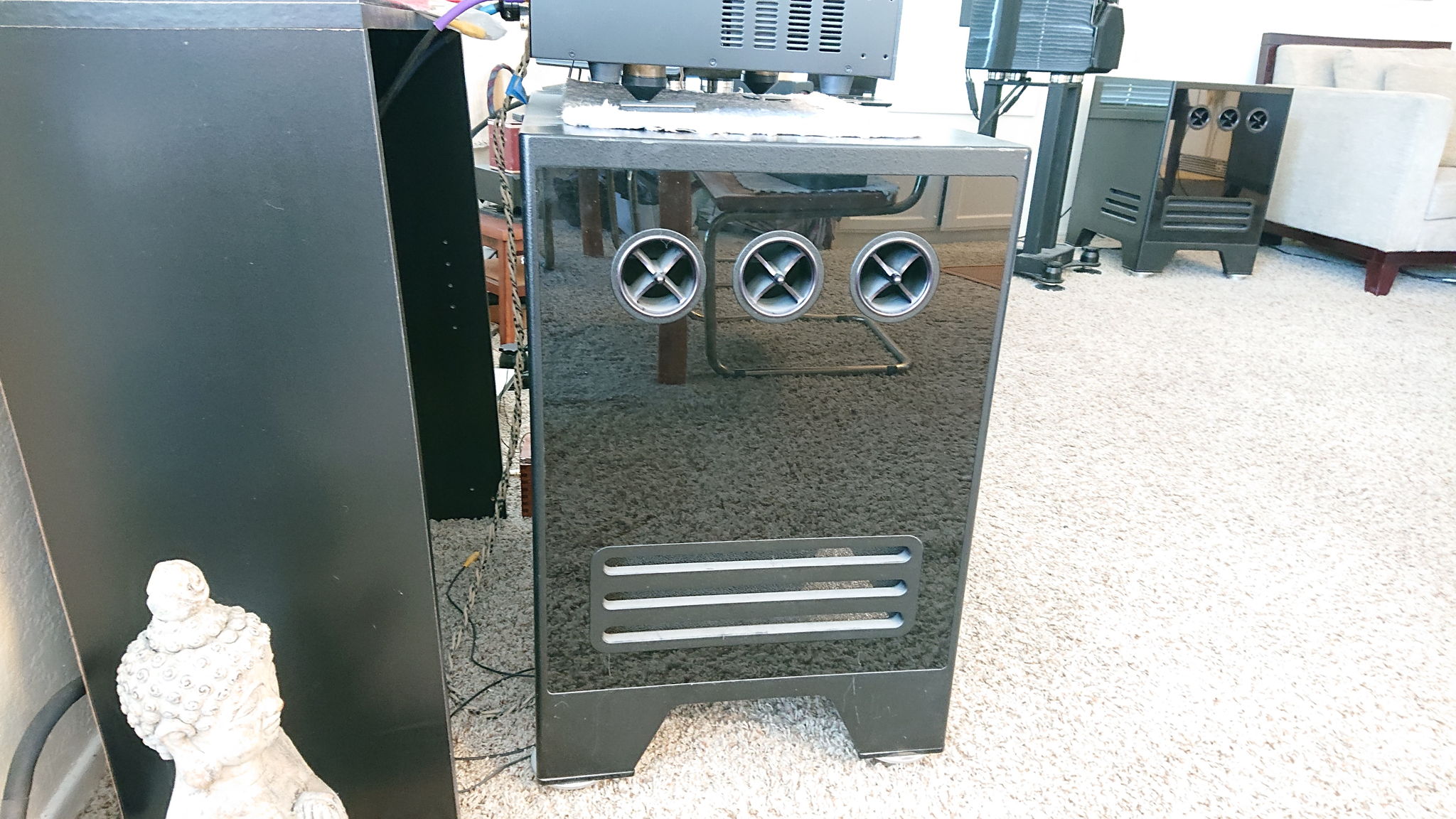

    • Talon Audio Roc 2002 Subwoofers x 2
     2 x 12" drivers inside each cabinet.  Fast & deep.  Integrates perfectly with the Wilson Cub monitors.   Weigh 125 lbs each.
    • Fidelizer Audio AirStream WiFi

    Keetakawee @Fidelizer Audio modified an ASUS WiFi router.    Specially selected parts to quiet the circuitry - including a better clock.   The AirStream is used as an access point following the Netgear router.

    • Network Acoustic Eno AG filters
    Have 2.

    Modem > Eno filter >Sablon 2020 cable > Netgear Nighthawk Router > Eno filter > Sablon 2020 cable > Fidelizer Audio AirStream WiFi.
    • Sablon Audio 2020 Ethernet cable
    Sablon Audio.  Excellent ethernet cable.  Have two.  One between the Netgear modem & Netgear router. Another between the Netgear router and the Fidelizer WiFi AirStream.    Body, texture, depth.

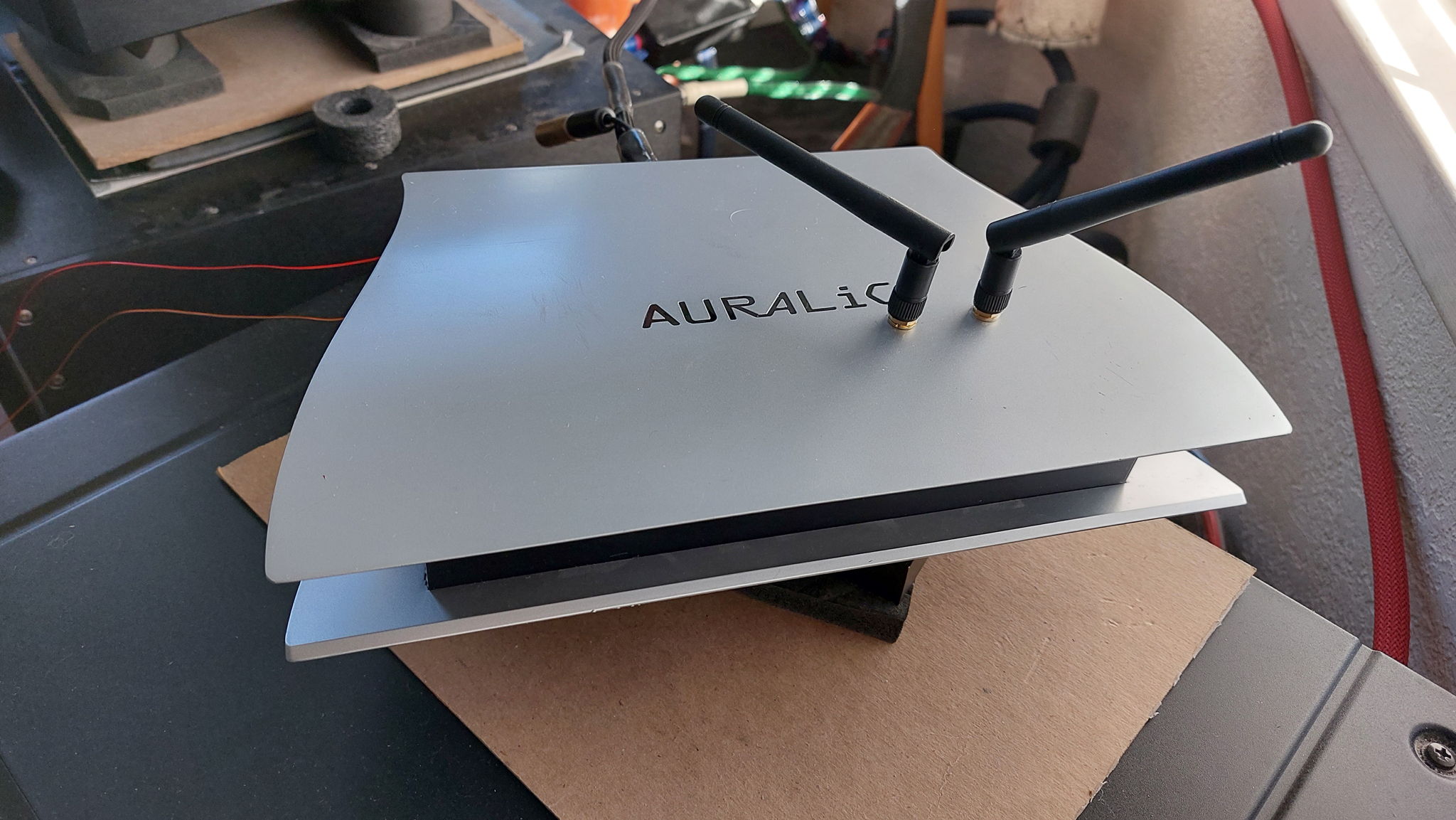

    • Auralic Aries Streamer
    Very nice!   But the stock DC umbilical cord that comes with it sounds terrible.   It was replaced immediately with a DIY 20awg pure OCC solid core copper wire.    Huge improvement!   Modded the internal antenna with external ones.   Using a better quality LPS than the stock one.

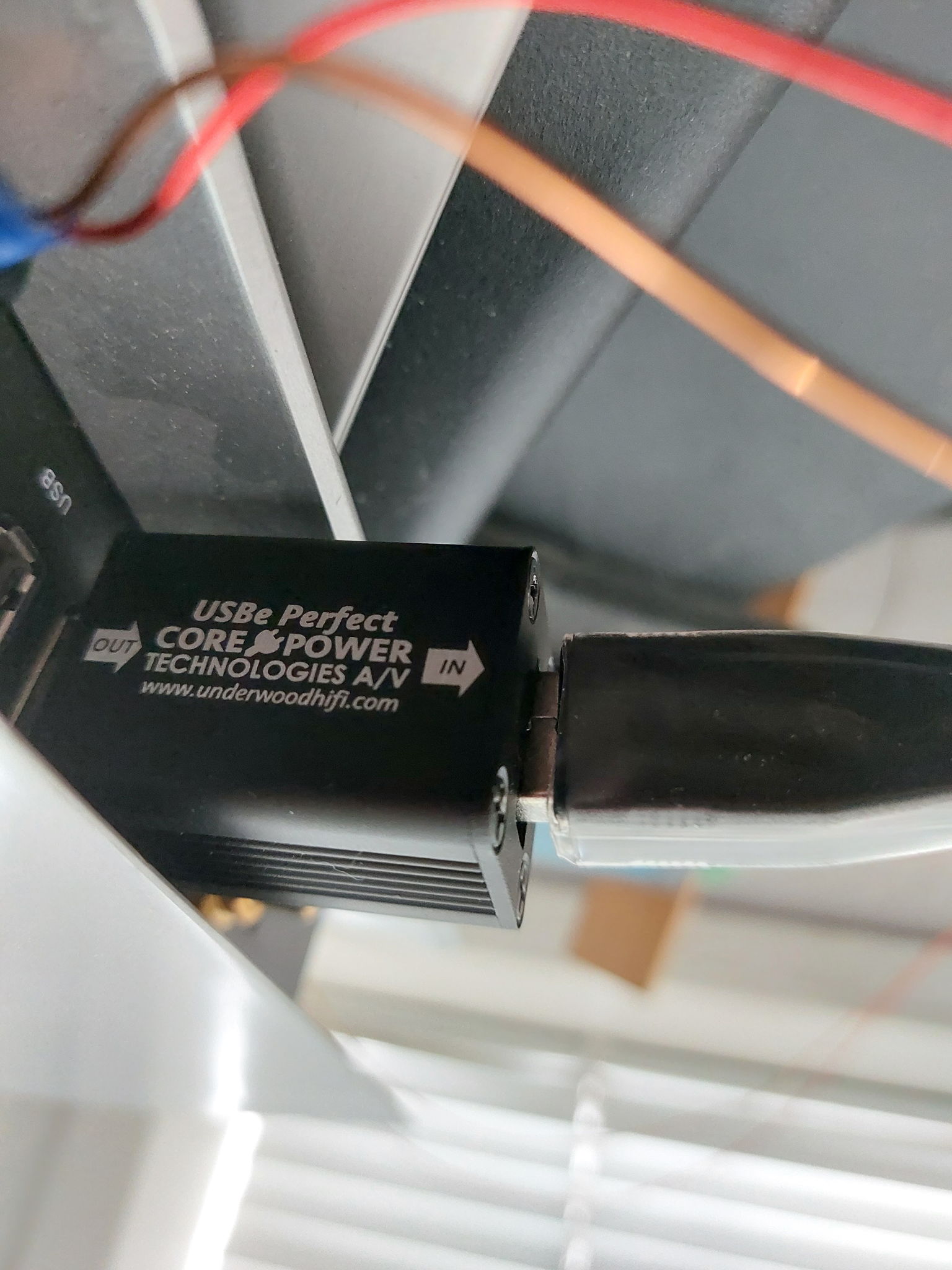

    • Core Power Technologies USBe Perfect
    This USBe Perfect is a USB signal regenerator.   It's installed in the back of the Auralic Aries Streamer.   It significantly improves the SQ of the USB signal coming out of the Aries.  The SQ is much more clean & refined - like a much more expensive streamer.   I'm guessing that the regenerator is removing noise that is produced by the Aries motherboard.  Highly recommend for budget streamers.

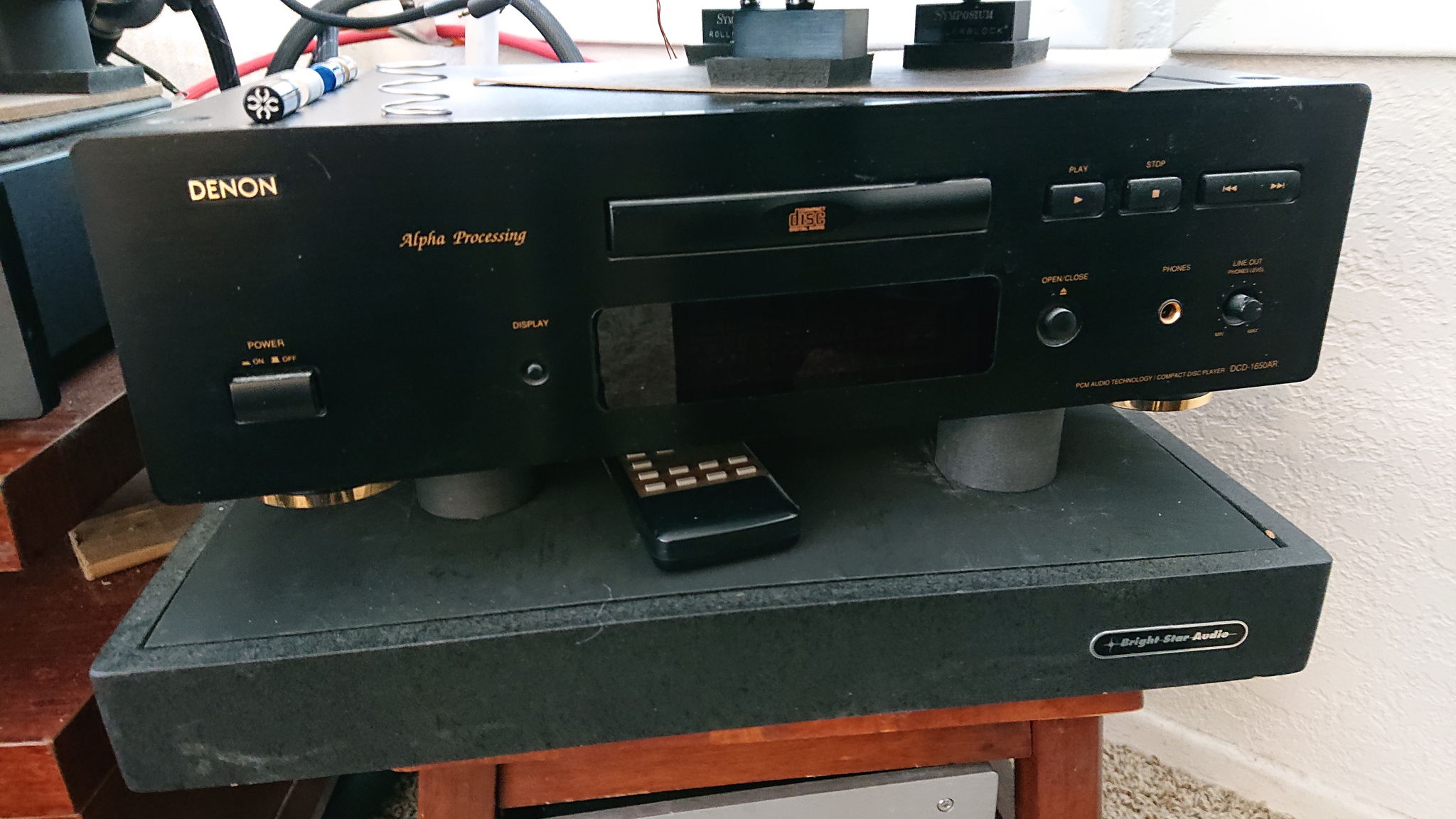

    • Denon DCD-1650AR - CD Transport
    Oldie but goodie.
    • Full Loom _ Synergistic Research
    Atmosphere Series - upper tiers - signal cables - IC's & SC's.  Many PC's.   Ater cleaning up the power, these SR cables brought everything together.  The SQ is the best ever.
    • Synergistic Research Galileo UEF AES/EBU digital cable
    This SR Galileo digital cable was almost like a component upgrade - which influenced my decision to convert from a WyWires loom to a SR loom. I bought it after reading this review.  The Galileo series is SR's top-of-the-line.    The other non-Galileo SR series are good but not as transformative as the Galileo series.
    • Nordost QBase QB4
    I have 3 QBase Power Strips. One for each of the 3 circuits used for my system.  They use Nordost solid core wiring which improves the SQ.

    The QB4 has 4 outlets.  One is a regular outlet which Nordost calls the 'primary earth'.  The other 3 outlets have resistors installed. Nordost states that the resistors slightly lift the ground - and also serve to lightly separate the circuits from each other to prevent cross-contamination from the other components that are plugged into it.

    I'm not a fan of the resistors.  In my system, the resistors soften the sound - less dynamic.    I only use the primary earth outlet in two of the QB4's. In the 3rd one, I disconnected the resistors - so that all of the outlets are primary earth.
    • Synergistic Research Atmosphere X Reference USB cable
    The passive red & blue tuning bullets offer the ability to tweak the SQ.
    • Purist Audio Design Canorus Contego Power Cords
    Have 2.
    • Nobsound Springs
    • Sound Anchor Stands

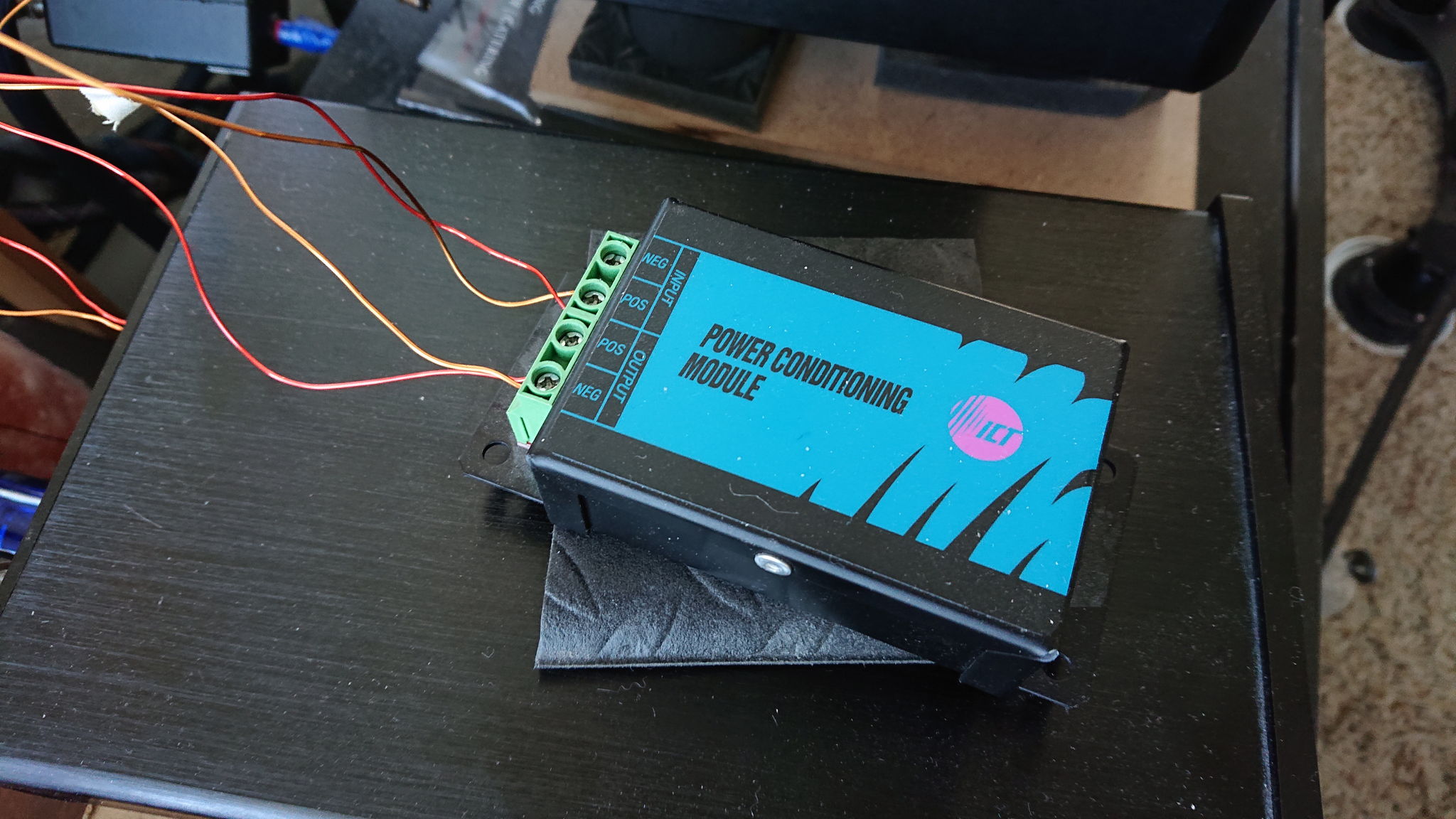

    • ICT PCM-12ADL vdc power conditioner
    I have power conditioning on all of the AC lines.  Why not try conditioning on the DC umbilical cords as well?  The concept works great.

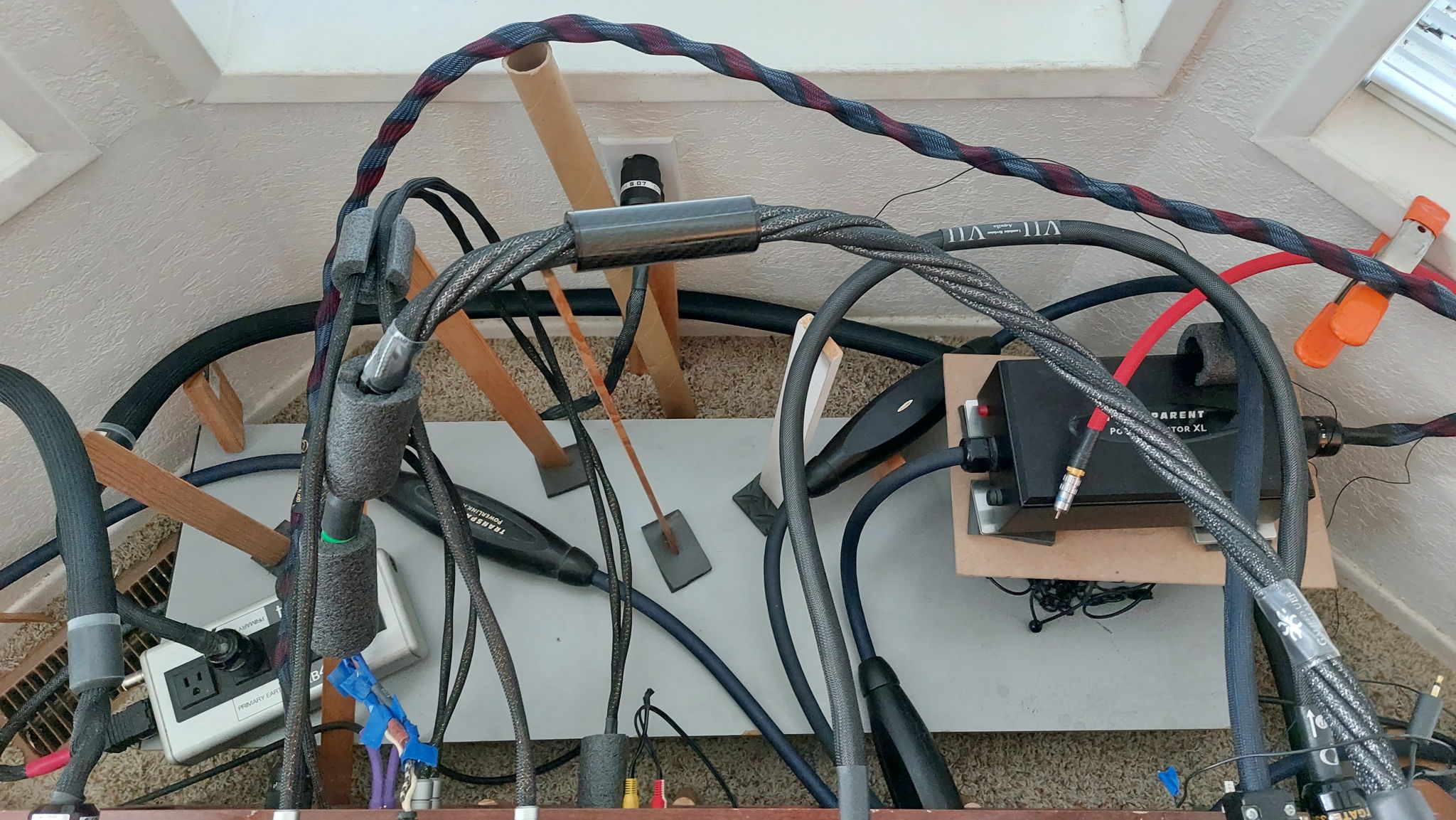

    • Behind equipment rack Assorted Cabling
    A rat's nest where the cabling has been separated and supported.
