Description

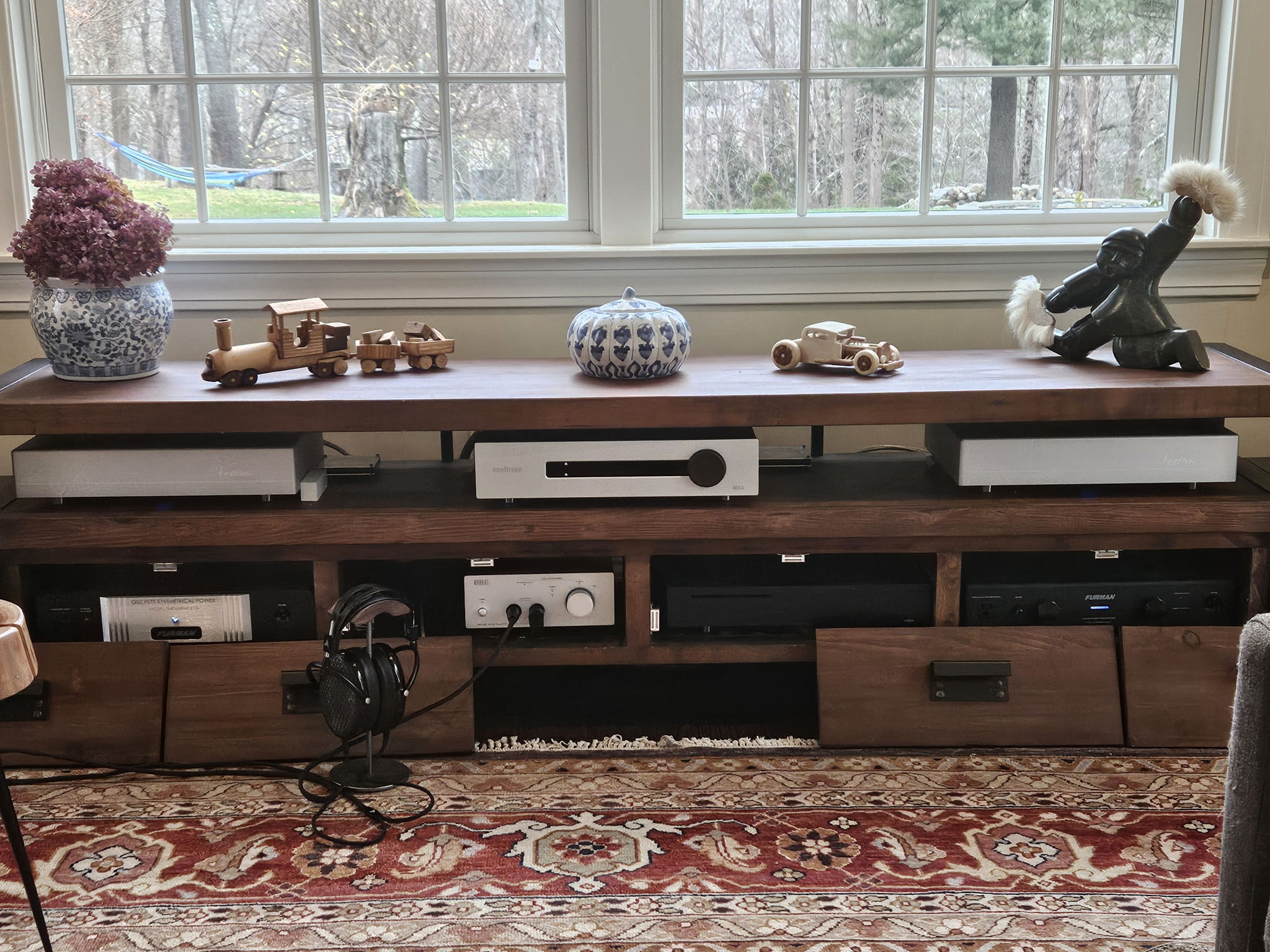

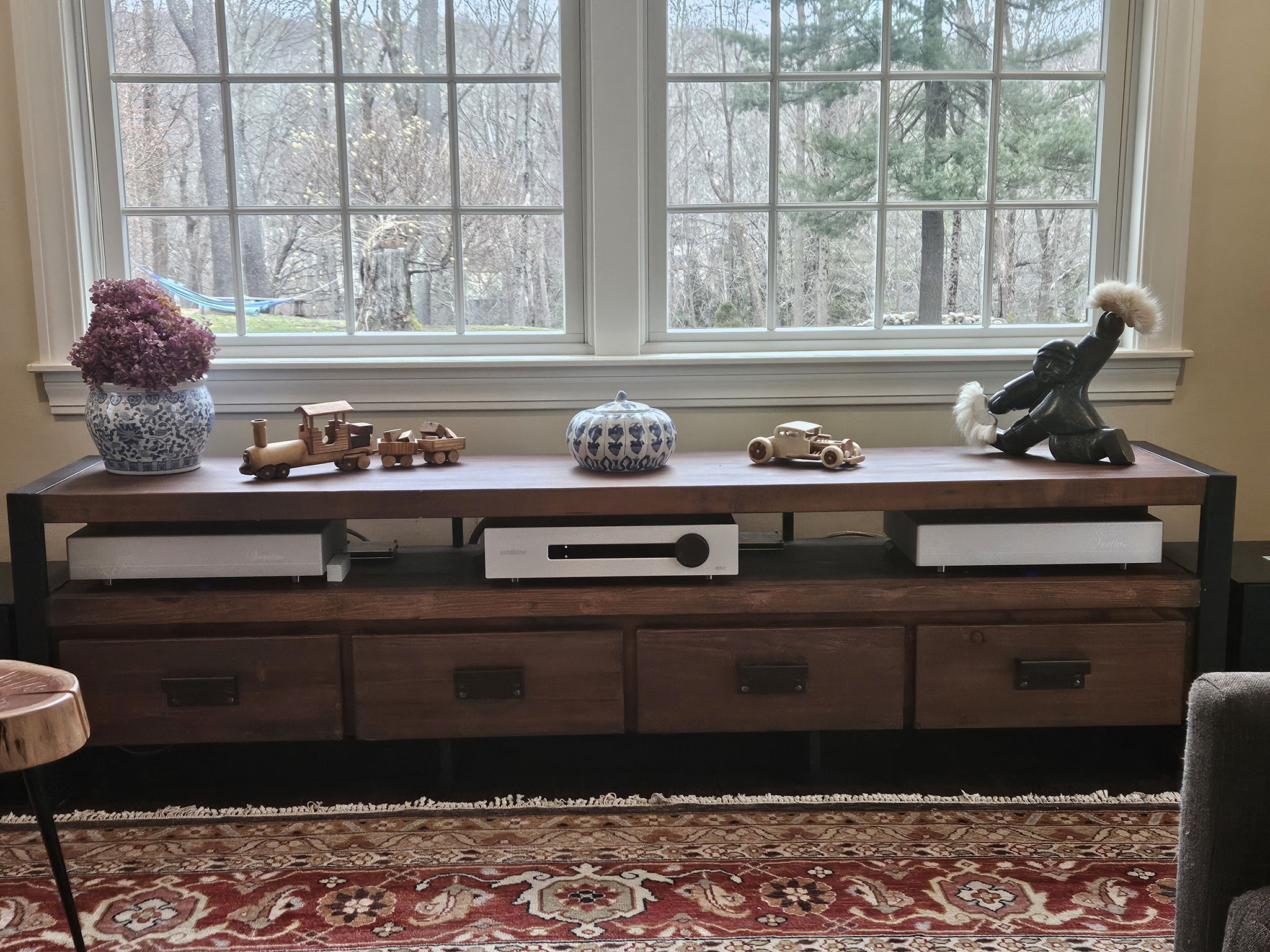

Visually innocuous, wife ignored, great sounding Roon/Qobuz system that consists of:

  • a Bonn-8 ethernet switch from Fios (optical) modem (both powered by an LPS) through 20 meters of Supra Cat 8 ethernet cables to
  • an Innuous Zenith Mk.3 core/server/ripper connected via a Veritas Mirus ethernet RJ-45 cable to
  • a Meitner MA3i DAC/Pre Amp which is connected via Veritas Audio Argentum XLR cables to
  • Merrill Audio Veritas mono-bloc amplifiers, which are then bi-wired via Vogue Audio Sliver Strand Ultra (LF) & Transparent Gen.5 Super speaker cables (HF) to
  • a pair of graphite Sonus faber Olympica III speakers;
  • two Rel T/9x subwoofers are fed from the monoblocs w/ Van Alstine neutrix connectors.

All components are powered by separate 20-amp lines that are run on separate circuits with separate breakers to Hubbell IG 5362 20-amp outlets behind the system.  The front-end digital components and peripherals are connected to a Furman elite 15 PFi power conditioner plugged into the first 20-amp circuit, and the Pre/DAC and monoblocs are connected to the Furman IT-Reference 15i (isolation transformer) plugged into the second 20-amp circuit. The DAC/Pre and Zenith are powered by Zafino Fina PC's, and the monoblocs and one power conditioner are powered by CPT Valiant Diamond PC's.

The Zenith, monoblocs and Pre/DAC are on Stillpoint ultra minis.  The Speakers are on IsoAcoustic Gaia II's. The subwoofers are on SVS isolation pucks.  The Audeze Carbon headphones, Stax 700T energizer and Stax 15' flat ribbon XLR extension cord are kept on hand for music that the family finds difficult to appreciate.

The Fios G1100 router and Bonn-8 ethernet switch are powered by a custom LPSU  to cut the noise associated with stock wall warts and are run through a 20m dedicated Supra Cat-8 to the Zenith and through a Veritas Mirux RJ-45 from the Zenith to the MA3i Pre/Dac.
Read more...

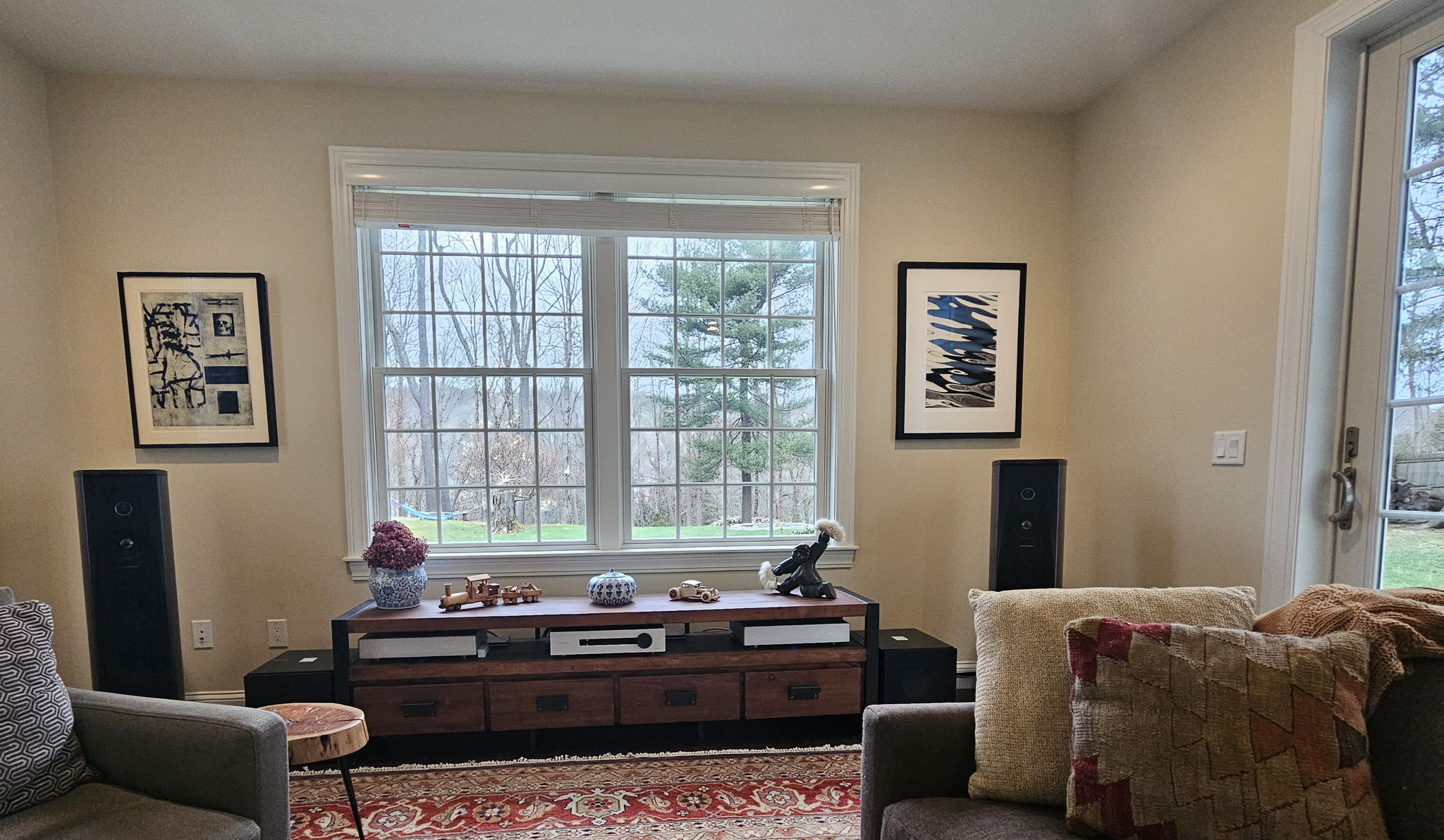

Room Details

Dimensions: 25’ × 16’  Large
Ceiling: 10’

Components Toggle details

    • Innuous Zenith Mk.3 1tb
    Streamer, Server, Ripper -- feeds Main & Office systems
    • Meitner MA3i
    Pre-Amp/DAC  (fully balanced)
    • UpTone Audio Ether-Regen (Removed - not needed for MA3i)
    between wall jack and streamer -- added two heatsink/cooling fins from unused graphics cards to the ER
    • After Dark Emperor Signature Master Clock (Removed - not needed for MA3i)
    to EtherRegen
    • Merrill Audio Veritas
    Mono-blocks
    • Sonus faber Olympica III
    (bi-wired)
    • Rel T/9x x2
    Pair of these to supplement the SF's
    • Transparent Audio Gen.5, Super
    speaker cable (2 meters) to HF posts
    • Vogue Audio Silver Strand Ultra
    speaker cable (1.5 meters) to LF posts
     per VA, a single wire (40% copper/ 60% silver) made of an OCC copper core, and an
     OCC 7n Silver sheath.
    • Furman Elite 15 PFi
    for digital components
    • Furman IT-Reference 15i
    for monoblocs and pre-amp/dac
    • After Dark LPSU X 2 (Removed - not need for MA3i)
    powers Clock and EtherRegen
    • Core Power Technologies USBe Perfect (Removed - not needed for MA3i)
    USB filter between streamer and DAC
    • Veritas Audio Argentum XLR x2 (1.5 mtr - XLR)
    MA3i pre/dac to Veritas mono-blocks
    • Silnote Audio Morpheus Reference Series II BNC Cable (Removed not needed for MA3i)
    Clock to EtherRegen
    • Veritas Autio Mirus (RJ-45)
    From Zenith to MA3i
    • Zafino Fina Power Cord x2
    for the MA3i & the Zenith MK3
    • Acoustic Zen Karatoka PC, 1.5m
    from wall to Furman IT-Ref 15i
    • Core Power Technologies (CPT ) Valiant Diamond PC x3
    Three of these, one for each monobloc and one for the front end power conditioner.
    • Audio Quest NRG-Z3 PC (Removed -- no clock or ER)
    for AD LPS
    • Bonn-8 Network Switch
    between Modem & 45' distant EtherRegen powered by custom LPS
    • Custom LPSU
    to Fios Modem & Bonn-8 Network Switch
    • AudioQuest NRG-Y3 PC
    for one Sub and a TWL pc for the 2nd Rel
    • Hubbell IG 5362
    One outlet for each of the two dedicated 20amp lines from the breaker
    • Audeze Carbon
    Electrostatic Headphones
    • Stax 700T
    Tube electrostatic headphone energizer/amp.

Comments 7

Sign in to comment
Owner
New pictures added.

tump350

Owner
Need a new picture of the new components.  Same basic setup though.

tump350

Owner
Thanks! the room is relaxing and the music sounds great.  Too loud for my wife though.  I just leave the Bel Canto and Innuous on 24/7 so music can be selected easily through Roon on the Tablet and the volume controlled with the BC remote (the BC DAC/pre does not have a 12v trigger).  BC recommends that their components be left on; right now, I'm not sure about the Innuous, but since it's basically a computer, I don't think it will be damaged.  Everything is run through the power conditioner though.

tump350

I love small chassis electronics and simple systems that lets the room invite comfort, enjoyment and good tunes.  You nailed it!

I have always been intrigued by Bel Canto....enjoy!

linnie01

Elegant innocuous and bet it sounds great, my wife would be jealous (assuming it's easy to turn on and make music).  I am too.

thosb

Way to fit the system in so unobtrusively and a nice relaxing looking space too.

jond

Nice, enjoy the music.

skypunk
