Description

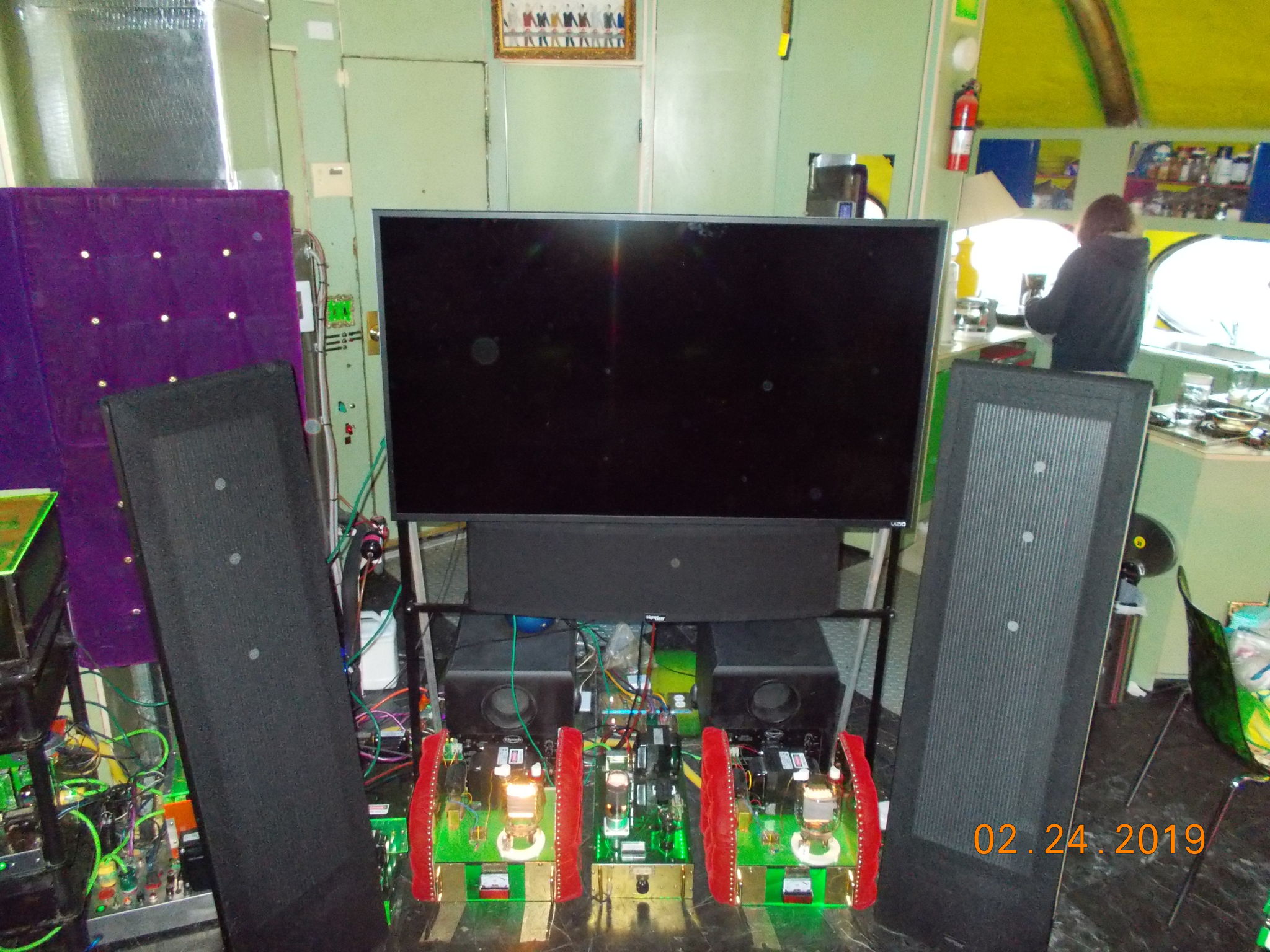

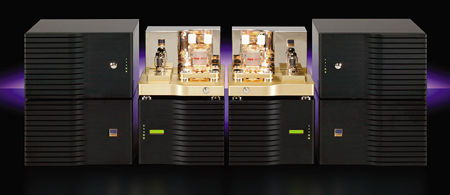

My system evolved over decades. I began building single-ended-triode amplifiers before the turn of the century and learned more about it over the years. In 2005, having two MS degrees I enrolled in the new interdisciplinary applied mathematics and mathematical physics PhD program in Delaware State University and graduated in 2009. (Feel free to check DESU if you wish to verify my diploma.) For years I thought it would be fun to build an 833-A amplifier and when I discovered how much I preferred planar speakers to cones in the box I had a dilemma. The Magnepan speakers require more power than the 245 SET amplifiers could give, but I like the romantic sound of SET. I had read of the WAVAC 833-A stereo which costs $350,000, more than I could afford. I read some things about how it was designed and even if I could afford it, I would rather have the 833-A grids driven by the sweeter sounding 245's than the KT 88's the VAVAC uses and even though the WAVAC uses modest voltage for their 833-A's the way I do, they add positive grid bias to get more power out of it and by running it harder than I need to run my design they must have a shorter tube life. The 833-A at zero grid bias puts out more than enough power for the Magnepan 0.7's in my small house. Because little is demanded of this mighty tube, it is never pushed hard enough to suffer enough distortion to approach anything I can hear.
I did not include the rectangular solid dimensions of my listening room because I live in an oblate spheroid shape house which is 26 feet in diameter.
My 833-A amplifiers including making new 245 drivers out of my existing amplifiers cost less than $2000 to build and even if I coveted the WAVAC, which does not have the Jules Verne look to it I gave mine, that I got what I prefer over the WAVAC at a fraction of a percent of the price.
Read more...

Components Toggle details

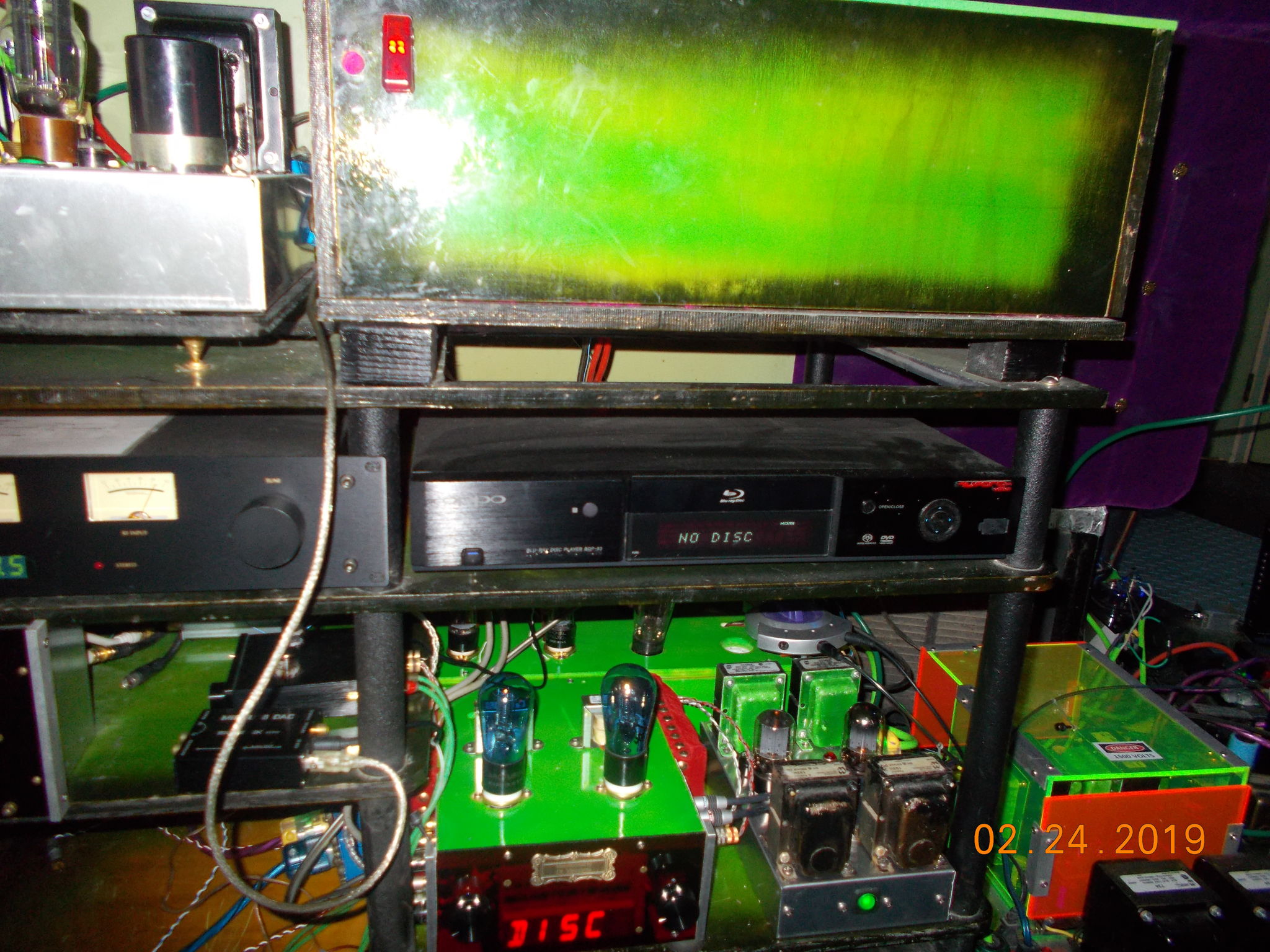

    • designed and built by Dr. Vincelette Line Stage Preamplifier

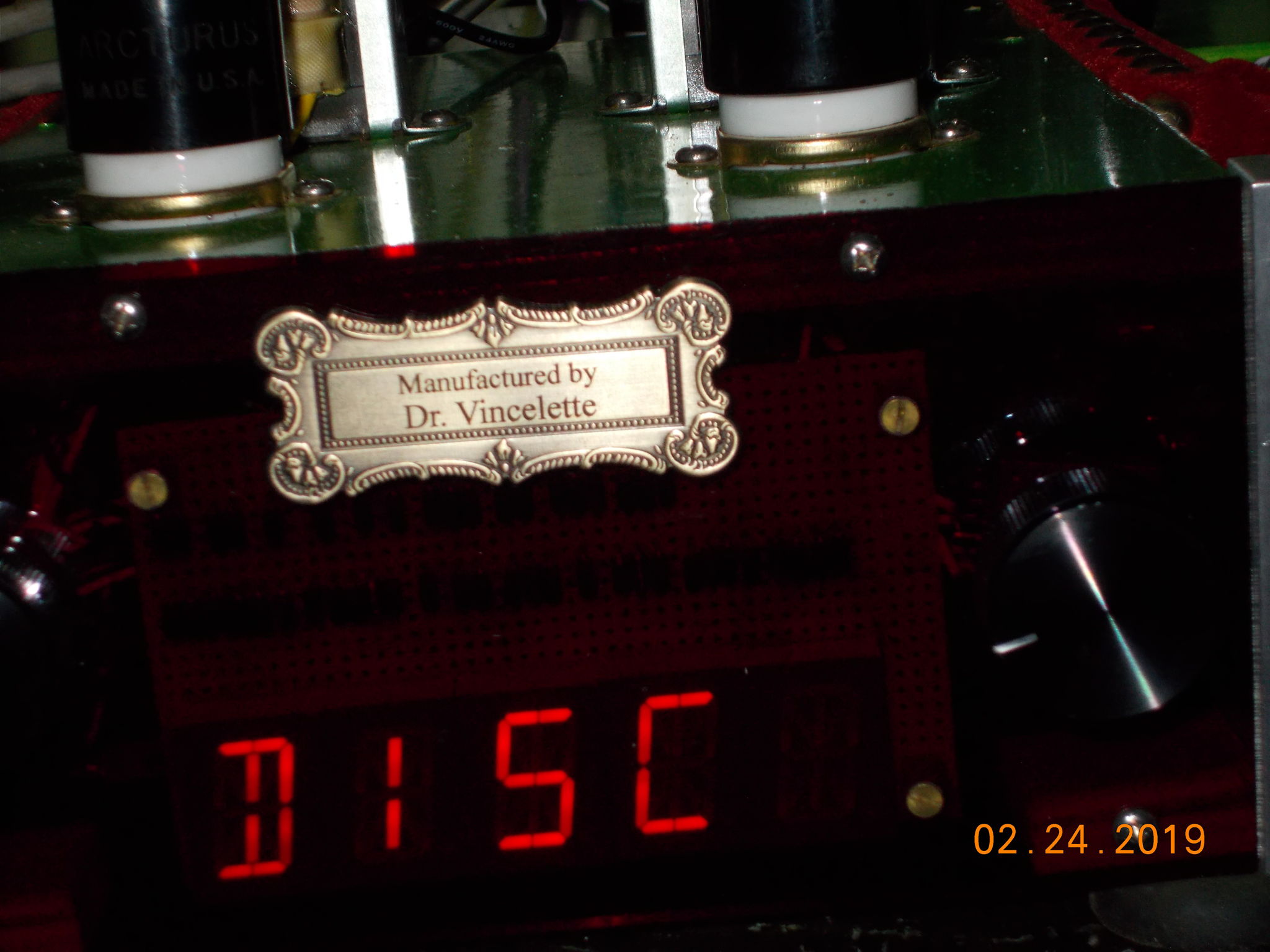

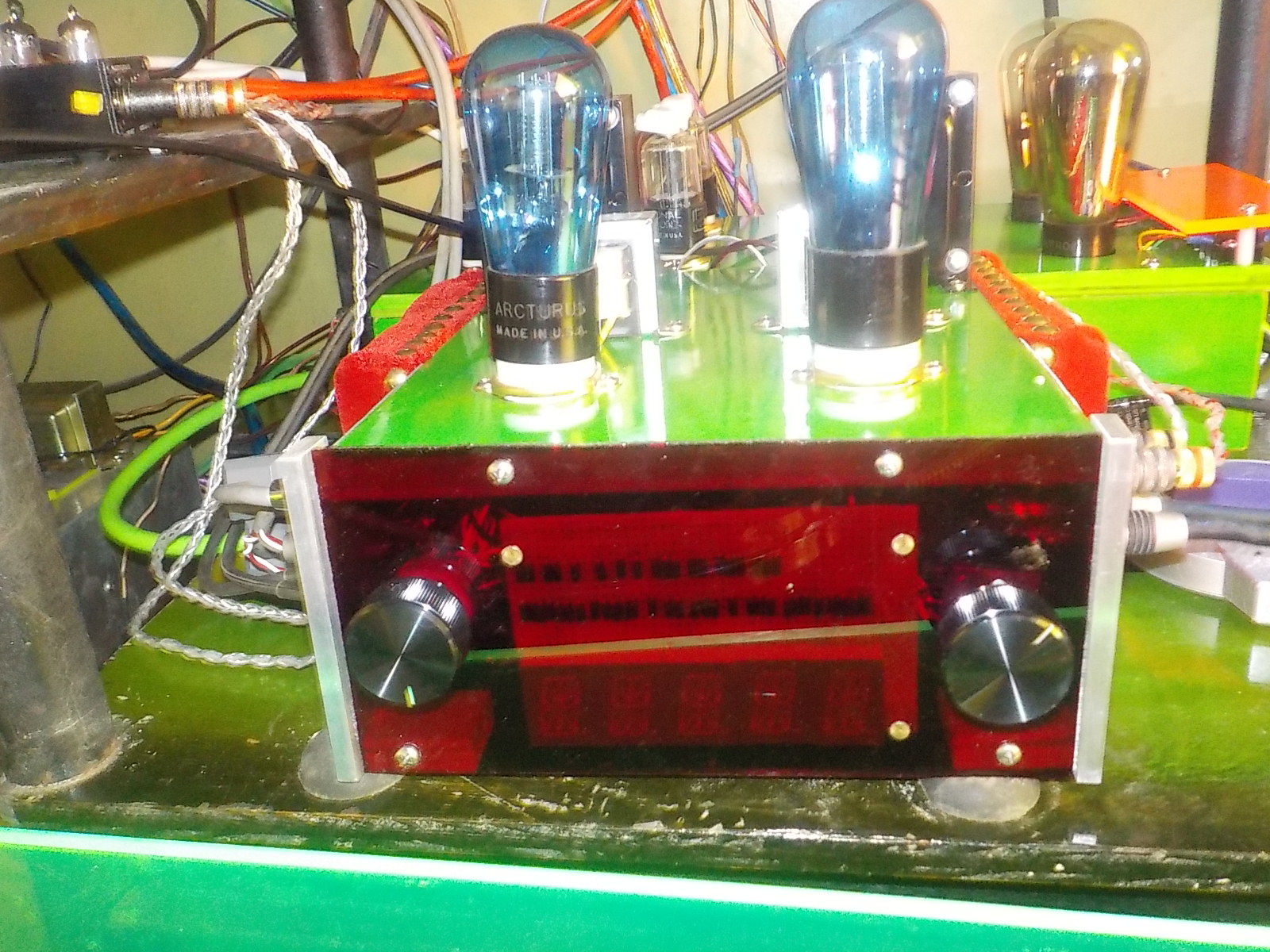

    A dual-mono SET using Arcturus blue glass 327 triodes which need grounded DC to heat the indirectly heated cathodes to run silently. Of the many configurations I tested: transformer both parallel feed and conventional, choke loading, the resistor capacitor input sounded by far the best and an Alps volume control 100k sounded far better than a selector switch of many pairs of resistors. The power supply is in a separate chassis.
    • Designed and built by Dr. Vincelette Intermediate stage of amplification

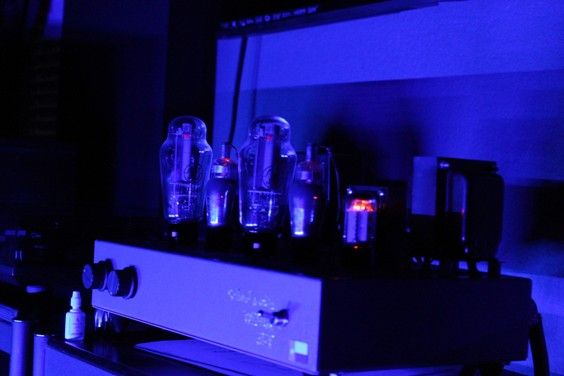

    From the preamplifier the signal enters a choke loaded mu-follower consisting of two 2c22 triodes which directly couple to the grids of 245 globe triodes which have the most romantic sound when tested directly on high sensitivity speakers of the SET used triodes I tried. The 245's output is transformer coupled to the grids of the final stage, the 833-A radio station transmitter tube grids. The 245 intermediate stages are dual mono amplifiers powered by dual mono power supplies. In this stage the use of center tapped AC to heat the 245 triodes makes no hum in the loudspeakers. The 2c22's made no hum with AC to heat their cathodes either, unlike the 27's in my preamplifier.
    • The final stage of amplification, my magnum opus The final amplifier stage

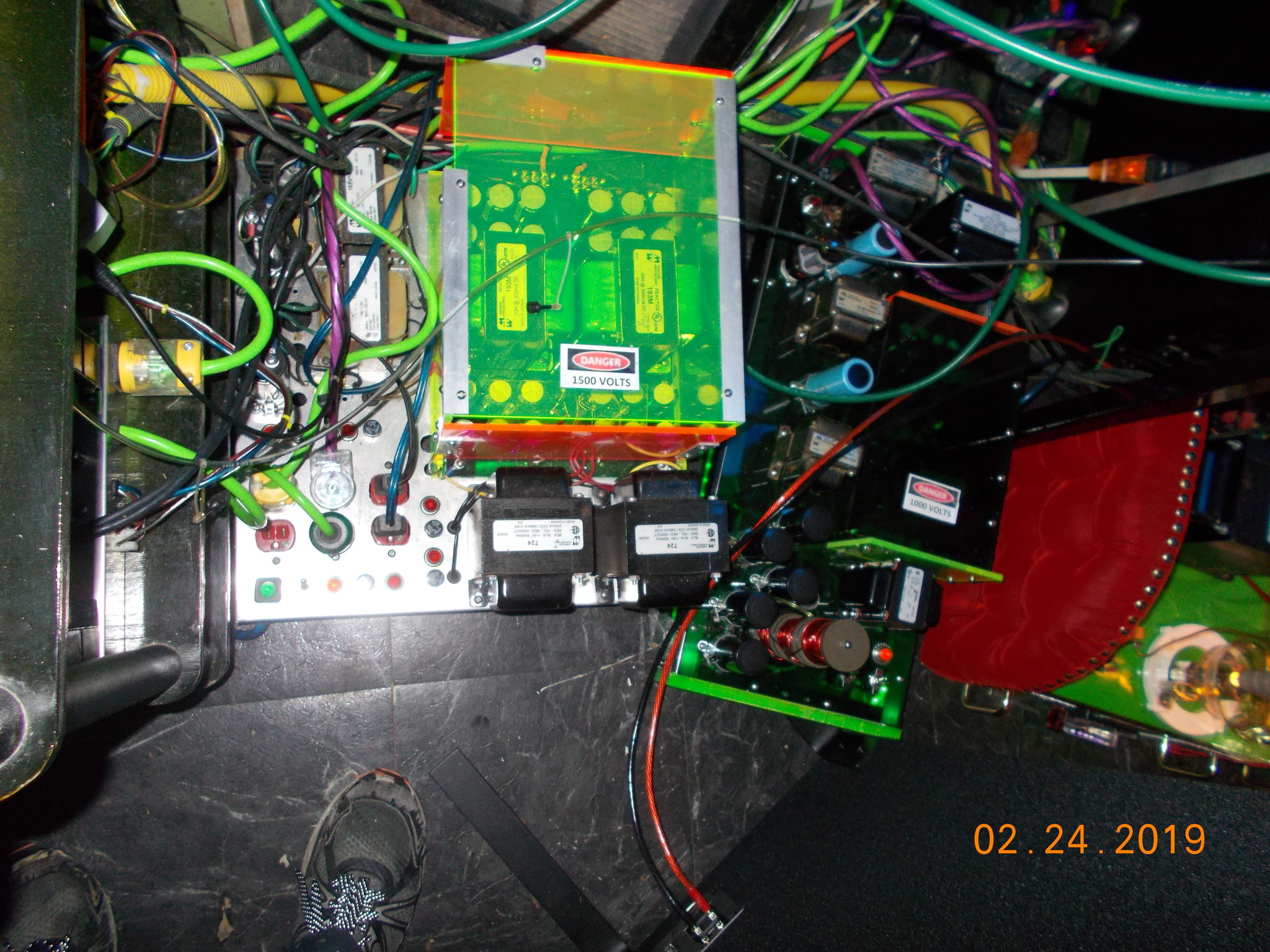

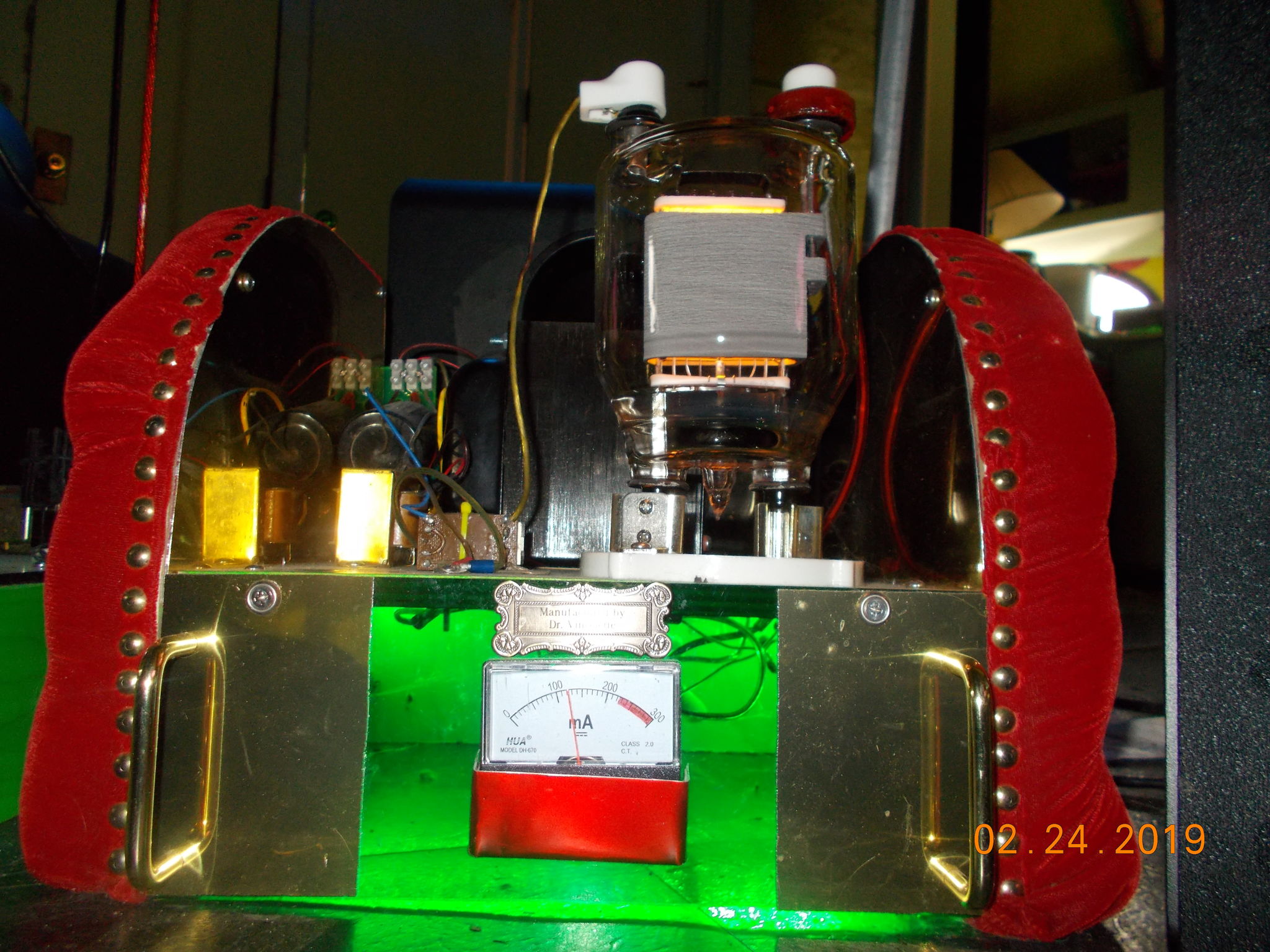

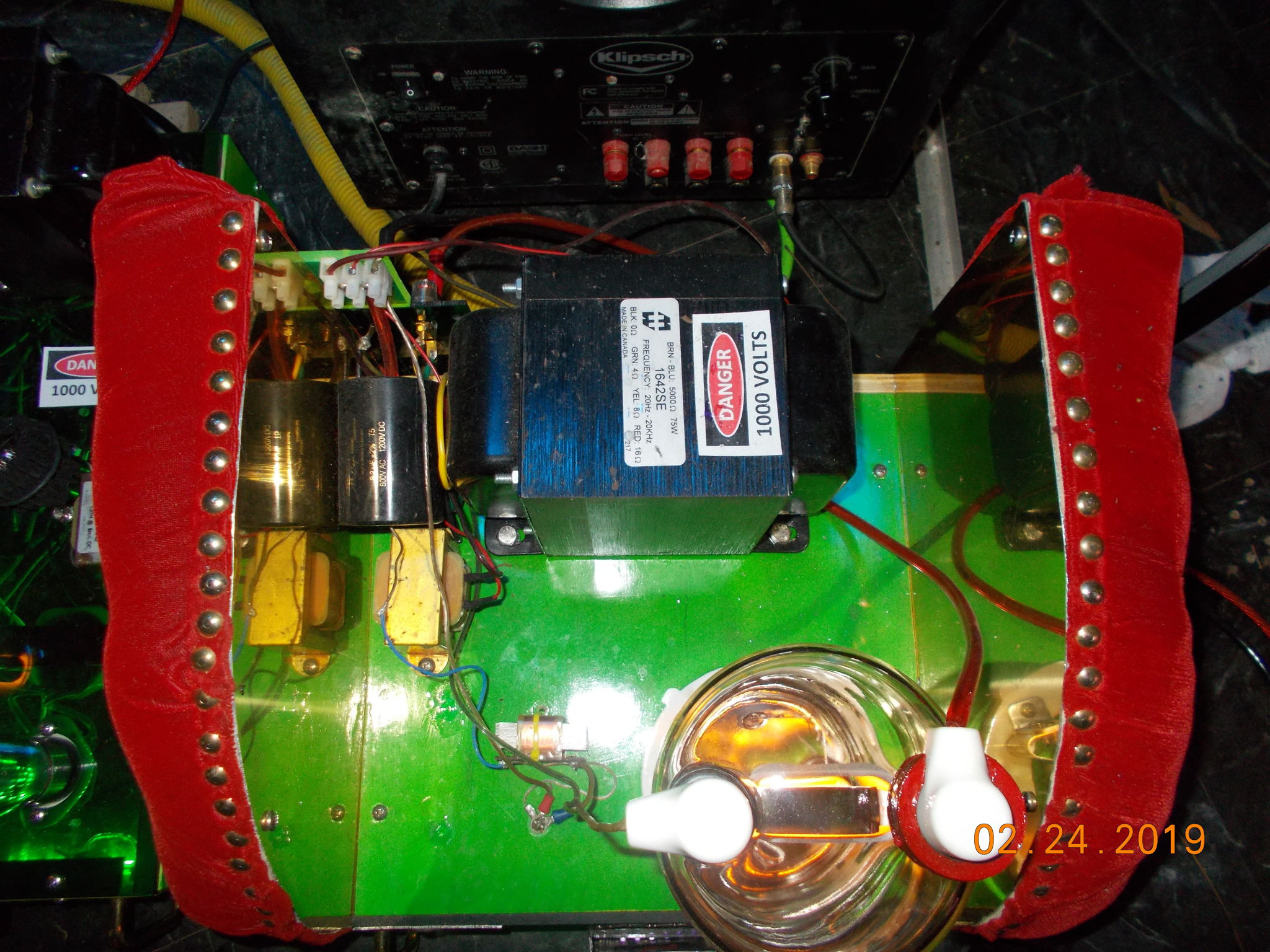

    This is the 833-A stage powered by dual mono 1KV plate supply through an off-the-shelf Hammond 1642SE transformer which is rated at 300 ma while the 833-A only draws 120 ma for no magnetic core saturation. The transformer frame is grounded for sarfety even though it is rated to contain 4kV. High voltage wires are threaded through additional plastic tubes for added safety.
    The 833-A runs at zero grid bias Voltage thus eliminating an additional power supply from the signal path. After trying out several transformers, choke-capacitor connections, and a parallel feed coupling transformer I found the Lundahl LL2765 with the 5k side to the 245 output and the 600 Ohm side between 833-A grid and ground sounds better than anything I had hoped for. Even with lesser coupling transformers it sounds better than the solid state amplifier I heard when I auditioned the Magnepan 0.7 speakers I put in my system.
    The cathode of the 833-A is tungsten and will not tolerate any ripple voltage on the 10 Volt 10 Amp heater without buzzing the speakers. The 833-A heater power supplies are filtered with 82,000 microfarads of the 50 Amp rated rectifiers then through 0.1 Ohm 25 Watt resistors and finally through "digital" automotive 4.5 Farad capacitors which have to be partially pre-charged before turning on the 10 Volt transformers to power the cathode heat. I use a 9 volt DC adapter through 100 Ohms to do this and I calculate that if I leave this pre-charging system on all the time it uses about 3 cents a week worth of electricity.

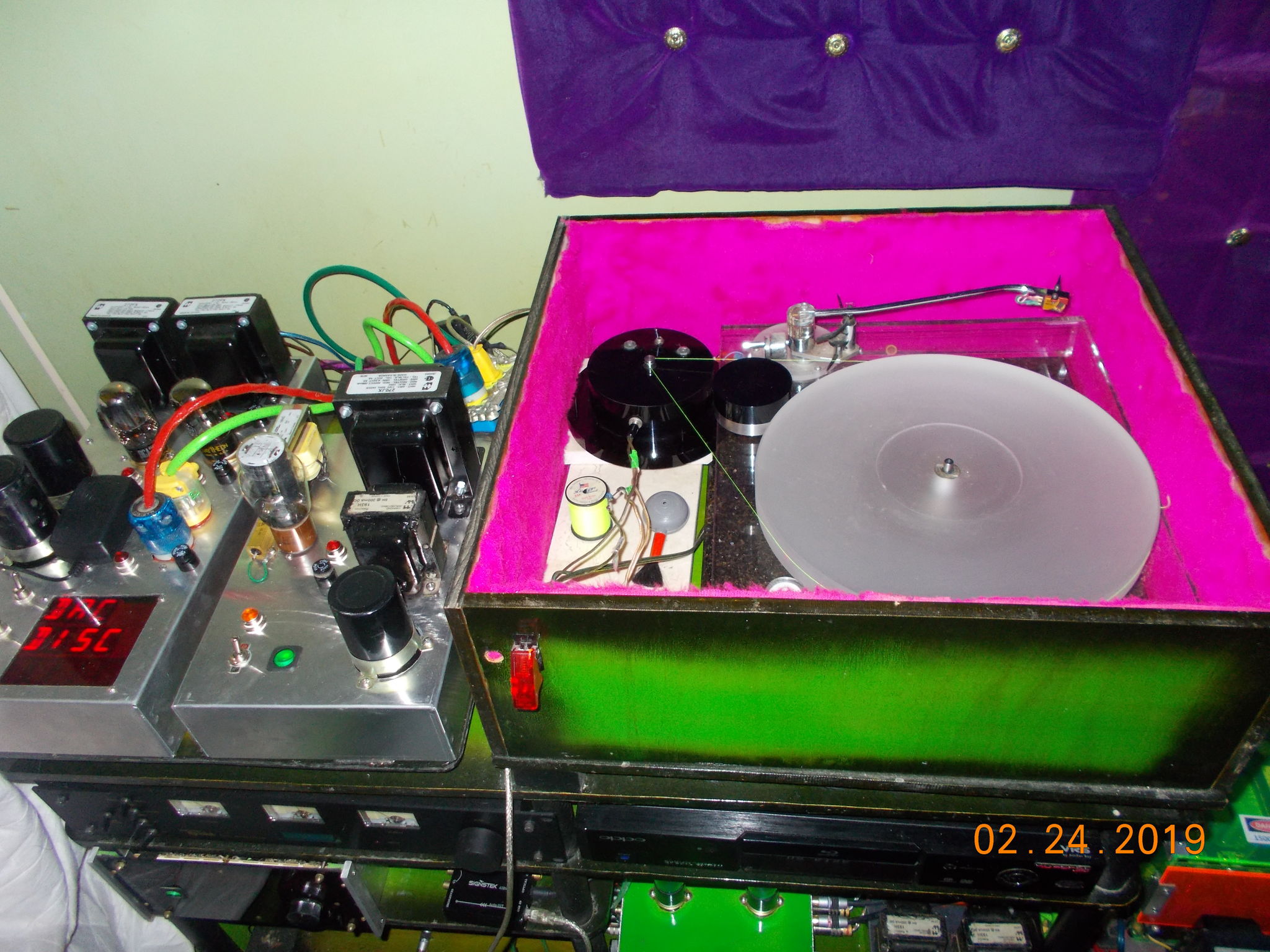

    • Eurokit turntable with a Benz Micro MC cartridge Turntable

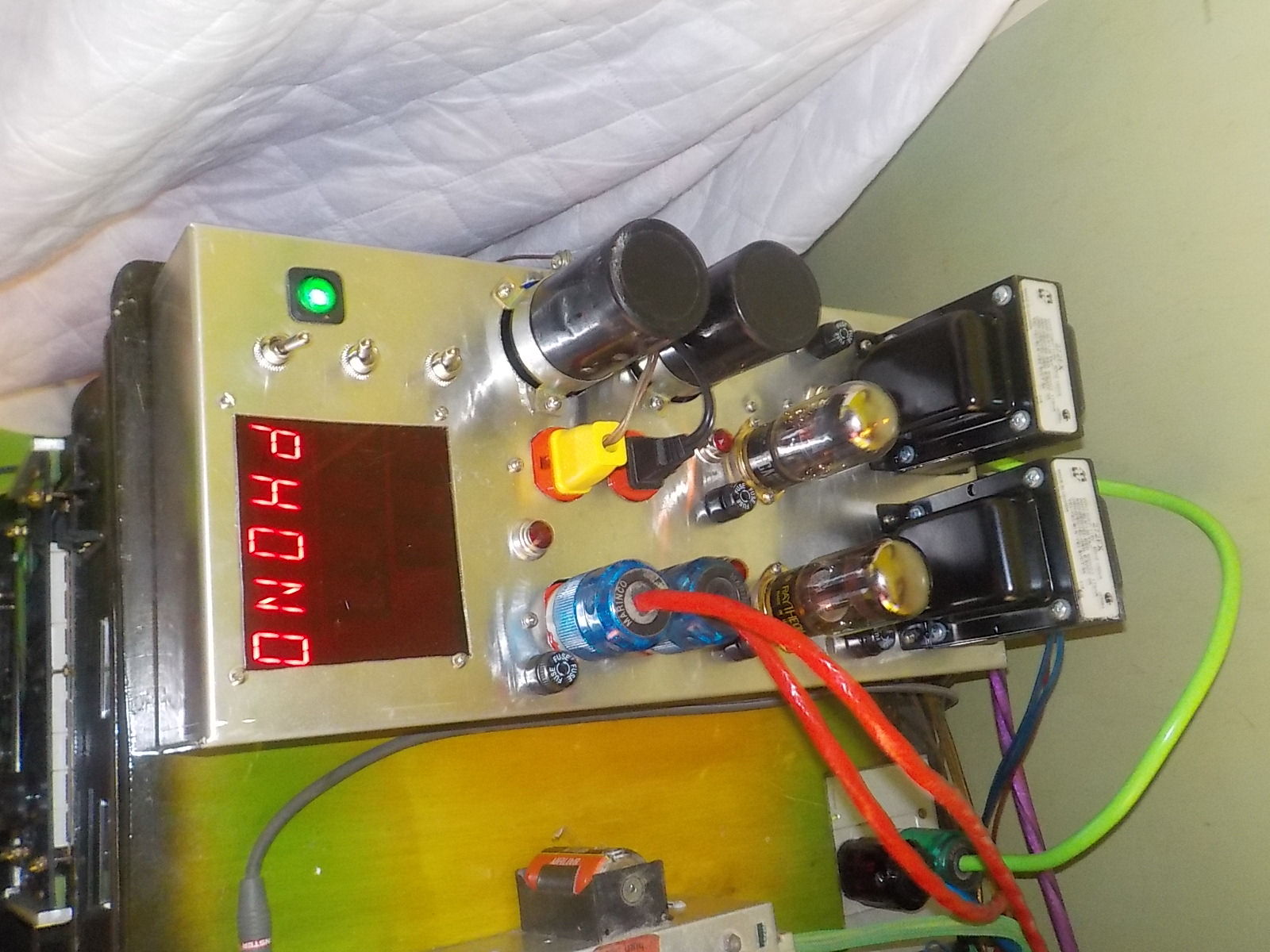

    I am using a Benz Micro MC cartridge and a pair of pentodes for the phono preamp.
    • Oppo Nuforce edition universal player
    I have not gotten a 4k player because I can't afford one which plays SACD 5 channels and because the few operas in 4k do not have HDR.

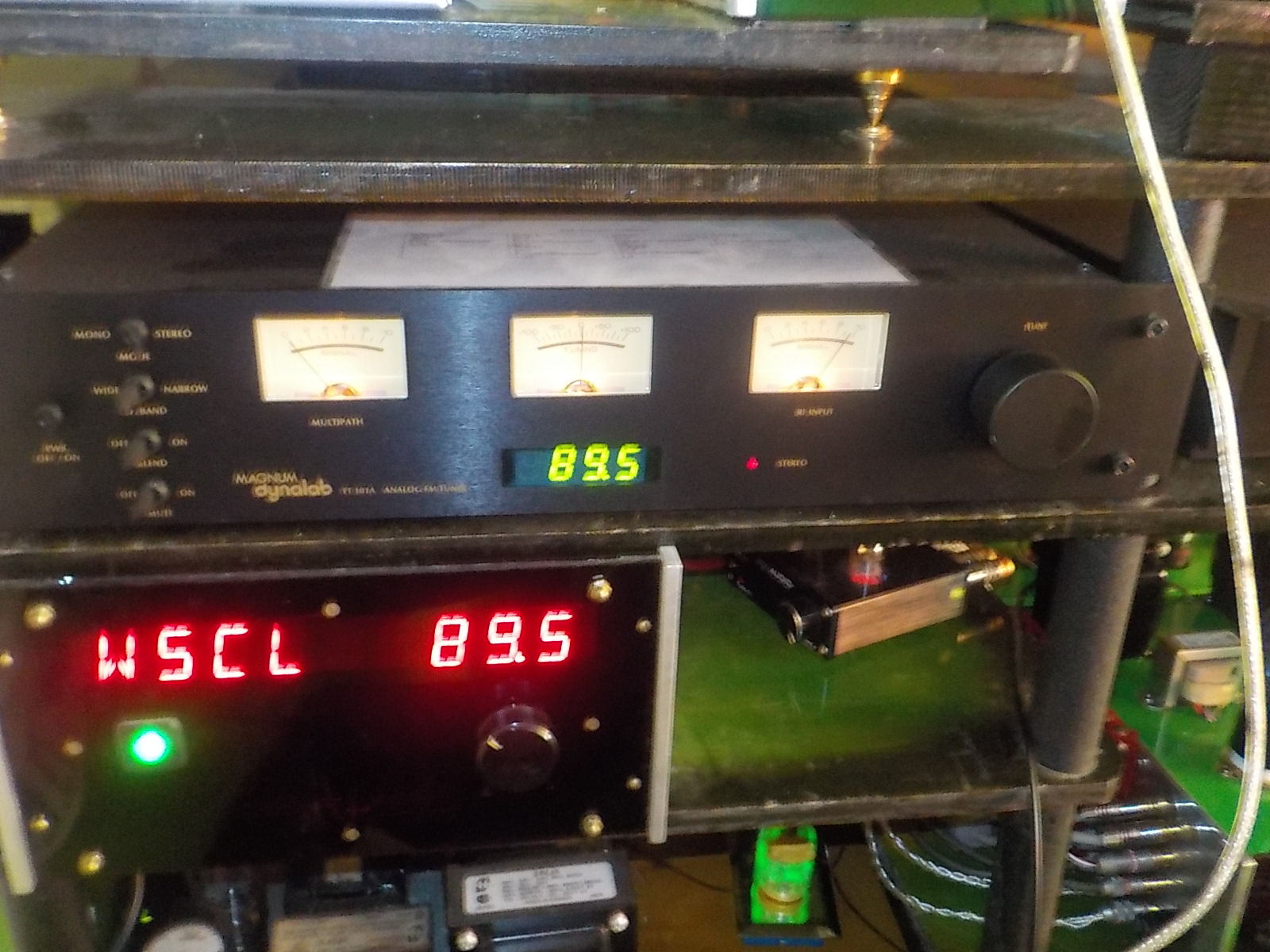

    • Magnum Dynalab FT-101a
    FM tuner with an antenna selector switch to choose one of three antennas on towers each of which points to distant classical music stations with RF preamplifiers on each antenna.
    • MSB Technology MSB Platinum upgraded with buffer, more precision resistor ladders, and upsampling to 384.
    • Designed and built by Dr. Vincelette Center channel amplifier
    SET GM70 driven by 245, the 245 driven by 6SL7 choke loaded mu follower
    • GR Research Surround speakers
    • Designed and built by Dr. Vincelette Surround sound amplifiers
    245 SET amplifiers
