Description

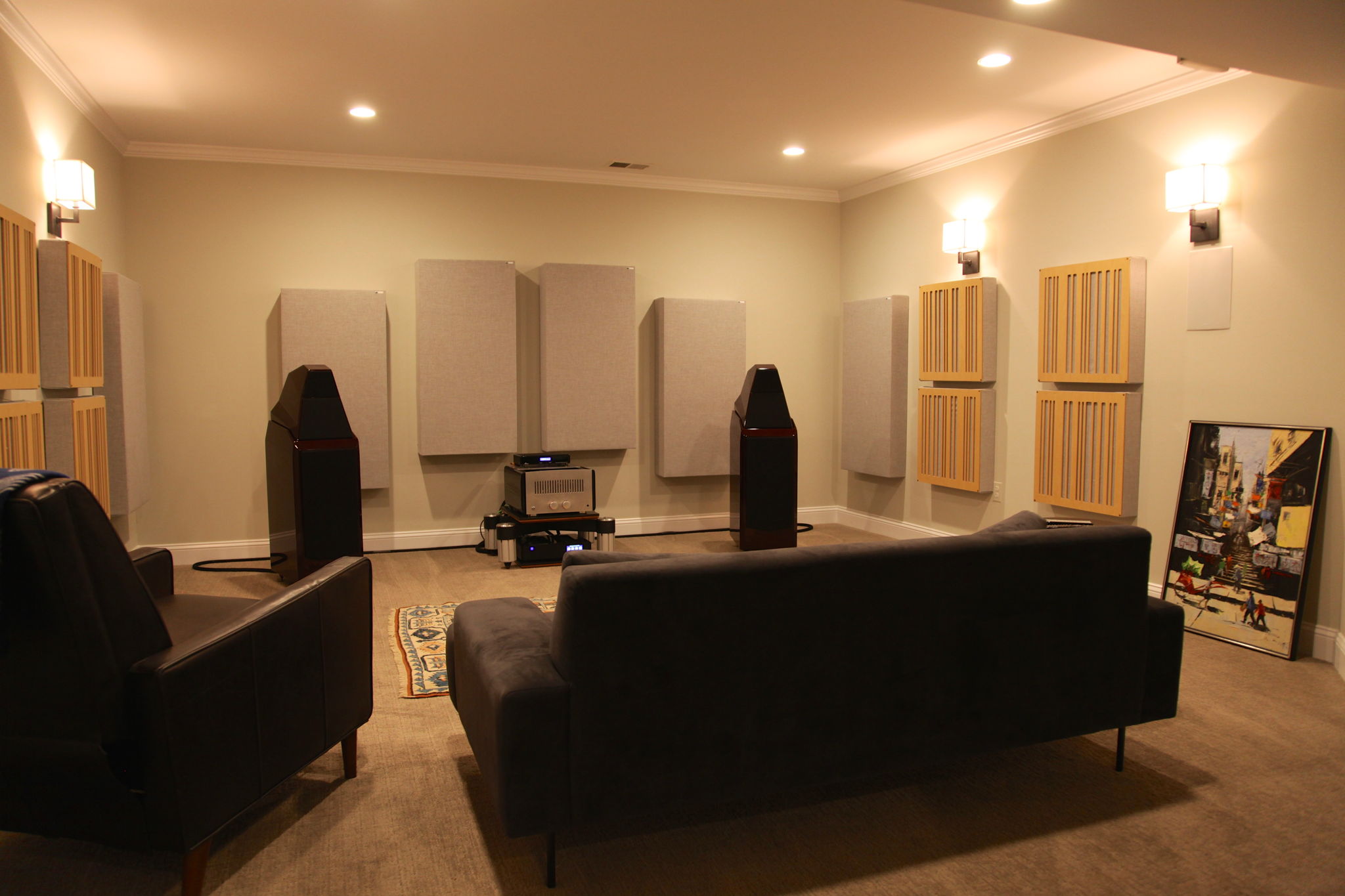

Room approximately 19’ L x 16’ W x 8’10” H.  Back wall has two sets of french doors opening into a larger room.  Walls and ceiling two layers of 5/8” sheet rock with green glue.  Thanks




Read more...

Room Details

Dimensions: 19’ × 16’  Medium
Ceiling: 9’


Components Toggle details

    • Marten Design Parker Trio

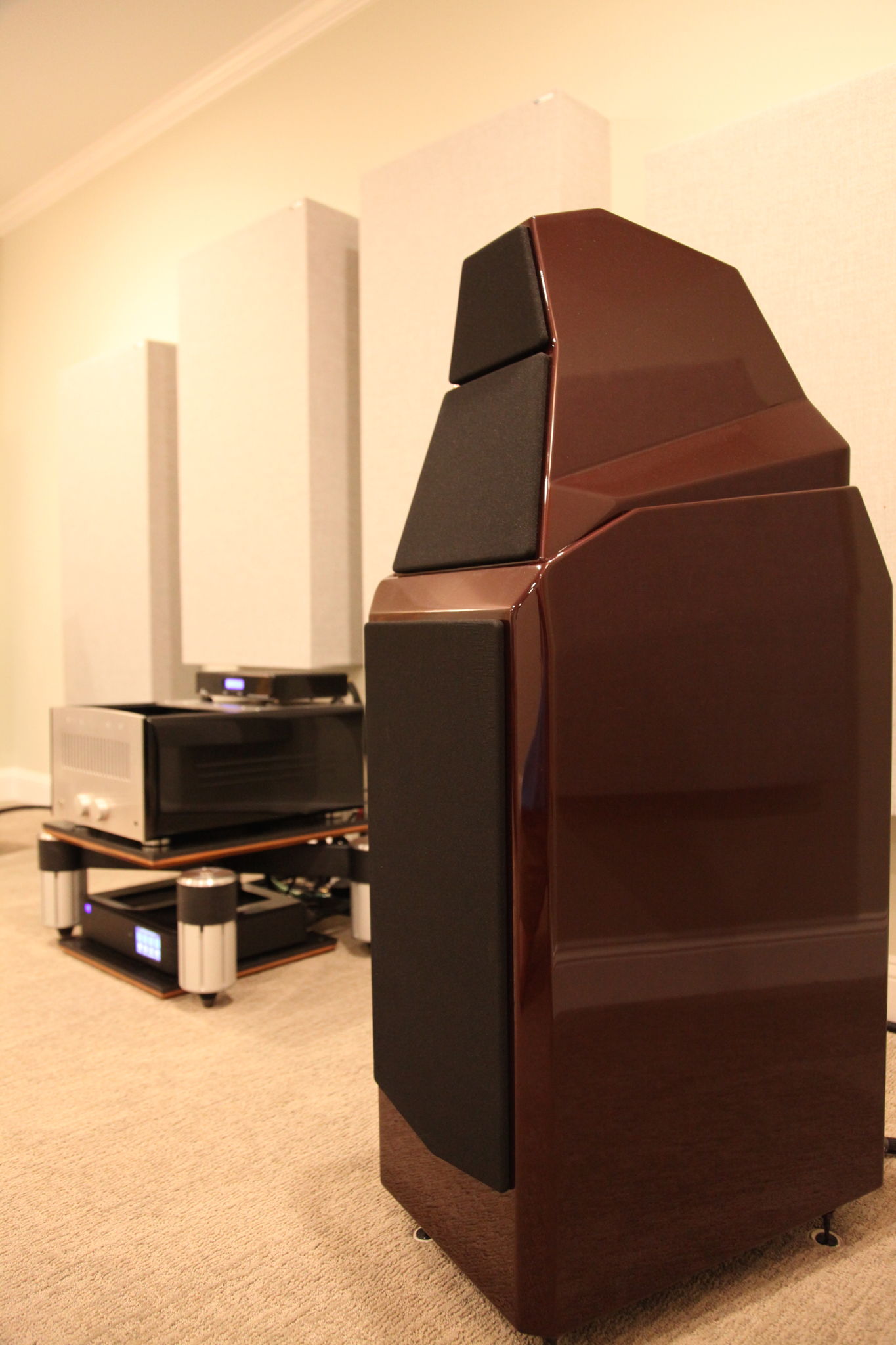

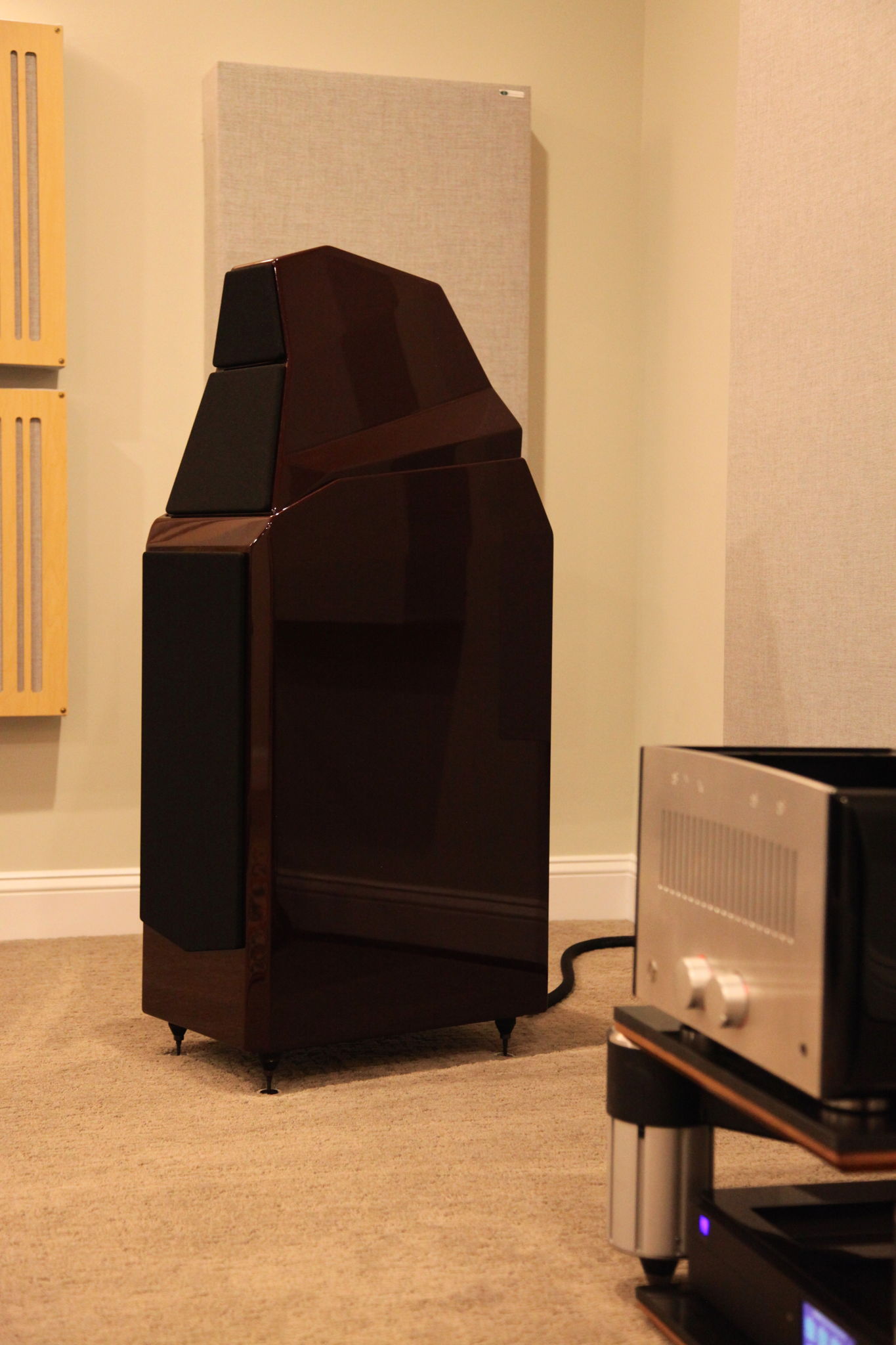

    • Wilson Audio Sasha 2
    Replaced with Marten Parker Trio's

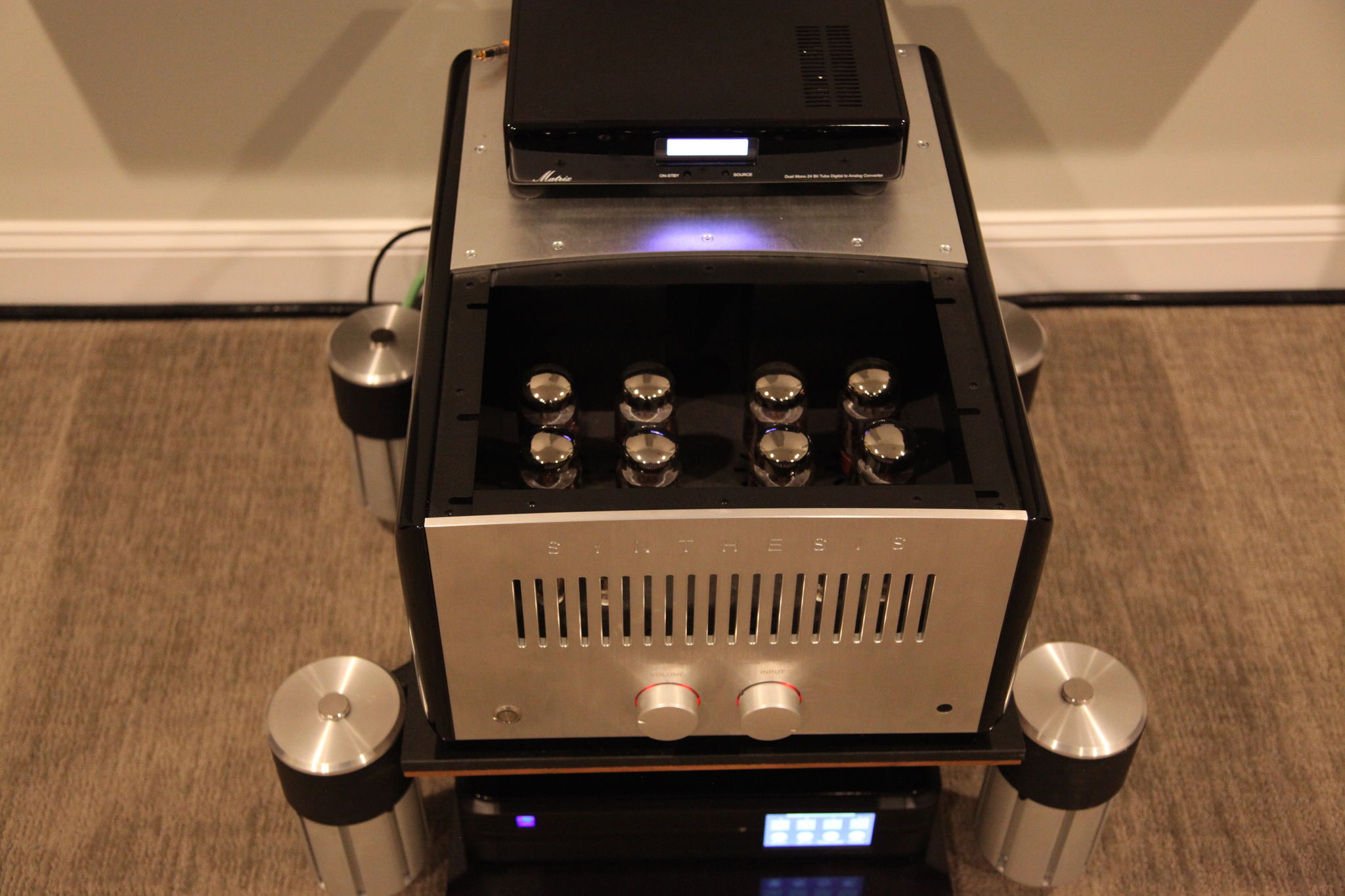

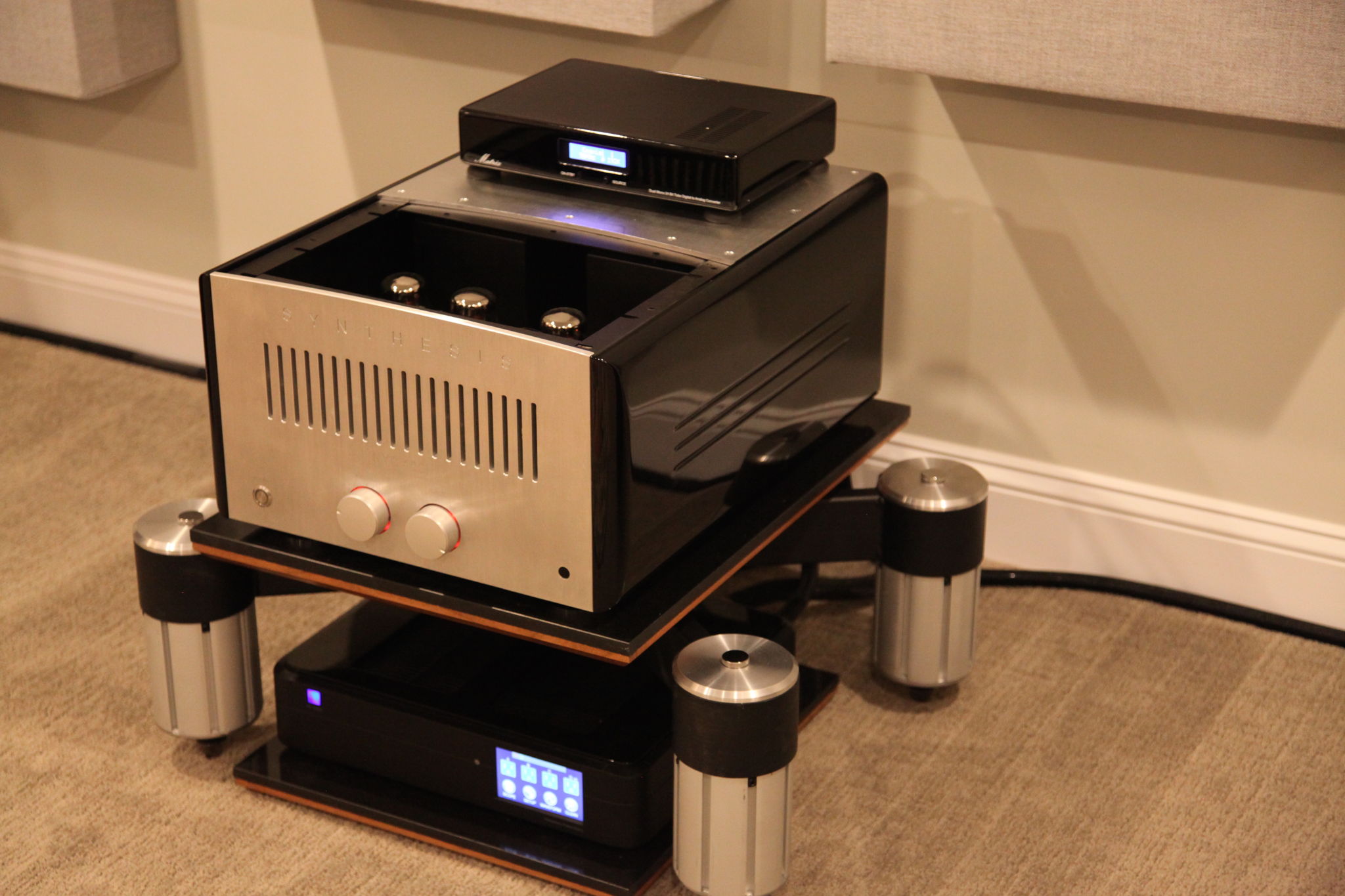

    • Synthesis Art in Music Metropolis NYC 100i - 100 WPC KT66 tube integrated amp

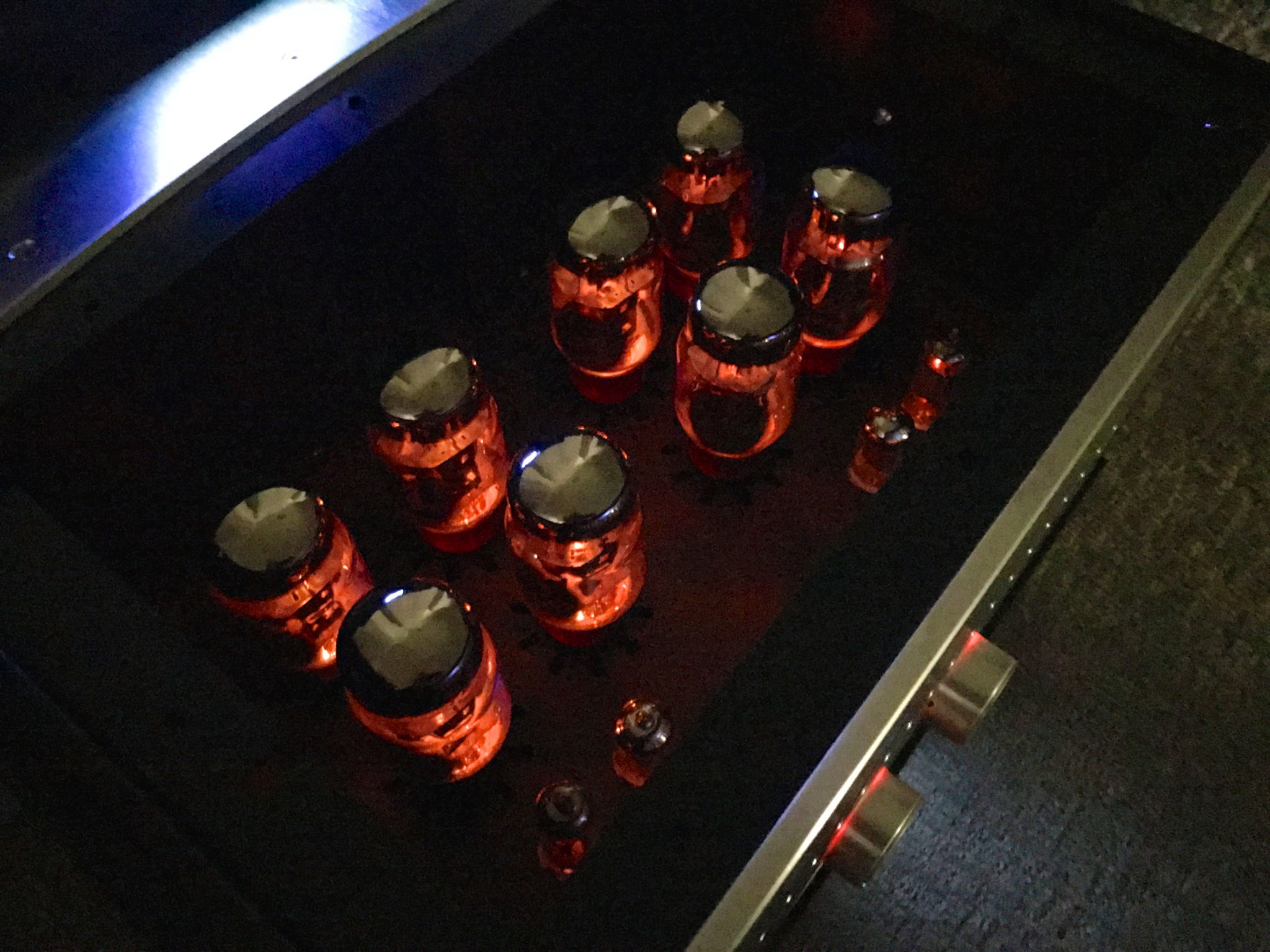

    100 WPC - KT66 tube integrated amp

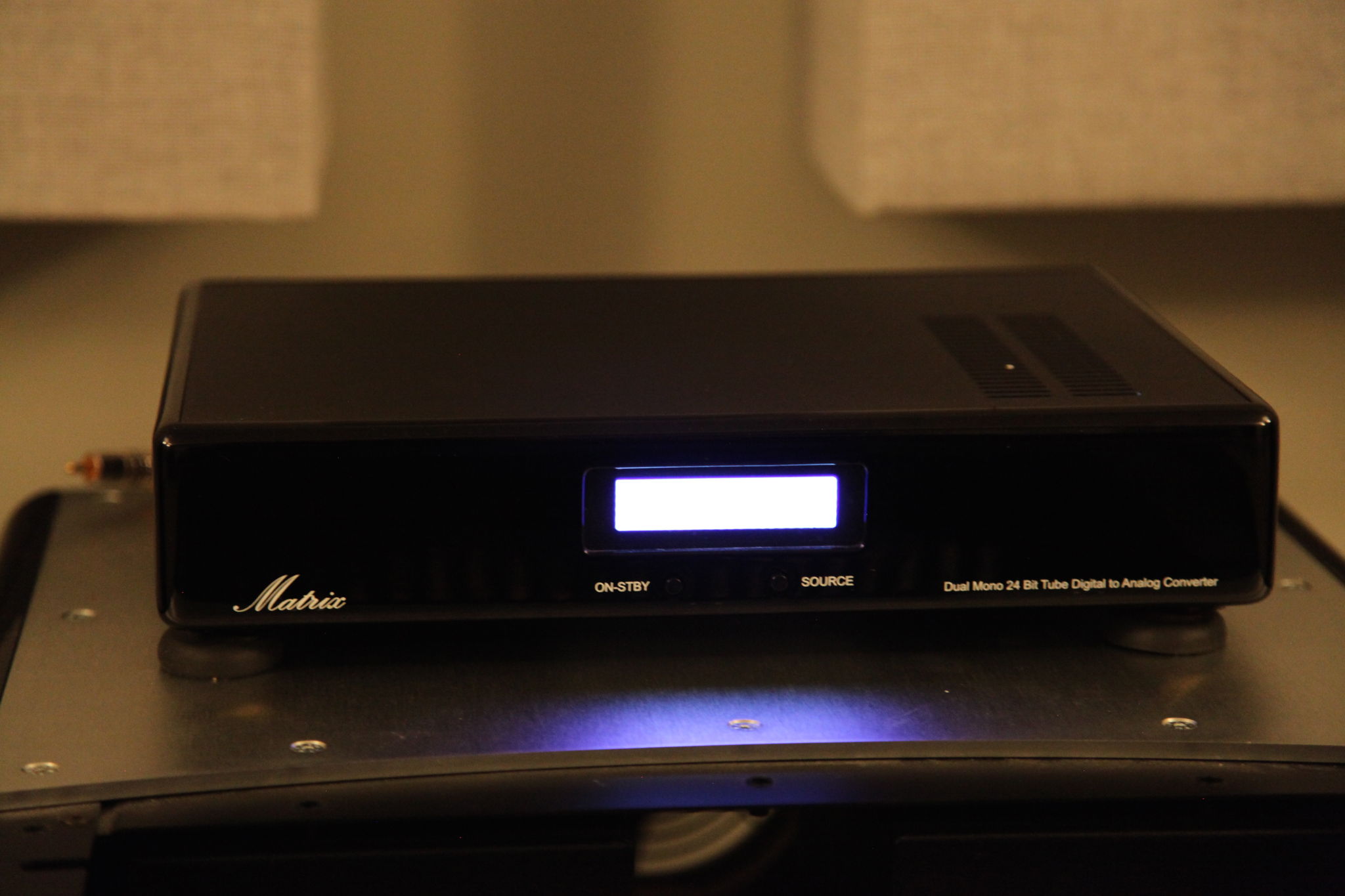

    • Synthesis Art in Music Matrix DAC
    DAC
    • PS Audio P5
    power plant regenerator
    • Sonos Connect
    behind side wall in utility room space
    • Mac Mini
    behind side wall in utility room space

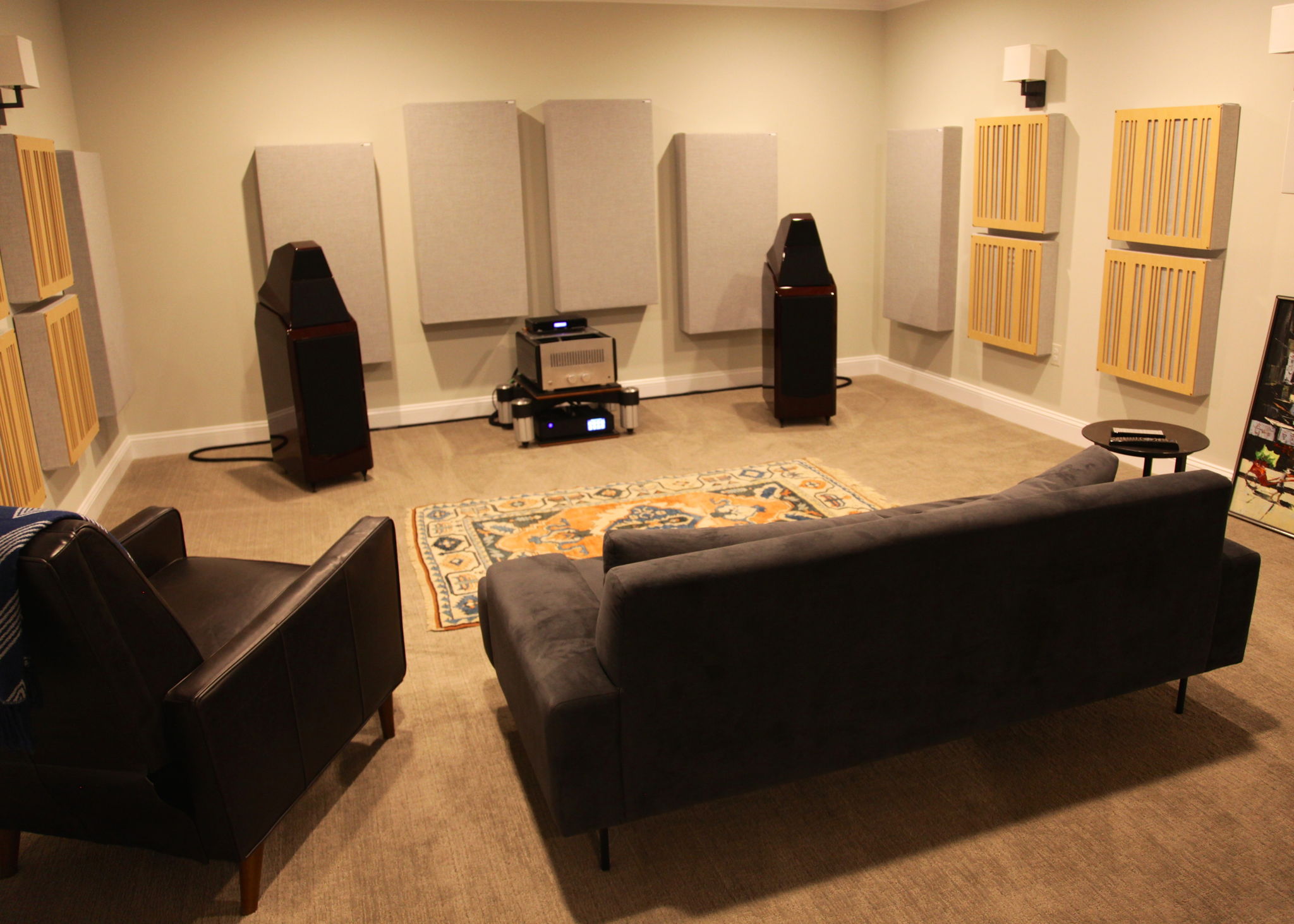

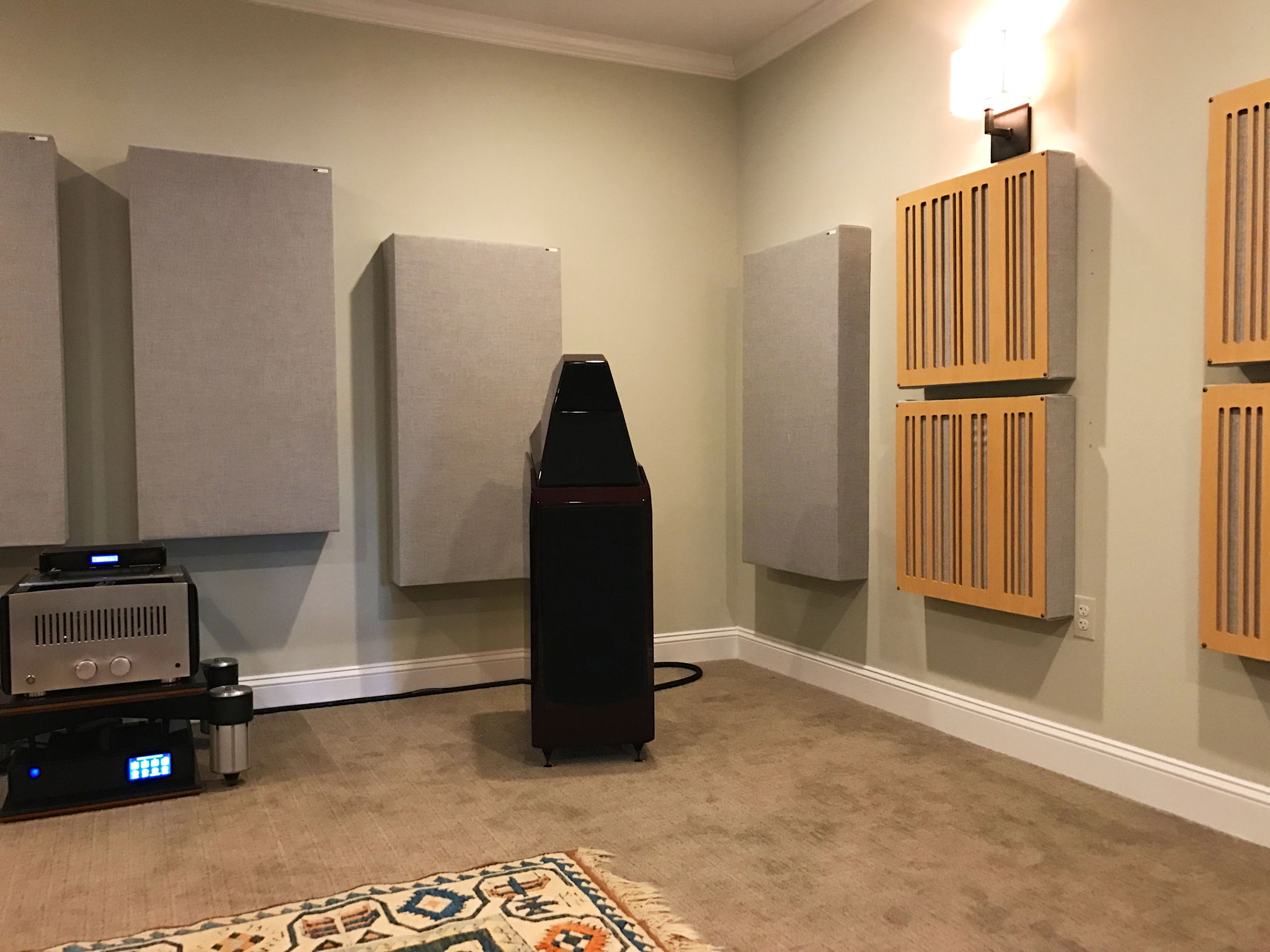

    • GIK Acoustics Monster Bass Traps

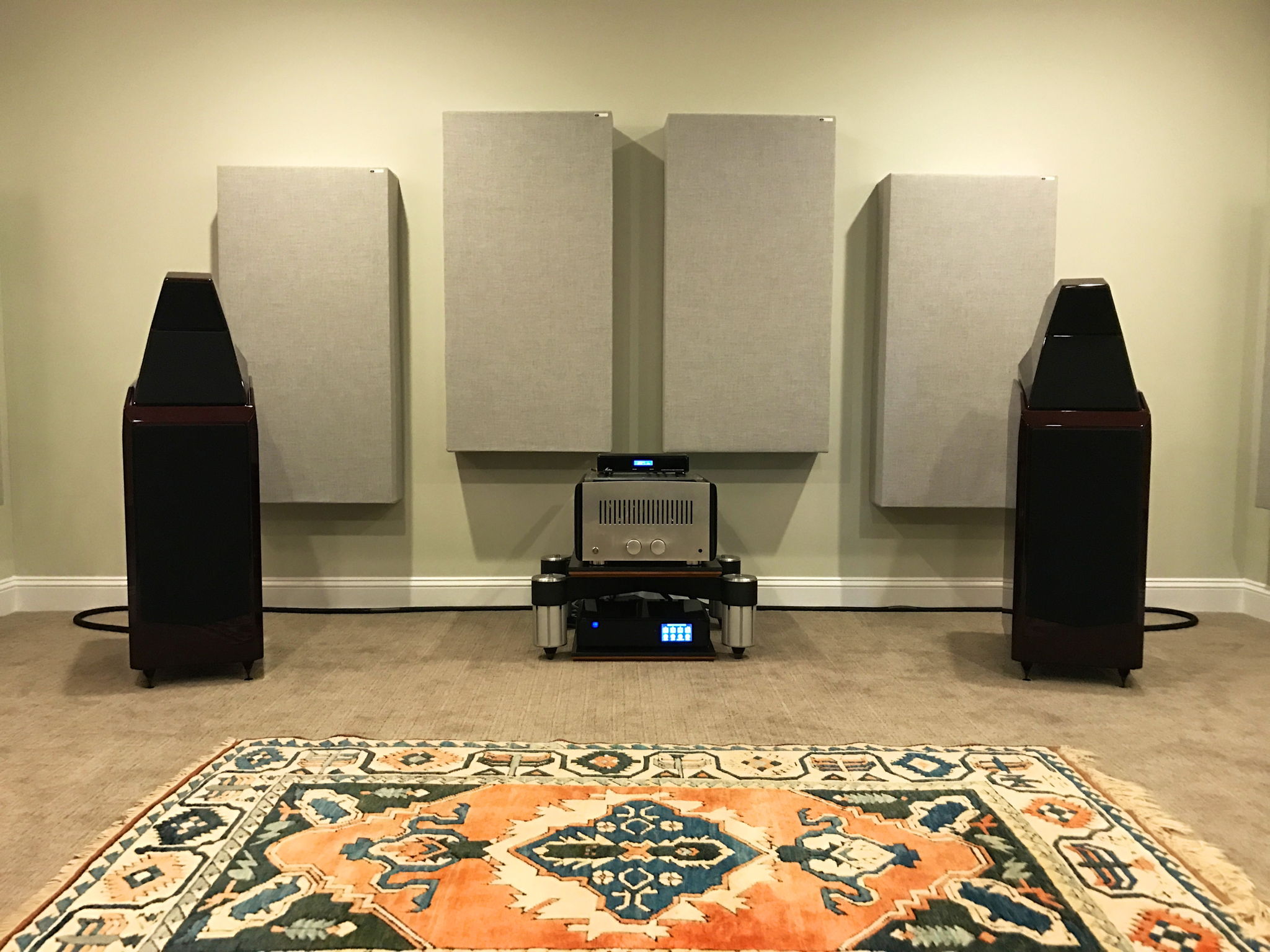

    4 on the front wall
    • GIK Acoustics 244 Bass Traps
    1 on each side wall near the front corners
    • GIK Acoustics Alpha 6A
    4 on each side wall
    • Empirical Audio Synchro-Mesh Reclocker
    • Creative Cable Concepts Green Hornet Digital Cable
    • Purist Audio Design Purist Audio Design's Poseidon-Luminist
    Speaker cables and interconnects
    • Adona Corporation Audio Rack

Comments 15

Awesome system, this is what i call a "Dream System", although there is no way i can afford anything (even) close to this, its nice to look at (and would love to hear it)                                     Most Regards,
                                                     Jeff.....

mantaman

Great room! And system ;-)

But wanted to dig into the room a bit. You mention "Walls and ceiling two layers of 5/8” sheetrock with green glue". Sounds like constrained layer damping. Is it? Interested in how you did this and why you did so. I'm looking into significant work in my room and absorbing bass energy is my place to start.


lewinskih01

lovely

tomic601

This is one of my favorite rooms on the 'Gon.  So elegant and so complete.

To paraphrase an English professor I had in college:  A hi-fi system should be as simple as possible, but not simpler.  :-)

cymbop

Owner

Thanks.  I had some lower frequency cancellation issues and the thicker 6” panels do a better job w/frequencies <100hz.  I used the free REW (room eq wizard) software with a $90 microphone from amazon to confirm that the room had dips in the 70hz area.  The REW software was also helpful with speaker placement.  The fabric is one the Guilford of Maine options called “Silver Papier 538”.

cktr250

One word: wow! My (future) room will be almost identical in its dimensions. I’m curious as to how/why you selected the 6” GIK Alpha panels vs. (for example) the 4” panels? The fabric color balances nicely with the Blonde Wood veneer. It’s a little hard to tell from the pictures, is that fabric color GIK’s standard grey?

tubegb

Owner

Hi, Thanks for the compliments.  Yeah, while the room is far from theoretically perfect…I guess, ideally it would be a little deeper relative to the width with higher ceilings, but from what I had to work with it turned out much better than I thought it would.  It’s a really comfortable size and in the end sounds great.  I was already pretty happy with it prior to adding the GIK treatments, but room acoustic treatments really are worth it and take it to a different level.

cktr250

Your room is fantastic. It looks to be the perfect size. I'm in the living room with my setup but will be moving in a few years and will build a similar room. i may just show the builder this picture. I might get the big Wilsons too. Lol

bubba12

Owner

Hi, thanks.  I’ve only owned the Sasha 2s for a few months but from the first couple tracks that I listened to at home I was amazed (and relieved since I had only previously listened to them in a different environment with very different SS equipment)…and that was prior to messing around with positioning.  I completely agree that positioning matters a lot, although for me that has been the case with other speaker I’ve owned (SF Liuto, Sophia 3, NHT 2.5), especially when the room isn’t great which is often the case.  I’ve only had this dedicated room for 6 months or so.  Prior to re-finishing our basement my 2-channel set-up was always in a family room type of space.

I’ve owned the amp and dac for 3-4 years and both have been in the “keeper” category for me.  I’ve gone through a few equipment/cable changes over years and this is by far the best sounding system I’ve owned.  It’s very enjoyable to listen to on all types of music even lessor quality recordings.  I’ll try to give more background on what I’ve tried and owned at some point.  Thanks

cktr250

Just got a pair of Sasha 2s and really like them. What are your impressions? How long have you had them and your present rig?  They are fairly sensitive to position in my small room. Nice color!

996cupracer

Owner
Hi, thanks.  The P5 was somewhat necessary in my case.  The Synthesis amp fuses don't have much tolerance for voltage significantly above 120 and our line voltage runs high...typically around 125/126 and I've seen it as high as 129.

So, the P5 is the perfect solution for me since converts AC-DC-AC it allows me to specify the output voltage to a steady 120.  I haven't done much in the way of a/b comparisons with and without as far as noise/sound quality goes.  However, I can say that it works great and provides a good deal of protection for my amp and DAC.

cktr250

Owner

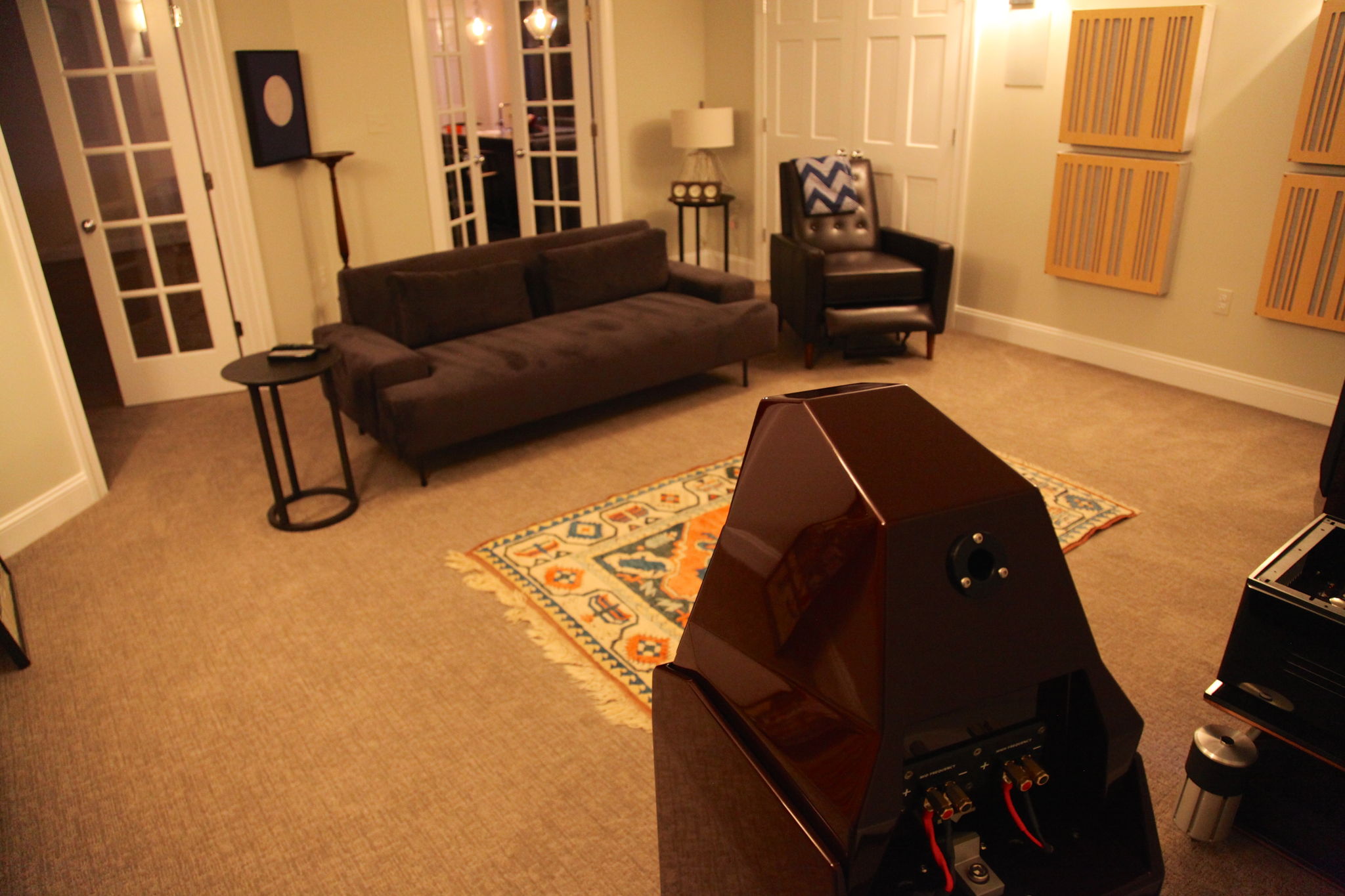

correction to my first post...meant to say "the traps on the FRONT wall"...not the back wall.  I don't have any treatments on the back wall given the two sets of french doors...there isn't much back wall space.

cktr250

Beautiful and balanced. How do you find the P5?

Kind regards,

Paul

ps7256

Owner

Thanks.  The ALPHA panels made a nice improvement but it’s hard to say if it’s simply from having some decent absorption at the first and second reflection points or if the diffusion is also helping a lot.    It’s probably both but I suspect the added absorption is what I’m benefiting most from.  I’ve put together a few different systems and it still amazes me how much room specific acoustics matter…as well as positioning.  The traps on the back wall were a major improvement in flattening out the frequency response in the lower-end while preserving stage depth despite moving the speakers a bit closer to the front wall for optimal bass response.  Prior to installing the traps there was more extreme give and take on bass response vs. stage depth when experimenting with speaker positioning.

cktr250

Very nice and clean setup,
How's the GIK alpha ?

honeyooi
