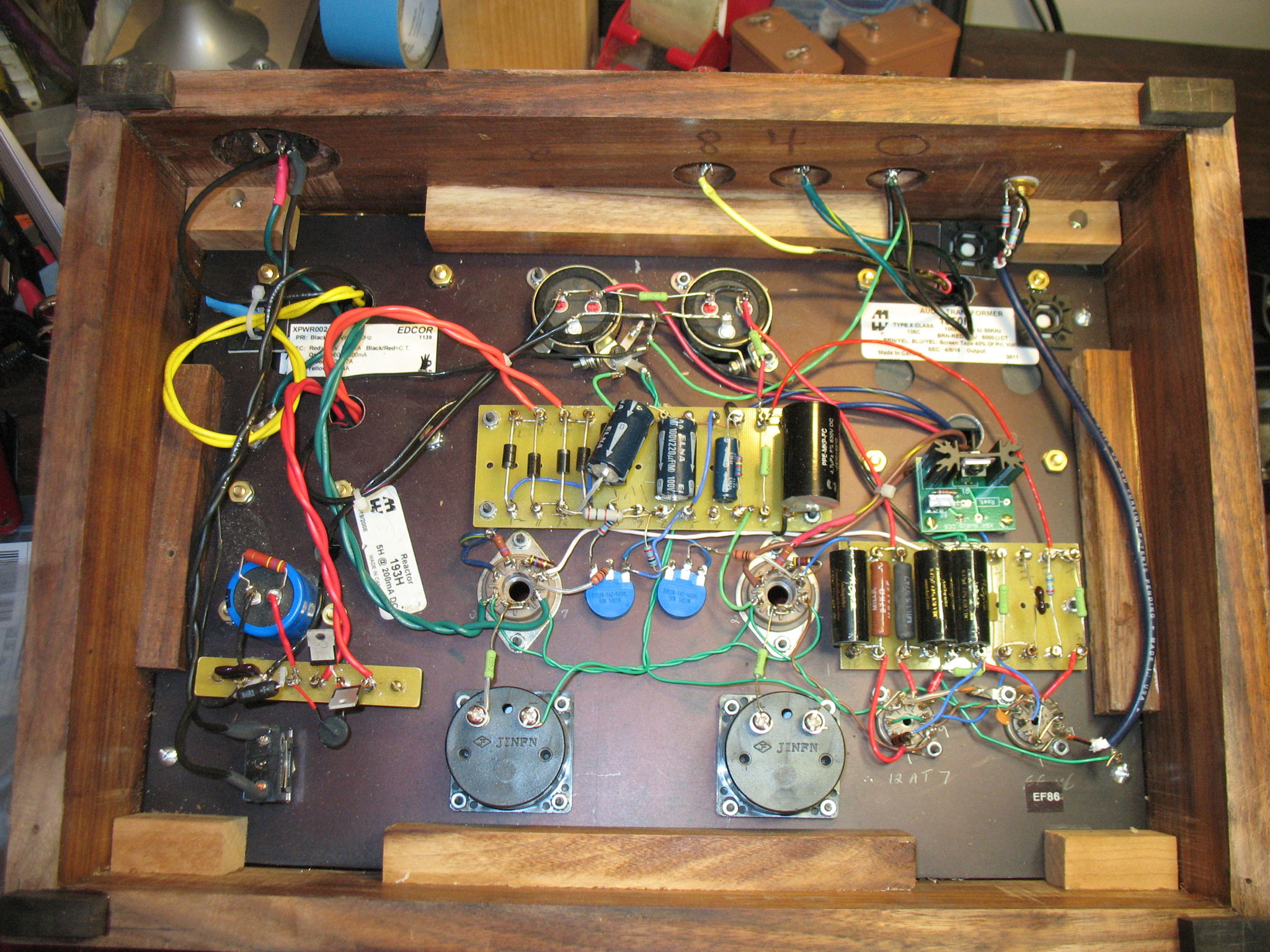

Mullard Innards

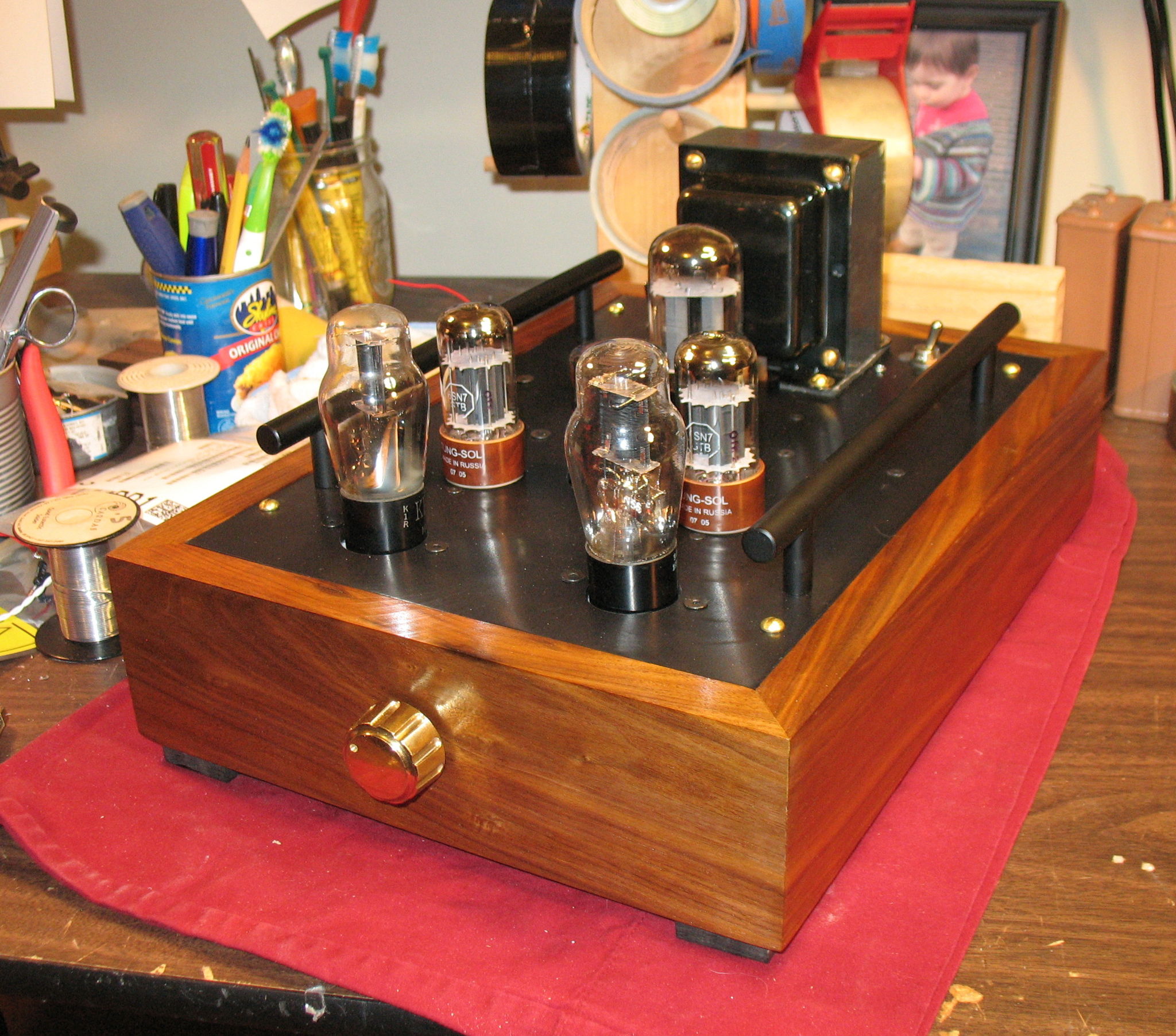

76 pre-amp 'beauty shot'

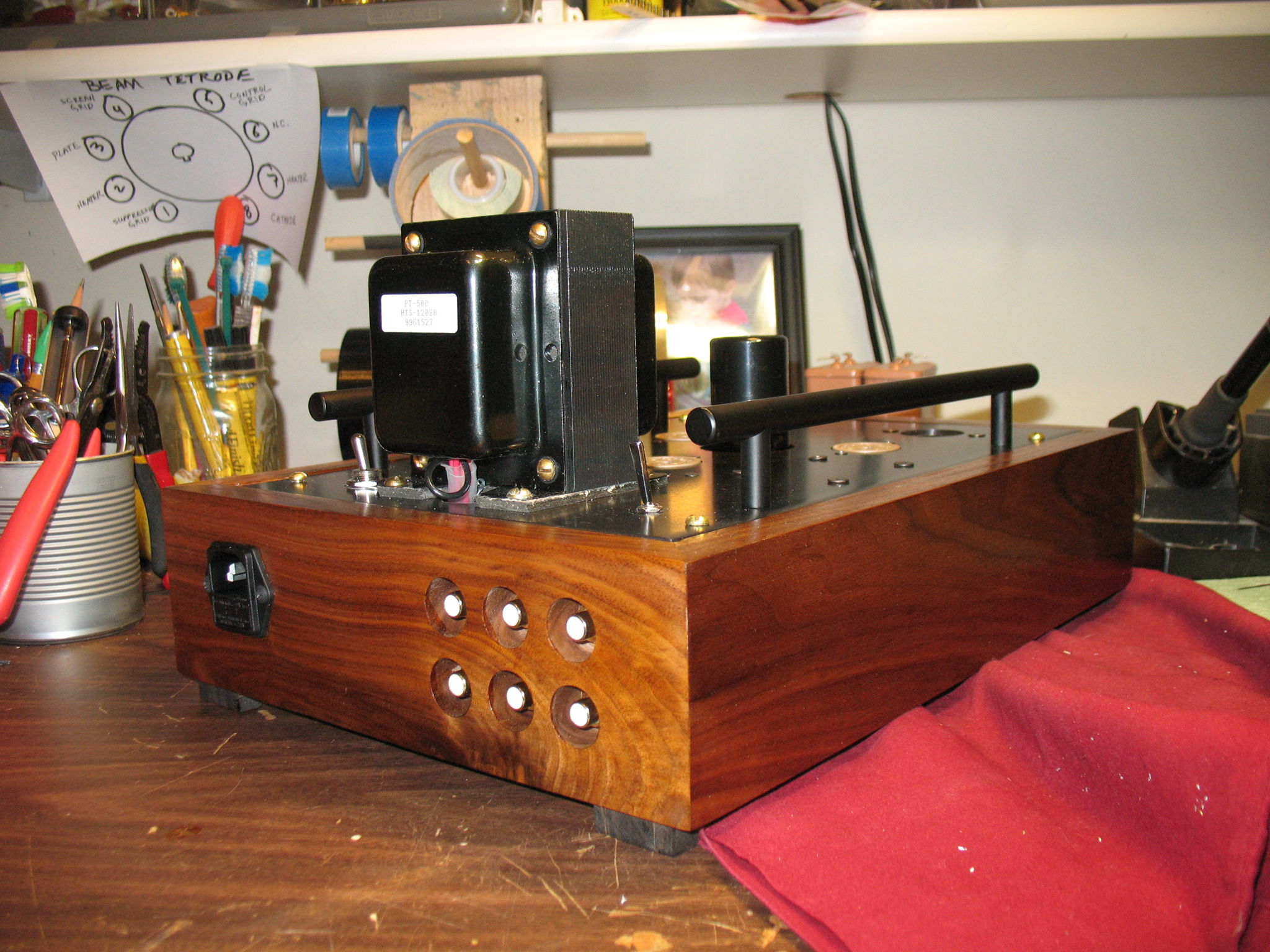

Old-time Radio Inspired Casework

Voice of Gene Wilder: "Give my creation life!"

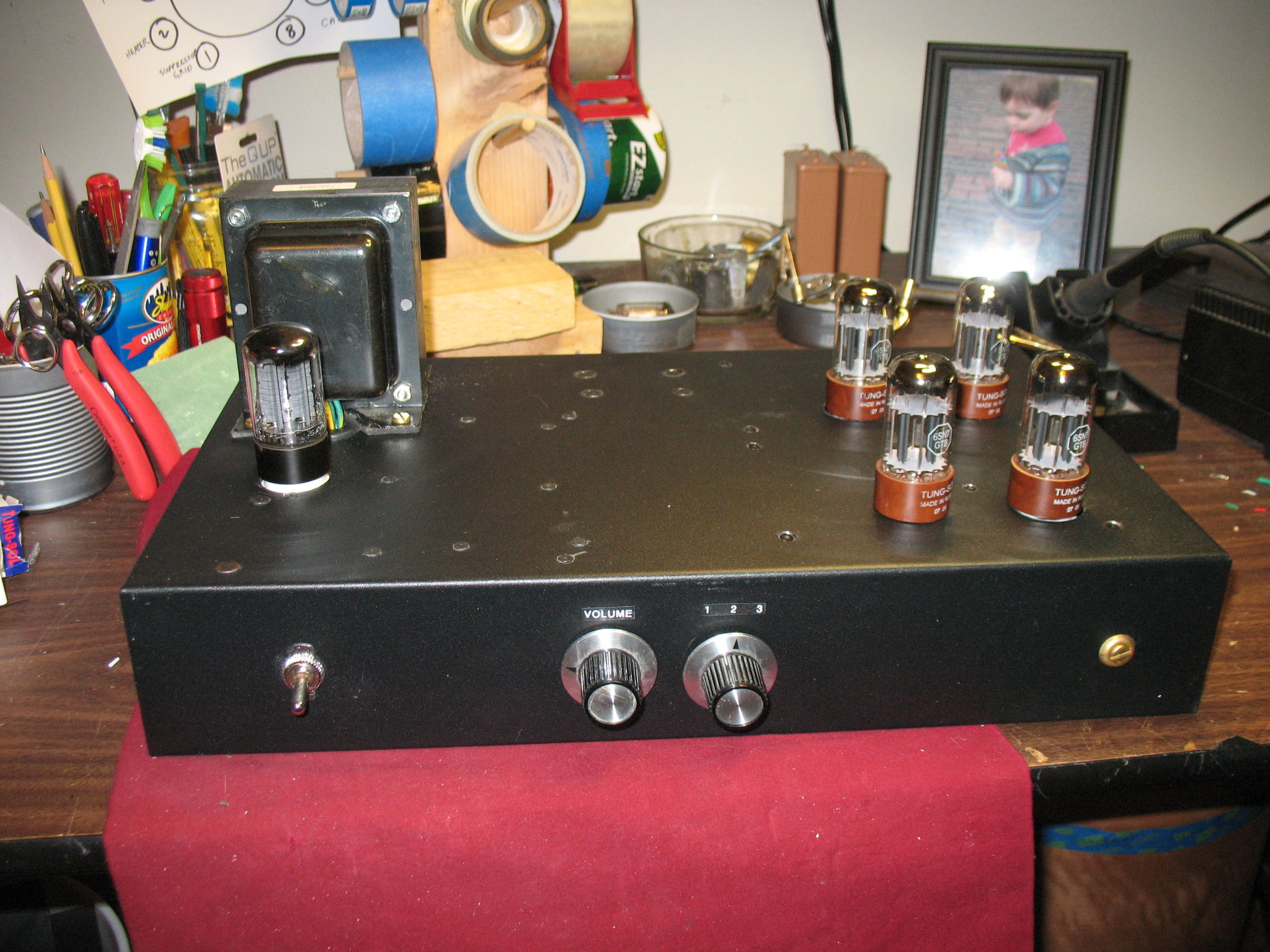

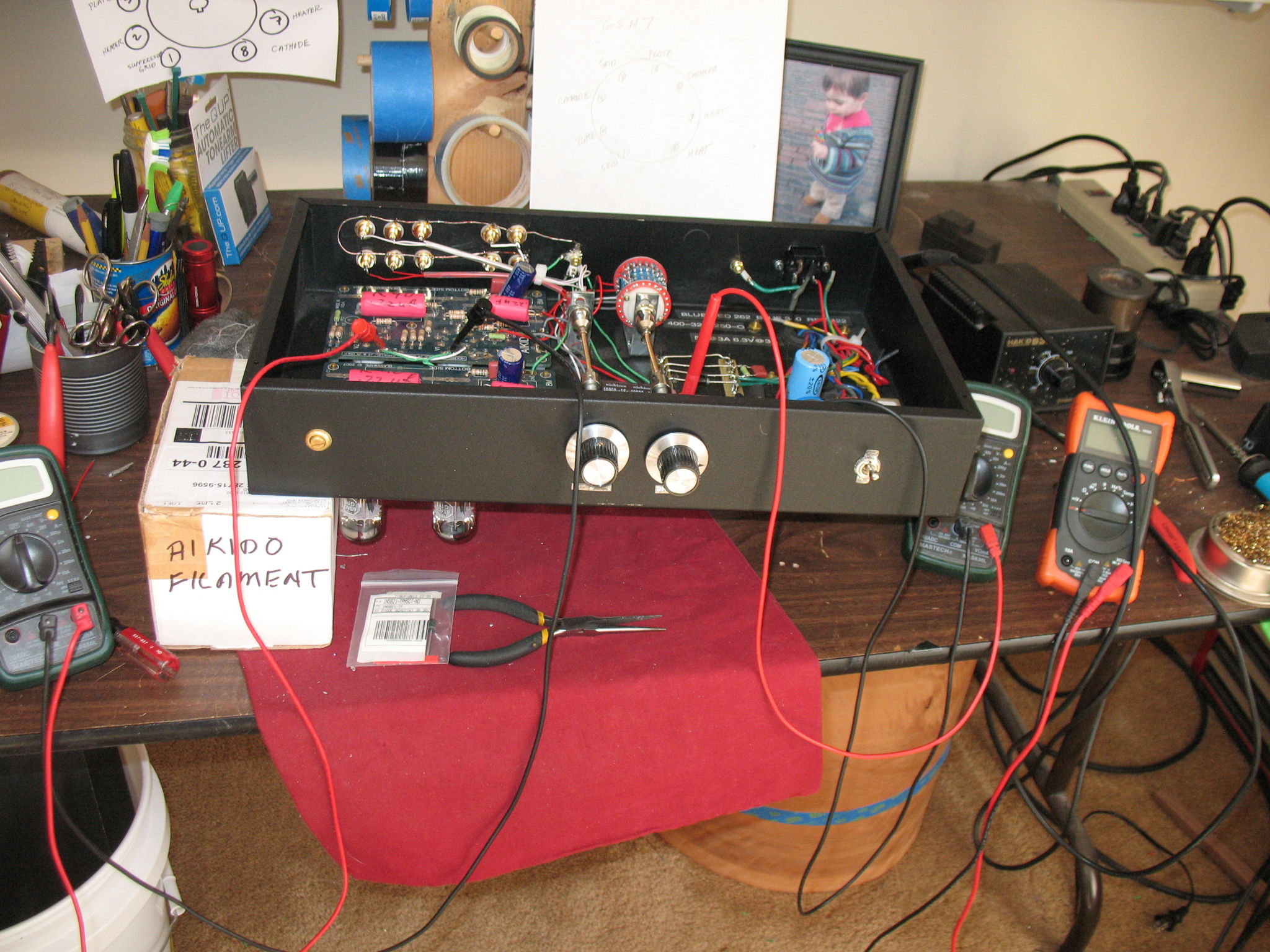

Aikido Dual Mono pre-amp

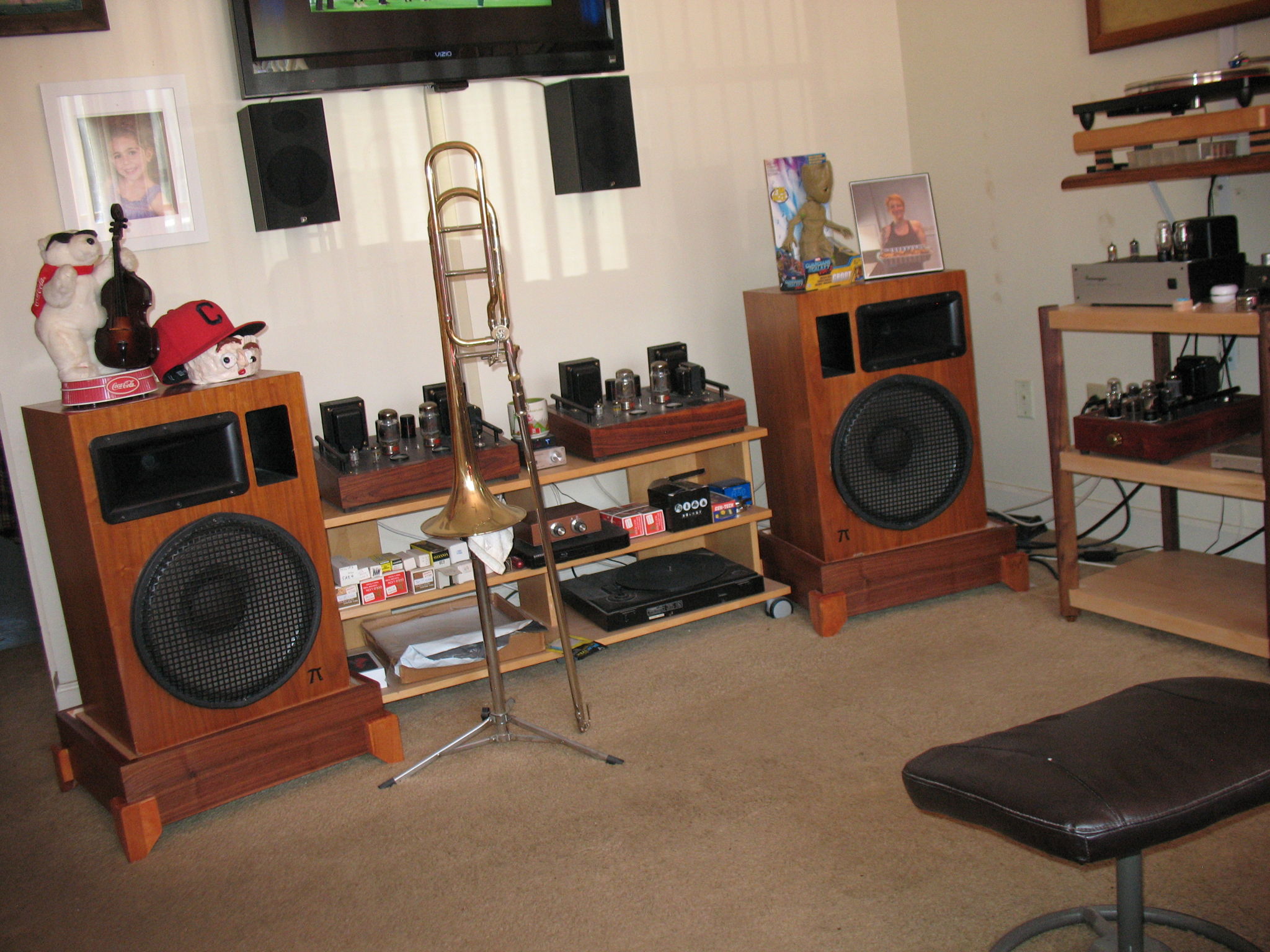

The concrete blocks are gone! Stands are now sand boxes that make a major improvement in SQ over a suspended floor

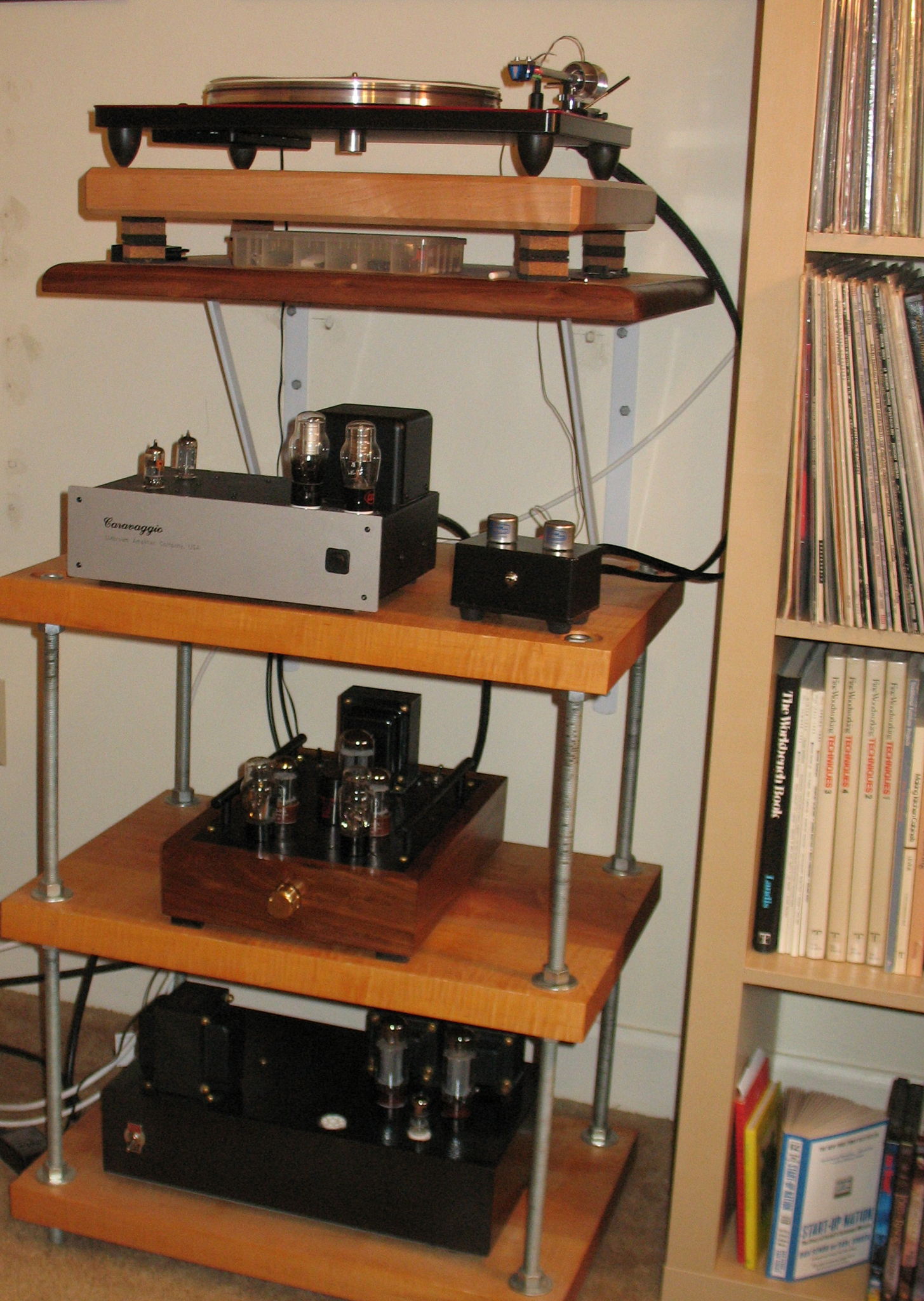

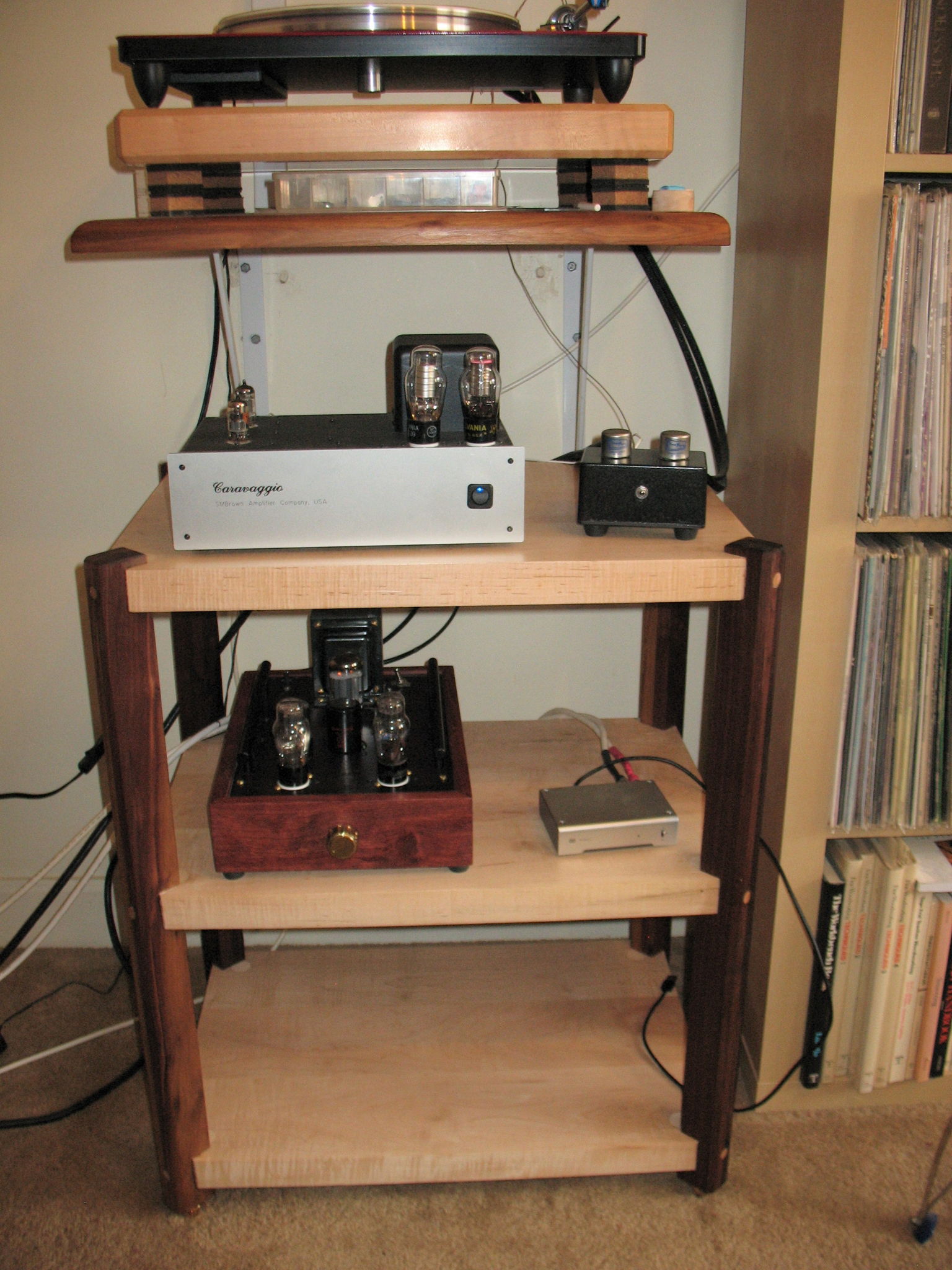

Meet the New Rack, same as the old rack (shelves)

Description

It's a joy to come into the Front Room and play records on a system that, with two exceptions, I built myself.

The Mullards and the 76 Pre-amp are the mainstays. The 55 push-pull watts of the circuit have nearly the same tone and texture of single-ended with the added benefits of a higher damping factor and the headroom to portray a full orchestra. The 76 adds to the soundstaging goodness and while it has just a hint of old-timey caramel coloration, it also unravels dense orchestral textures beautifully.

Speaking of old age, anyone else still around from the pre-moderator old days?

Components Toggle details

- VPI Traveler
With ZYX R50 Bloom Cartridge
- Cinemag 3440AH SUT
Switchable Impedance
- SM Brown Amplifier Co. Caravaggio Phono Stage
Adjustable input impedance, Tube regulated power supply, RCA Passive circuit adapted and built by my friend and mentor Steve Brown

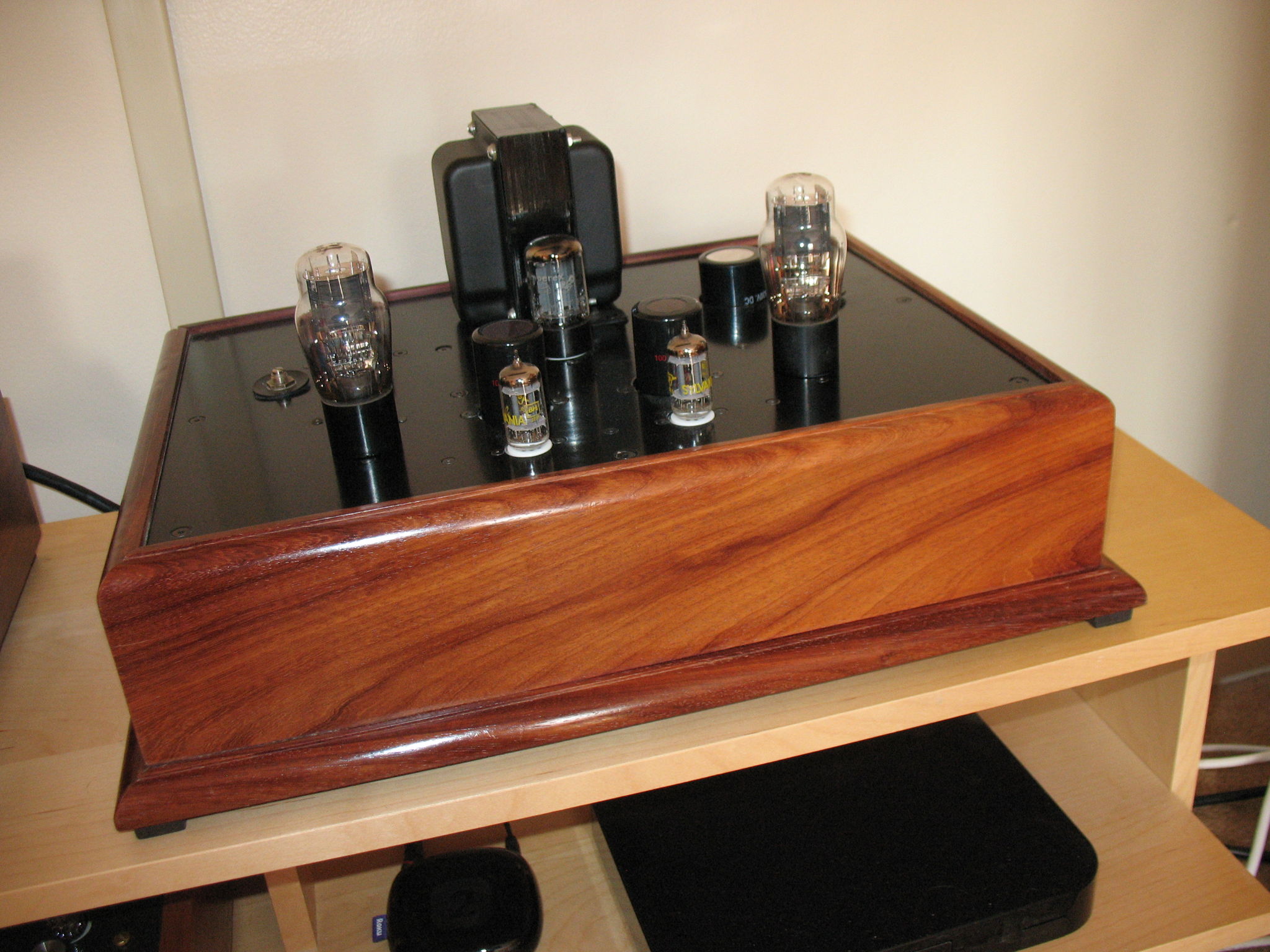

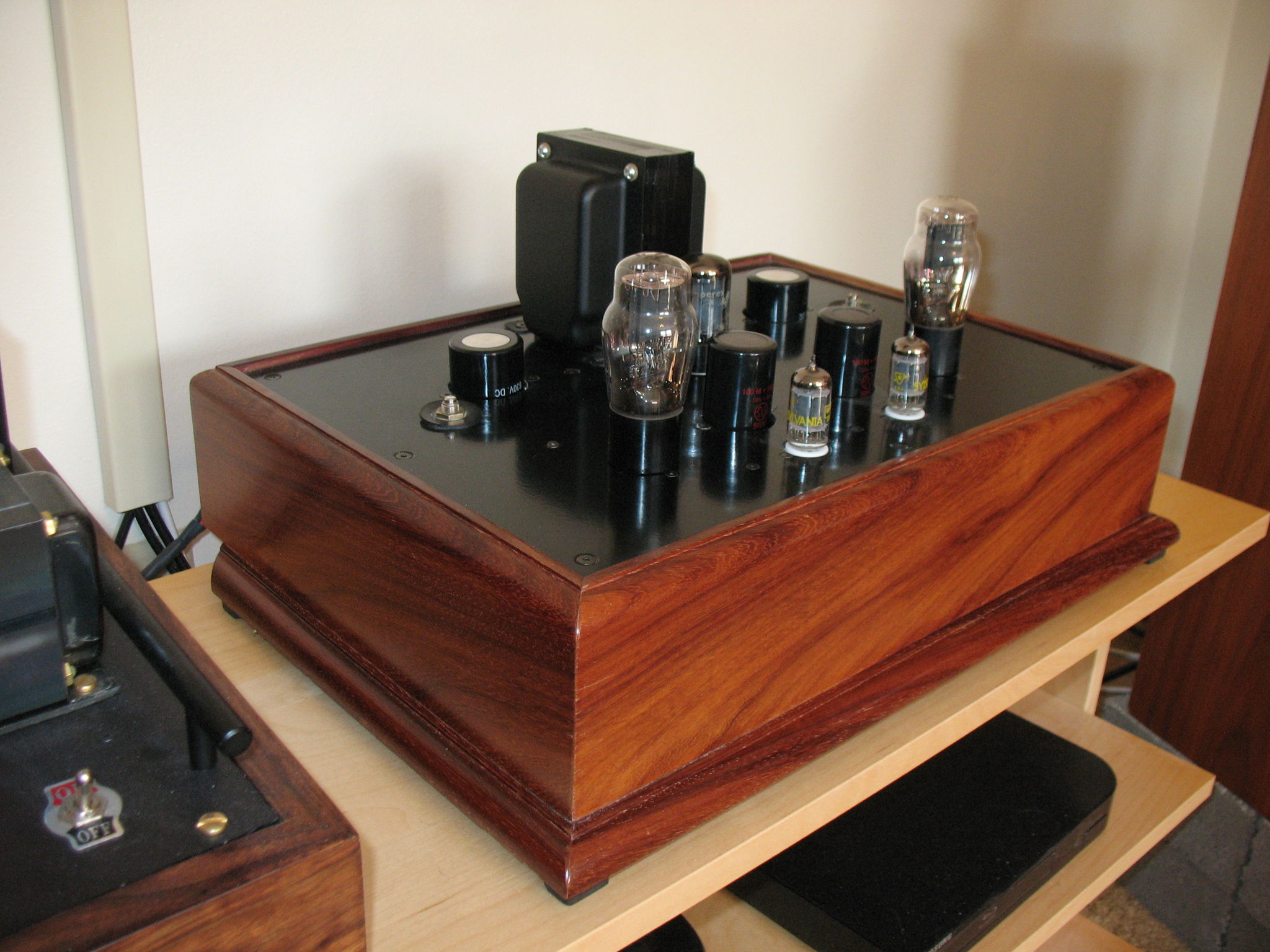

- JE Labs 76 Line Stage
My first solo, built from schematic, point to point project and does it sing!
- John Tucker/Dan Schmalle/Steve Brown UX-45 Main Amplifier
Single-ended, pseudo dual-mono, direct-coupled, parafeed circuit with Magnequest Plate Chokes and Output transformers.
This was my first DIY project with Steve Brown. We each built one often working side-by-side at his bench while he talked me through the tricky bits.
- Tubelab Simple SE partial kit
The only circuit board kit I still have and often use which I like so much I built another recently from scratch, all point to point. A tube rollers dream! 440 vDC B+ and a 560 Ohm Cathode resistor allow switching EL-34s, 6550s, Kt-66, 77 and 88, 6L6
- Diyaudio.com Mullard 5-20 KT-88 Mono Blocks
With the KT-88s and modern parts including solid state rectification it's really a 4-55. This 5-20 circuit was created in the mid-Fifties by Mullard to introduce their EL-34.

The guys at Diyaudio.com, Eli Duttman, Boy Wonder, Taj, Johann Pottgeier and others collaborated, as they do on many designs. Steve Brown and I decided to collaborate on this as we did on the 45 amp. After 2 years of correspondence and finally my trip to Portland they were done this past October.

With Steve's guidance the EF-86 input tubes are wired in Triode, the Negative Feedback is removed and compensated for by input resistor padding. Gold Lion KT-88s make these powerful amps yield single-ended tone and texture while providing massive damping and drive to the JBL woofers.
- Pi Speakers 4 Pi
Although I haven't frequented Audiogon in quite awhile I was here at the beginning as I turned my woodworking hobby to speaker building in 2001. High Efficiency was always my interest and I played around with all the JBL, Altec-Lansing, Emilar, etc. products until in 2008 I finally built the 4 Pis and got off the Merry Go Round. They do everything right.
