Urosg's System

by urosg on KEFDenonPro-jectOrtofon 2m REDOrtofonKEF R3Project Debut Carbon DC

Description

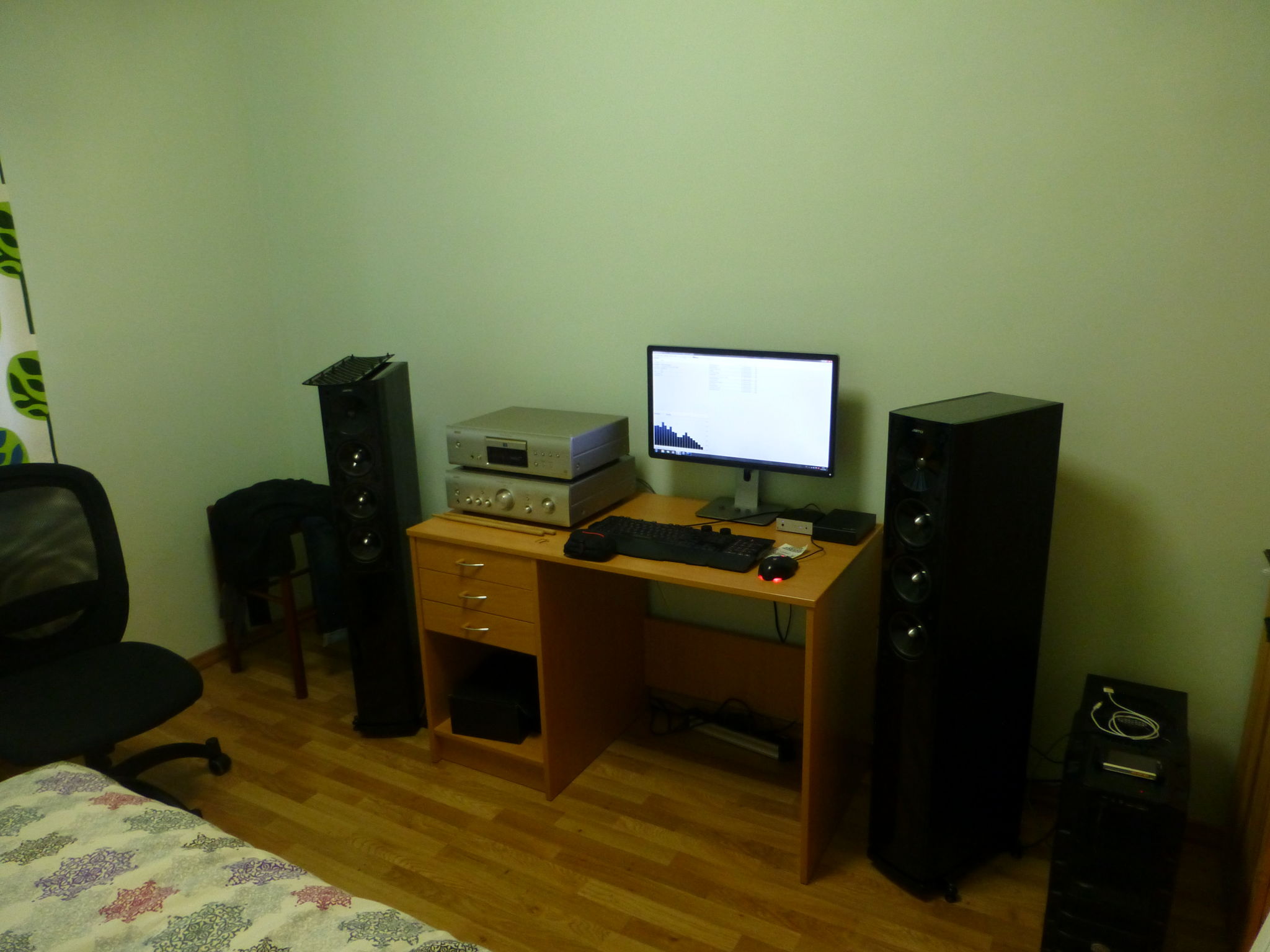

Started as a full 5.1 setup with Onkyo entry level av receiver. After 2 years my attention switched to 2 channel stereo systems , sold the Onkyo sr-507 got an awesome deal on the Denon  1500ae series amp and sa-cd player. Paired with the Jamo S608 full range speakers, 150w 6 Ohm. Speaker cables are the Chord company Rumor 2 factory banana termination. I am using some cheep RCA cables from a local store, gold plated termination and 99.3 oxygen free copper (update in the near future). The latest addition is the Project USB Box S+ for digital audio, capable of 384hz sample rate (asio drivers ).

Update 1: Got into the turntable scene . Started with an entry level Project Debute Carbon with an Ortofon 2M RED cartridge. The record collection started Expanding.

Update 2: The big one, NEW SPEAKERS ARE HERE !! FOR more than 10 years of dust collecting the whole jamo S608HCS3 setup is gone. After a long time of decision making and a lost deal on the KEF LS50 bought the new KEF R3 bookshelf speakers. Sound is like a dream, a big step up in build and sound quality well worth the price. Still stuck in my small room, NOT for long NEW update soon.

Will add more info and pictures ......still under construction

Any suggestions and comments are welcome!
Read more...

Components Toggle details

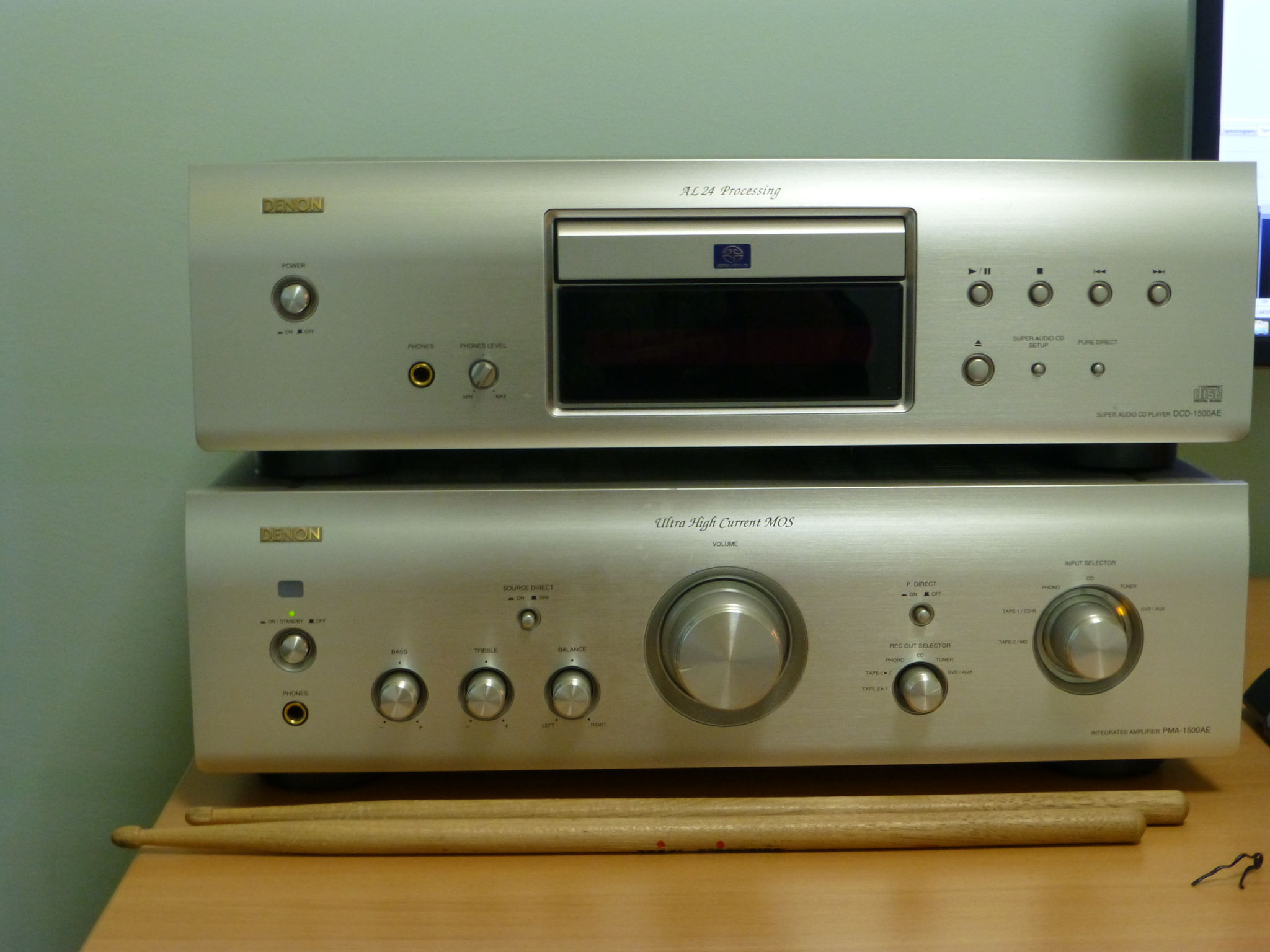

    • Denon PMA-1500AE

    POWER AMPLIFIER SECTION

    Rated Output Power:

    - Both channel driven

    - (8 Ω/ohms Load) 70 W + 70 W

    - 20 Hz to 20 kHz, T.H.D. 0.07 %

    - (4 Ω/ohms Load) 140 W + 140 W

    Total Harmonic Distortion:

    - 0.01 % (–3 dB at rated output, 8 Ω/ohms) (1 kHz)

    Input Sensitivity/Input Impedance:

    -P. DIRECT: 0.84 V/47 kΩ/kohms

    Amplification factor:

    - 29 dB


    PRE AMPLIFIER SECTION PHONO EQUALIZER

    Rated Output: 150 mV(Recout Terminal)

    Input Sensitivity/Input Impedance:

    DIRECT is ON.

    - PHONO: MM: 2.5 mV/47 kΩ/kohms

    - MC: 200 μV/100 Ω/ohms

    - CD, TUNER, DVD/AUX, 125 mV/47 kΩ/kohms

    - TAPE-1/CD-R, (125 mV/12 kΩ/kohms)

    - TAPE-2/MD, (125 mV/12 kΩ/kohms)

    RIAA Deviation:

    PHONO: 20 Hz ~ 20 kHz ±0.5 dB

    Maximum Input:

    PHONO

    - MM: 130 mV/1 kHz

    - MC: 10 mV/1 kHz

    Rated Output:

    -  PRE OUT: 0.84 V (Input CD 125 mV)


    OVERALL CHARACTERISTICS

    SN Ratio (IHF A Network):

    PHONO

    (input terminals shortcircuited)

    - MM: 89 dB (at 5 mV input)

    (input terminals shortcircuited)

    - MC: 74 dB (at 0.5 mV input)

    SOURCE-DIRECT: ON - CD, TUNER,

                                          - DVD/AUX

                                          - TAPE-1/CD-R, TAPE-2/MD:

                                          - 108 dB



    Tone Control Adjustable Range:

    BASS: 100 Hz ±8 dB

    TREBLE: 10 kHz ±8 dB


    OTHERS

    Power Supply: AC 230 V, 50 Hz

    Power Consumption: 305W (IEC)

    Dimensions: 434 (W) x 134 (H) x 410 (D) mm

                                   (17-3/22” x 5-9/32” x 16-9/64”)

    Net Mass: 14.6 Kg (32 lbs 3.0 oz)

    • Denon DCD-1500AE

    Audio

    - Analog output:                       [Super Audio CD]                            [CD]

    - Number of channels:             2 channels                                     2 channels

    - Frequency response:             2 ~ 100,000 Hz                             2 ~ 20,000 Hz

    - Frequency response range:  2 ~ 50,000 Hz (–3 dB)                  2 ~ 20,000 Hz

    - Signal-to-noise ratio:             104 dB                                          110 dB

    - Dynamic range:                      104 dB                                          100 dB

    - Harmonic distortion:               0.0013 %(1 kHz)                          0.0018 %(1 kHz)

    - Wow and flutter:                                            Below measurable limit

    - Output voltage:                        2.0 V (10k Ω/ohms)                     2.0 V (10k Ω/ohms)

    - Signal system:                          1-bit DSD                                    16-bit linear PCM

    - Sampling frequency:                 2.822 MHz                                 44.1 kHz

    - Discs:                                        Super Audio CD format                Compact Disc format

    - Digital output:

                                                                                             Coaxial: – 0.5 p-p/75Ω/ohms

                                                                                             Optical: – –15 ~ 21 dBm

    - Light emission wavelength:                                                             660 nm

    General characteristics

    - Power supply: AC 230 V, 50 Hz

    - Power consumption: 16 W

    - Maximum external dimensions: 434 (width) x 135 (height) x 331 (depth) mm (including protruding parts)

    - Mass: 7.6 kg

    • Project Audio DAC USB Box S+

    - D/A-converter:  BurrBrown PCM-5102A Multibit Delta Sigma

    - Sampling rates: 32/44.1/48/88.2/96/176.4/192/352.8/384kHz

    - Selectable filter settings: minimum distortion  & optimum phase

    - Digital inputs: 1x USB B

    - Analogue out: 1 pair RCA/Cinch

    - Output voltage             max: 2 .1Veff

    - Power consumption: < 1 watt standby

    - Power supply: 9V/300mA DC; 100 - 240V, 50/60Hz

    - Dimensions (W x H x D): 103 x 36 x 104 (109)mm (incl. sockets)

    - Weight: 576g without power supply

    • KEF R3

    Model: R3

    Design: Three-way bass reflex

    Drive Units: Uni-Q Driver Array:

    HF: 25mm (1in.) vented aluminium dome

    MF: 125mm (5in.) aluminium cone

    Bass DriverLF: 165mm (6.5in.) hybrid aluminium

    Crossover frequency 400Hz, 2.9kHz

    Frequency range (-6dB): 38Hz - 50kHz

    Typical in-room bass response (-6dB) 30Hz

    Frequency response (±3dB)        52Hz - 28kHz

    Harmonic distortion (90dB, 1m) <0.3% 130Hz - 20kHz

    Maximum output: 110dB

    Amplifier power (recommended): 15 - 180W

    Nominal Impedance: 8Ω (min.3.2Ω)

    Sensitivity (2.83V/1m): 87dB

    Weight *: 13.5 kg (29.8 lbs.)

    Dimension (H x W x D): 422.2 x 199.6 x 335.5 mm

    (16.6 x 7.9 x 13.2 in.)

    • Project Debut Carbon DC + Ortofon 2M Red

Comments 2

Sign in to comment
Very nice kit for your bedroom.

mjcmt

I like your selection of equipment, but better placement of speakers and gear would enhance your listening experience.

mjcmt

Showing all 2 posts
