Moment of Truth | Virtual Listening Room

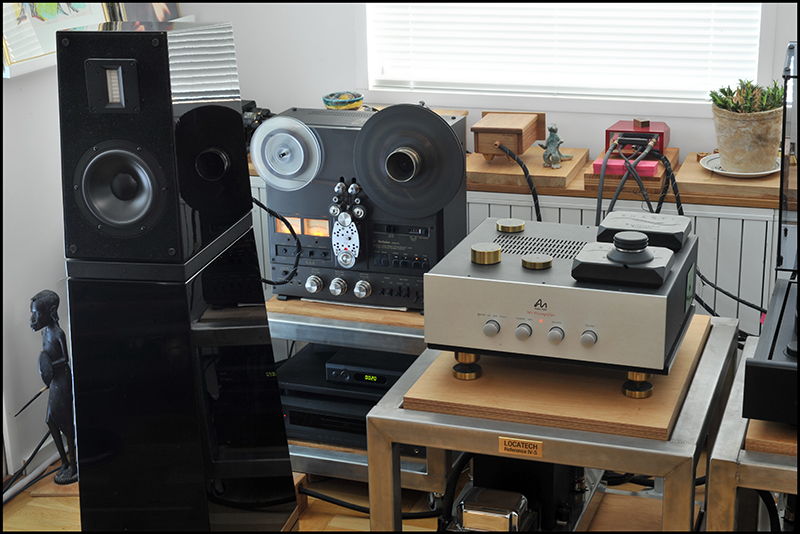

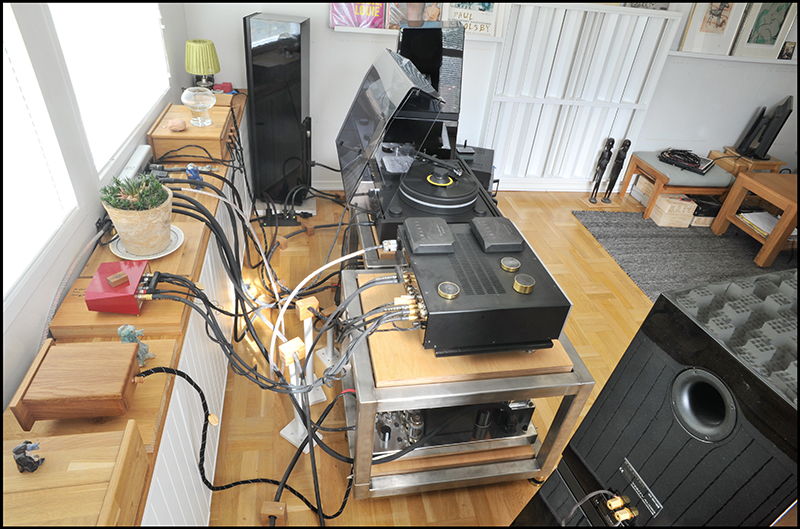

System electronics

Cartridge setup again

Boxer Ringo chilling

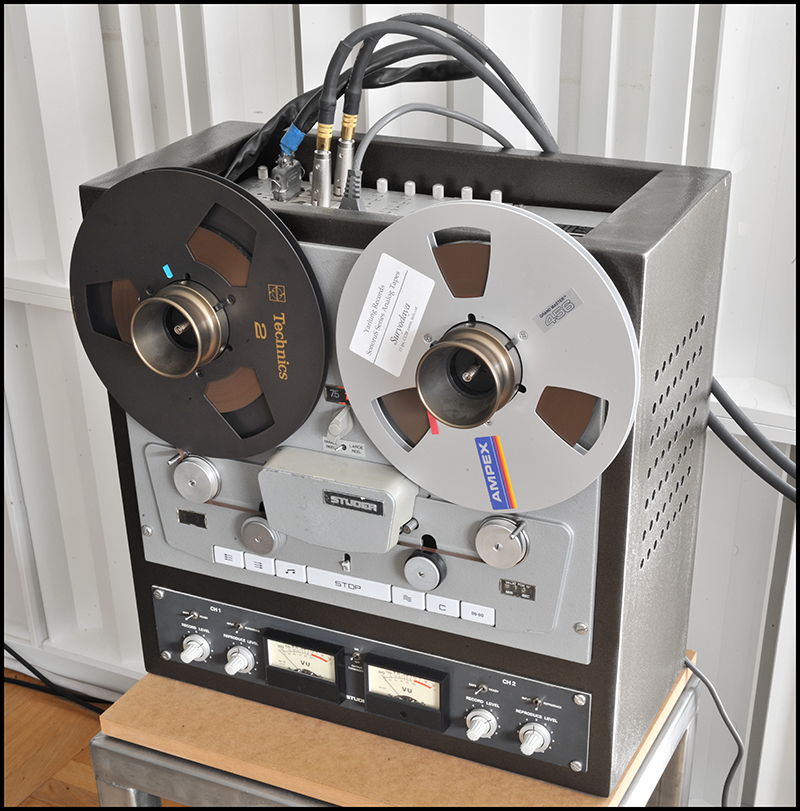

B62 with separate vu meter bridge

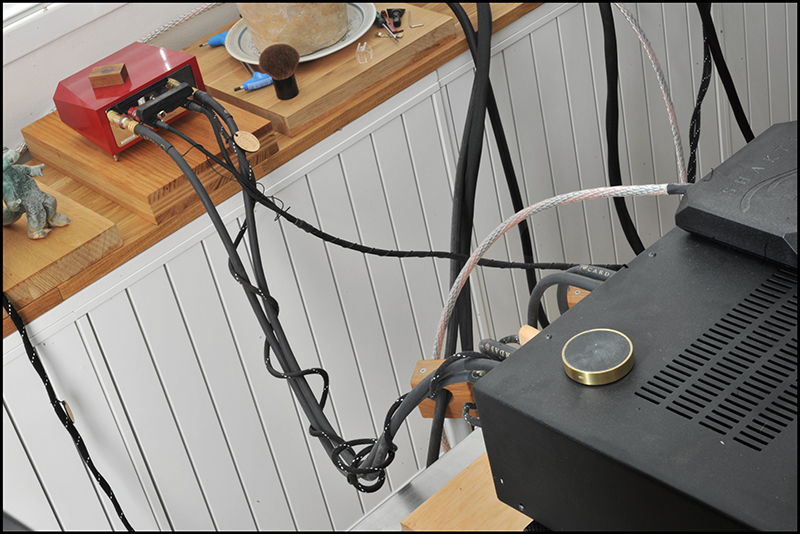

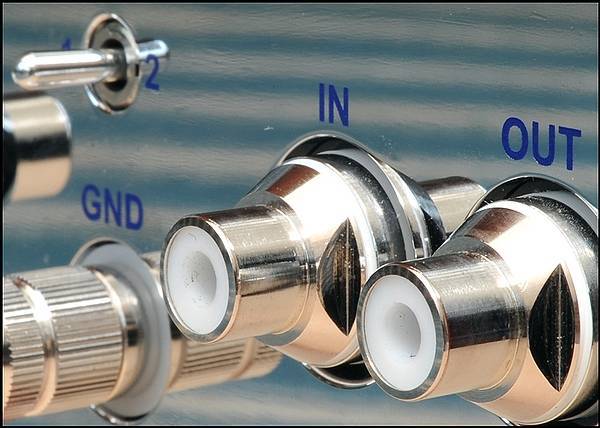

Stepup to mm phono input

JA-80 with KT120

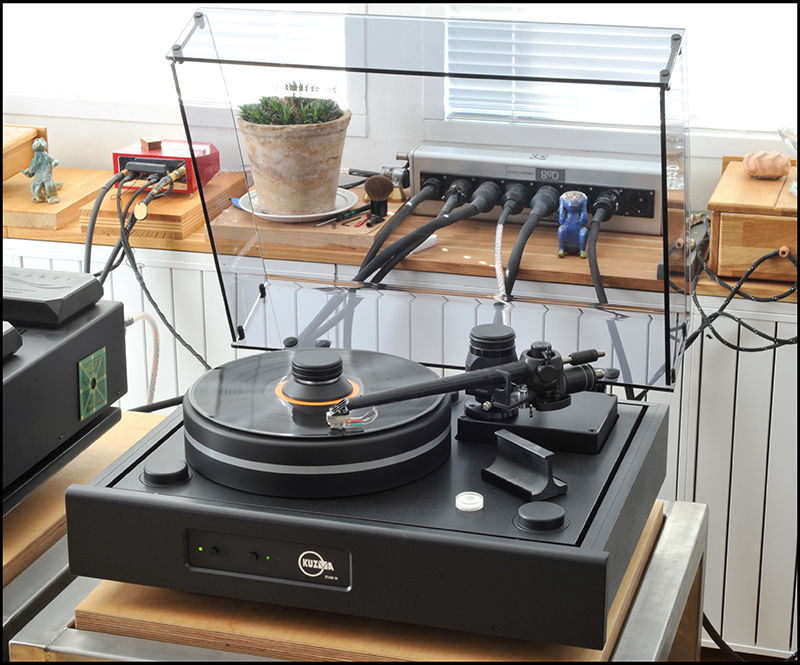

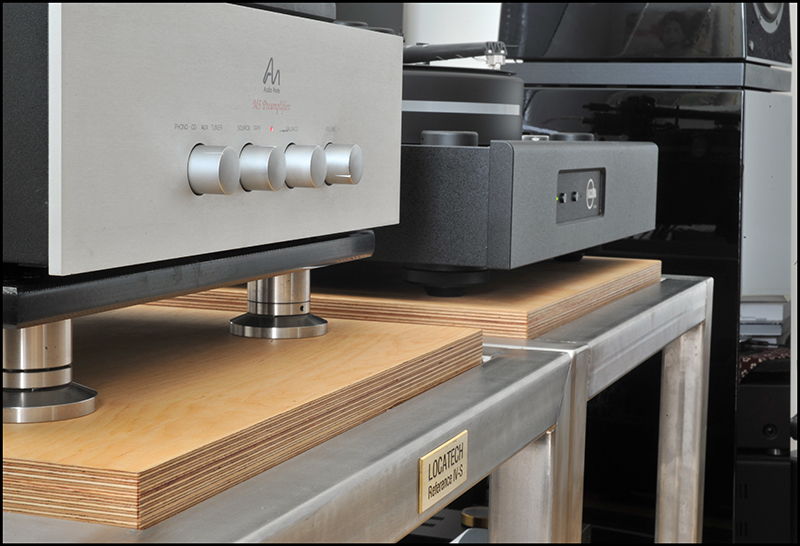

Preamp and turntable

Modus Hoperandi

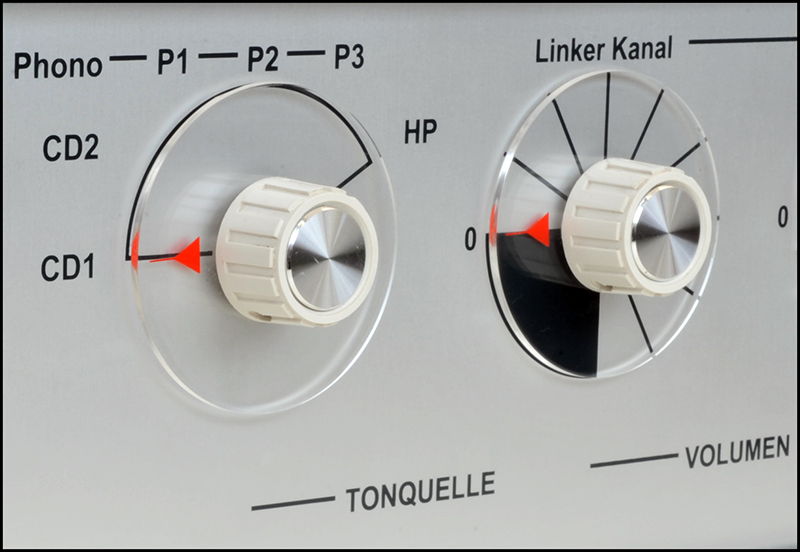

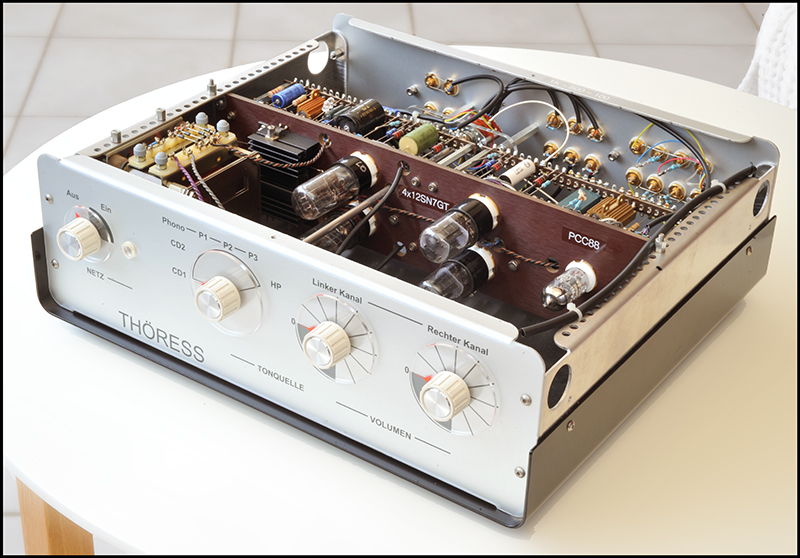

Thöress with 3 high gain mc inputs

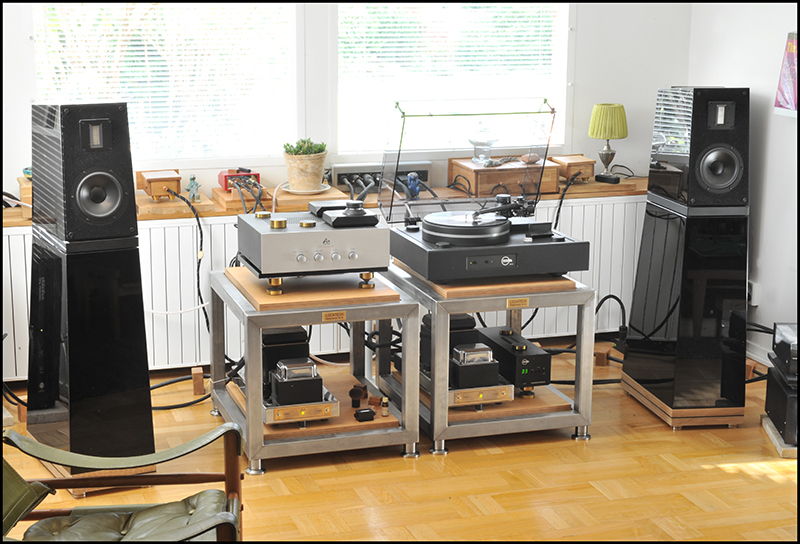

Domestic concert hall, built by me and my friends

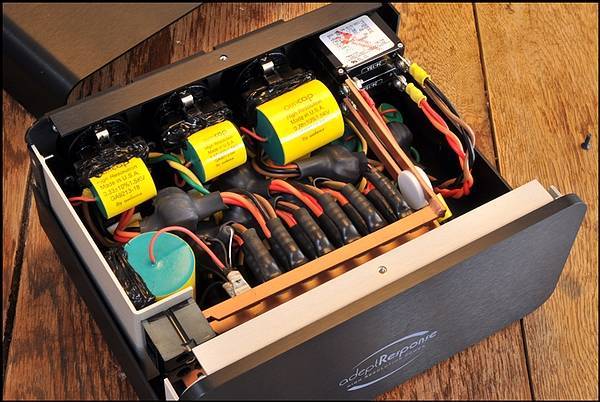

Power conditioner

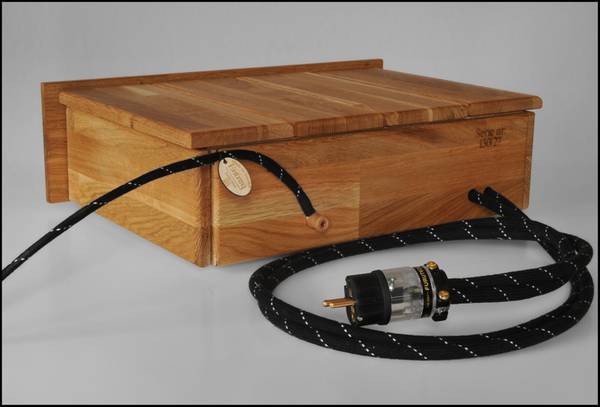

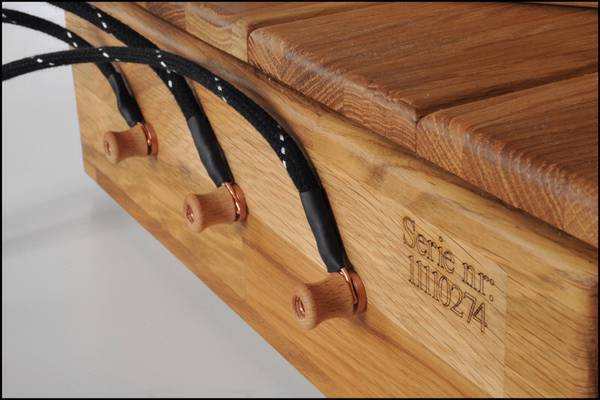

Earth conditioner

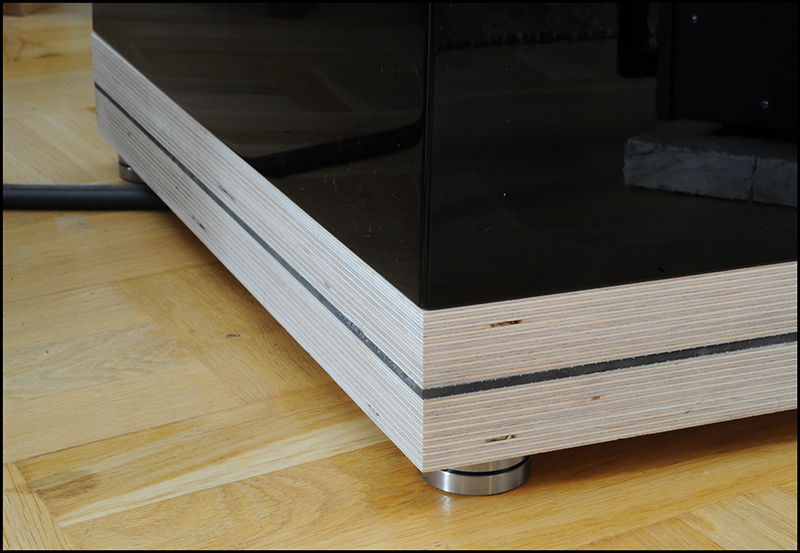

Base with 2x21 birch plywood and 5mm viscoelastic membrane

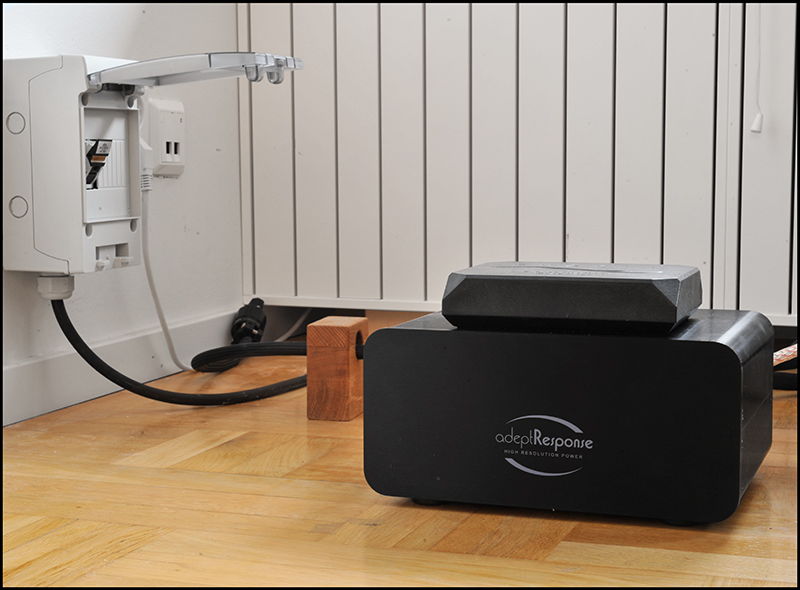

Adept on dedicated 3x9awg line to Klangmodul

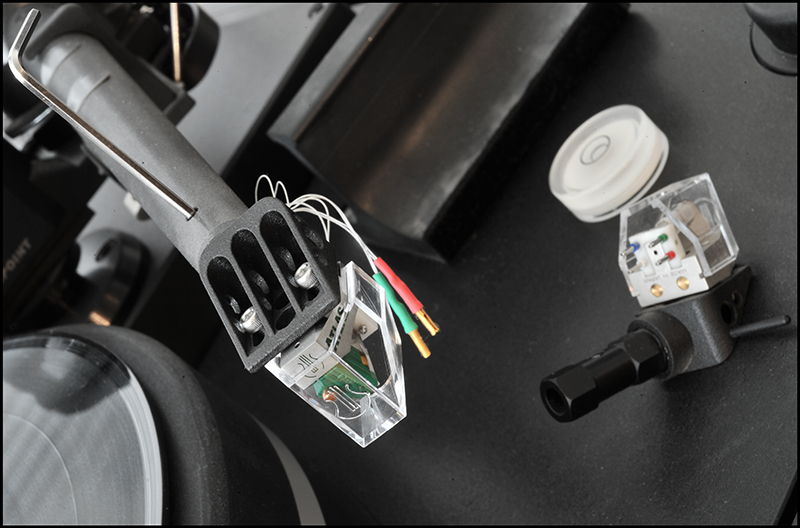

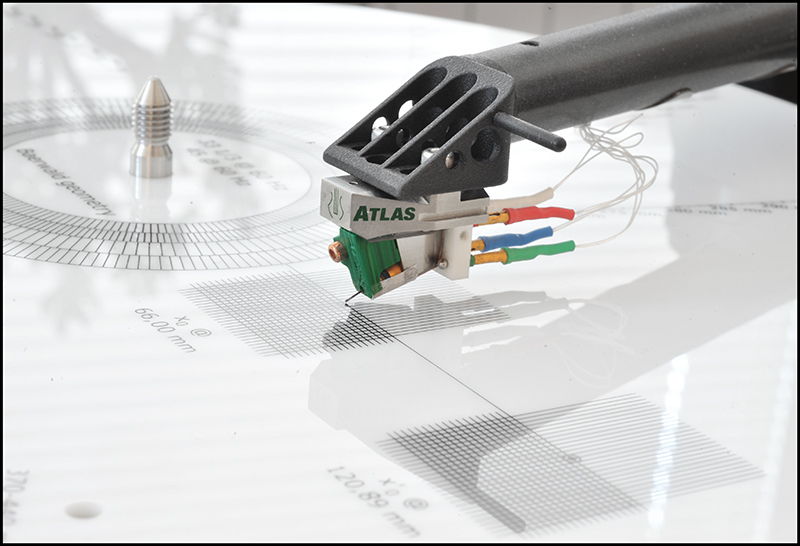

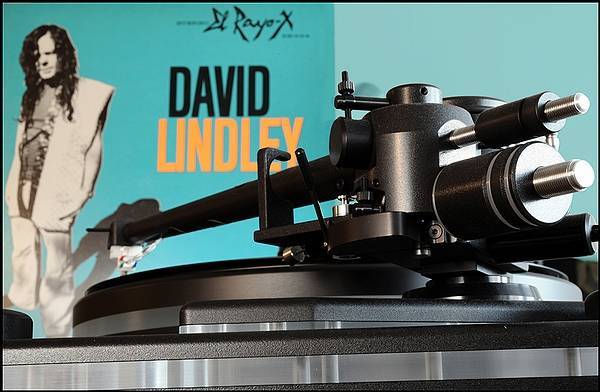

Cartridge setup

B62 in diy koffer

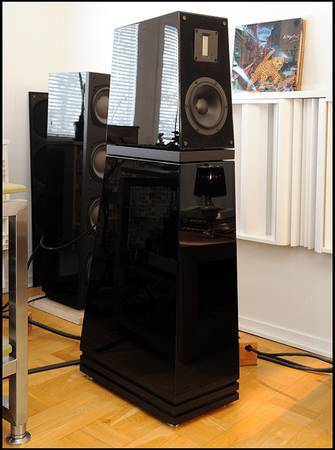

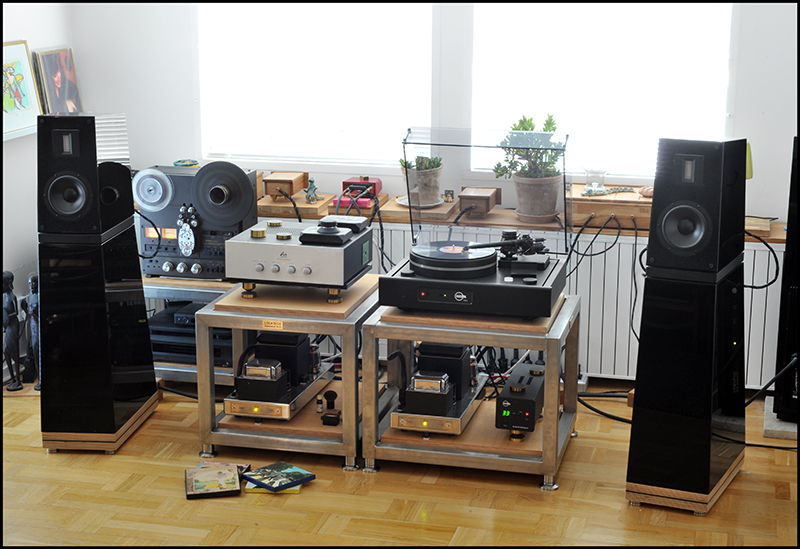

Verity Sarastro II and Audiodata Soutien 4

Sons at Kullaberg, Sweden

Verity Parsifal Ovation

Description

Turntable: Kuzma Stabi M, tonearm Kuzma 4Point, cartridge Lyra Atlas and Kleos.
Stepup: Lyra Erodion.

R2R: Studer B62 and Technics RS-1500US.
CD/Transport/DAC: Oppo BDP-105.

Preamp: Audio Note M5 Phono and Thöress Full Function Preamp
IC cables: Cardas Golden Reference.
Power amps: Jadis JA80 with TungSol KT120.

Speaker cables: Cardas Golden Reference.
Speakers: Verity Sarastro II.

Room correction: Audiodata Soutien 2 and 4, Golden Horn, Wing95, HH etc.

Power chords: Nordost Valhalla to power dist and preamp, JPS Labs Power AC+ to power amps, Audience AU24 to power cond. JPS Power AC In-wall to group central.
Power cond: Nordost Quantum QX4 + Audience Adept Response aR6 + Entreq Cleanus. Earthing: Entreq Tellus + Eartha Konstantin. Power distr: Nordost QBase 8.

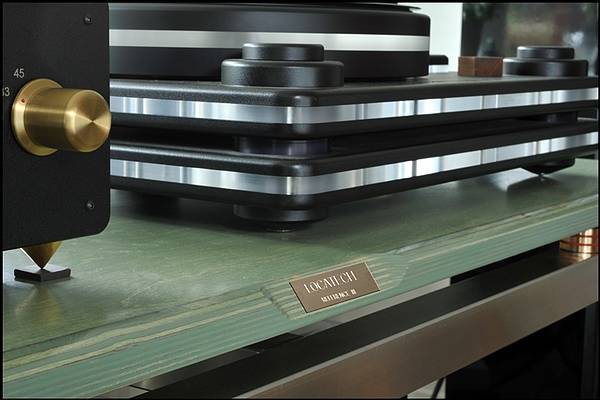

Rack: Locatech Ref IV-S (own design in stainless steel, plywood and yellow Sylodyn).

Room Details

Dimensions: 24’ × 12’ Medium
Ceiling: 8’

Components Toggle details

- Alexis Korner Blues Incorporated
Marquee MFSL
- Lyra Atlas
Moving-coil phono cartridge
- Lyra Skala
Moving-coil phono cartridge with solid boron cantilever and natural diamond, line-contact (3 by 70µm) stylus. Frequency range: 10Hz-50kHz. Channel separation: 35dB or better at 1kHz. Internal impedance: 5.5 ohms. Output voltage: 0.5mV (5cm/s, zeropeak, 45°). Compliance: ca 12 x 106 cm/dyne at 100Hz. Recommended tracking force: 1.651.75gm. Recommended load: 100 ohms to 47k ohms. Weight: 9g
- Lyra Erodion
MC step-up transformer with 26dB (20 times) gain for mc cartridges with internal impedance between 2 and 10 ohms.
- Kuzma 4Point
Pivoted tonearm with four-point bearing system. Dimensions: Effective length: 11
- Kuzma Stabi M
60kg rim driven turntable
- Kuzma Stabi Ref
Mass: 40kg Dimensions: 500x400x200 mm Weight Of Platter: 8kg Resonance subchassis: 2Hz (damped) Speeds: 33, 45 RPM Mat: textile & rubber Motor: two units, 24 poles
- Studer B62
R2R tape recorder.
- Technics RS1500US
4-track 15ips reel to reel player
- Audio Note UK M5 Phono
Level Three top line pre-amplifier with Audio Note tantalum resistors, 5687 line stage with novel power supply design based on the patented M10 power supply design, 6X5, OB2, ECL82, Audio Note filter cap and proprietary Audio Notecopper wired HiB C-core output transformer. Phono version has 6072A phono stage.
- Thöress FFP
Full-function tube preamplifier.
- Jadis JA-80
Monobloc power amplifier Automatic bias 60 Watt Rms per channel Freq range @-3dB: 20 Hz - 27 KHz Sensitivity: 500 mV Tubes: 6550/KT90/KT88/KT120 X 8, ECC82 X 2, ECC83 X 2 Dimensions: 260 x 625 x 240 mm each bloc Weight: 35 Kg per monobloc
- Locatech Reference III
Stainless steel frame with wooden shelfs, FE Cerabase, Cardas Myrtlewood etc etc. Rack adjusted above 11Hz to avoid turntable resonance, and further adjusted to critical damping.
- Verity Audio Sarastro II
Three-way, dual-enclosure, floorstanding loudspeaker. Drive-units: 2
- Audiodata Soutien 4
Active subwoofer with a closed cabinet, each woofer sensor-regulated. MDF-construction with wall-dampening through steel ball-filled inner chambers. 4 woofers ø 210 mm, 38 mm voice-coil with a separate velocity sensor carbon fibre cone. 4 power amplifiers with 180 Watt/4 Ohm = 720 Watt total power broad band regulation with a velocity sensor.
- Entreq Tellus
Earthing conditioner
- Audience Adept Response aR6
6 outlet power conditioner
- Entreq Cleanus
Power conditioner
- Nordost Quantum QX4
Mains purifier
- Nordost Quantum QB8
QBASE concept is a straight-line AC distribution path, combined with a star-earthed topology for connection to a clean ground. By eliminating any form of in-line filtering or active circuitry it maintains the lowest possible AC supply impedance, while a tiny lift in the earth impedance of all but one of the output sockets routes the signal grounds directly to the centre of the star and the clean earth terminal.
- Nordost Valhalla
Valhalla Reference Power Cord
- SMT Wing 95
Diffussor, or rather time delay device active from approx 1000 - 16000Hz.
WxLxH: 600x600x95mm.
- SMT Golden Horn
Diffussor active from 800 - 16000Hz.
WxLxD: 550x550x120mm.

Comments 10

Sign in to comment

lovely system !,,,,,

tomic601 January 22, 2022 16:39

Owner

Some more recent images added :)

calle_jr April 23, 2018 18:15

Owner

Some recent images added.

calle_jr November 03, 2015 20:07

Owner

System edited: Minor updates.

calle_jr May 24, 2015 18:58

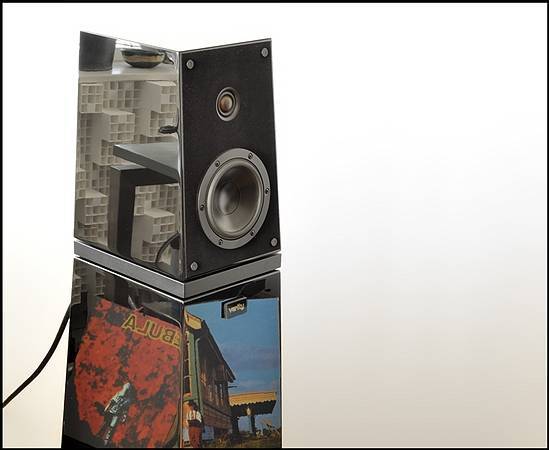

I love the fact that I can see the cover of Nebula's "Let it burn" reflecting on your speaker.

micah79 May 22, 2012 05:29

Owner

Thanks all!

G_goodwin; With M2Tech Palmer Power Station it seems voices are more refined, background is blacker and the decoding has more punch even on lower volumes. Digital playback is secondary in my system, but the M2Tech is really good and the Palmer doesn't restrict dynamics or pace for sure. With the Palmer it's possible to disconnect power completely but I can't detect any difference in sound if charging is on or off.

calle_jr May 20, 2012 09:25

Lovely system. I too have the Young dac and am looking into the Palmer power supply. Do you feel it's worth the dollars? How has it helped the Young? Any thoughts would be appreciated. Cheers!

g_goodwin May 20, 2012 02:52

Great system...Ringo rocks!

jazdoc May 03, 2012 16:44

Great system, creative images, product listings and software choices. I especially like the birthday photo and Ringo the Boxer.

albertporter May 03, 2012 04:31

beautiful. i use the same step up!

davidhyman May 02, 2012 21:23

Showing all 10 posts
