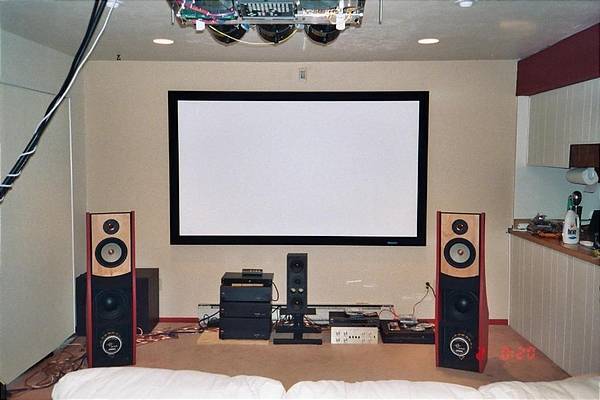

Description

2-channel and home theater built around Linkwitz Orions.

Some day I'll get around to adding the second pair of tweeters for Orion+.
Read more...

Components Toggle details

    • Adcom GCD-700
    Main CD player
    • Lexicon DC-1 AC-3 DTS THX v4.0
    Classic Lexicon
    • Linkwitz Orion cross-over
    3-way active cross-over designed by Siegfriend Linkwitz. I built mine using the Phoenix and WM1 boards, although since then SL has respun the design to use a single ASP board per channel.
    • Adcom GFA-555 mkII
    bass amp
    • Adcom GFA-545 mkII
    midrange amp
    • Adcom GFA-545 mkII
    tweeter amp

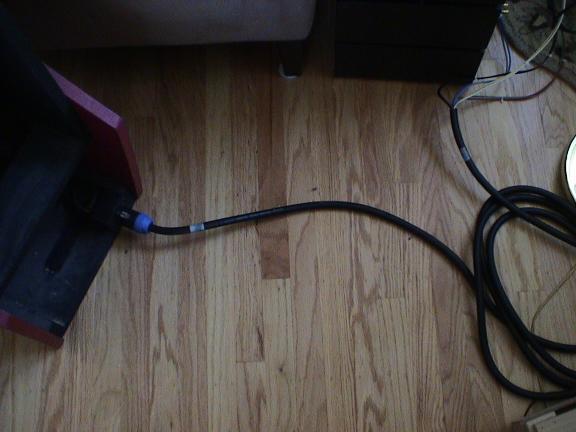

    • Home made 8 conductor speaker cables
    8 conductor 14 gauge cable from Vafam Sound with an 8-pole Speakon at the speaker end and four dual banana plugs at the amplifiers. 15' long because apart from when I had a separate equipment closet I've never wanted my power amps any farther from the speakers. Tweeter to midrange cross talk is below -75dB on a 30' length.

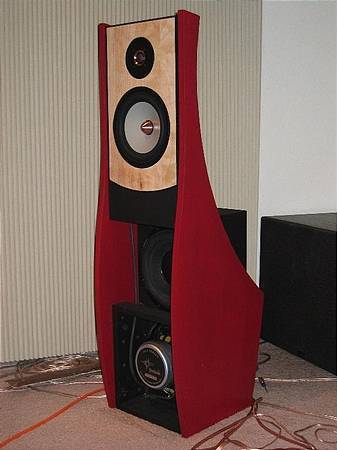

    • Linkwitz Orion
    Actively tri-amplified 3-way dynamic dipole.

    Build from plans like me
    http://www.linkwitzlab.com/orion_challenge.htm

    or buy assembled
    http://www.linkwitzlab.com/orion_us.htm
    • Adcom GFA-555 mkII
    Sub and center amp
    • Citation Citation 7.4
    ported
    • Definitive Technology C-1
    Center
    • Adcom GFA-545 mkII
    Side surround amp
    • Definitive Technology BP-8
    Side surround
    • Adcom GFA-545 mkII
    Surround back amp
    • Definitive Technology BP-8
    Surround back

Comments 3

Owner
That is a Marantz 7C and the box on top of the Orion cross-over switched between it (with adjacent CD players) for 2-channel and the Lexicon for home-theater.

I'd like to say that it was a little smoother. The noise floor was slightly higher but not audible at the listening position.

I later switched to using the Lexicon second zone (it's all analog) for 2-channel with sound being about the same but providing remote volume control with an attenuation display in dB.

drew_eckhardt

Owner
System edited: As a consequence of moving, all the video and surround sound equipment is in storage.

drew_eckhardt

Congratulations on what must have been quite a labor of love. Dipolar dynamic speakers have always intrigued me, as someone who values the transparency and detailing of panel speakers, and bass which is deep, accurate, and loud when called for.

Is that a Marantz 7C on the floor? If so, have you used it in place of the Lexicon, for two-channel listening, and if so what were your reactions?

Regards,
-- Al

almarg
