Description

All decoding done on the player. Pure-analog stereo/multichannel signals through the system.

Works very well both as a two-channel system and as a home theater.

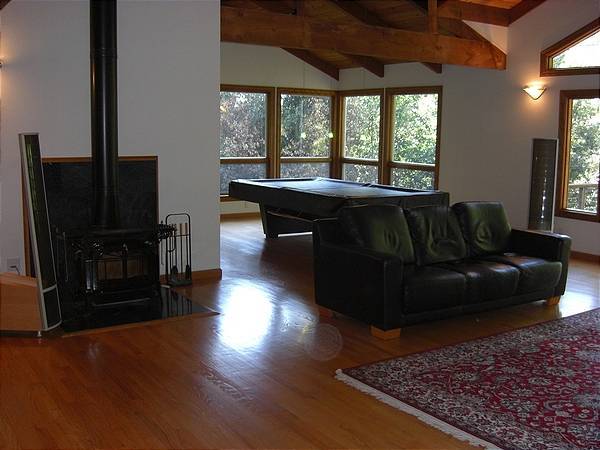

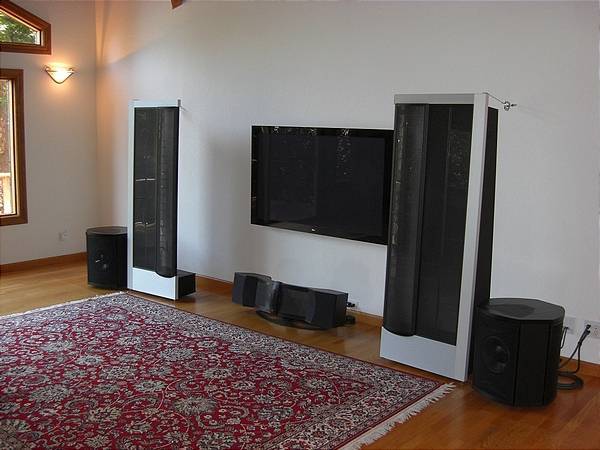

We're fortunate in that our living room allows setting up speakers in correct ITU 5.1 (3/2) orientation and spacing, and no room correction is needed, despite the woodstove and pool table in the rear. (We move the speaker near the woodstove out of the way on those rare occasions when we need to light a fire.)

I've been an audiophile since 1971, when I wandered into Gaylord Audio in Concord, California while I was as supposed to be in school.

I'm fortunate that my WAF is a perfect 100% (we're both engineers), so we've built this out together, and she likes the way the system looks as much as I do.

Equipment closet is off to the right and ~50' from speakers and monitor, which produces a very clean look and hides distracting front-panel lights to improve watching movies, but also introduces possibility of ground loops, EMI problems, and HDMI dropouts. These are addressed by running cables in individual grounded conduits; running LFE balanced instead of single-ended; using 6' HDMI cables with proper EQ and matched Lumagen scaler and HDMI extender; running dedicated 120V power in separate, dedicated circuits to the left and right rear speakers, center speaker, left front speaker and sub, right front speaker and sub, and flat panel; and conditioning the power for the preamp, player, and scaler.

Cabling is pragmatic (high quality, reasonably priced, no voodoo): Blue Jeans Cables for signals and HDMI, Martin Logan CLX power cords for speakers, Take Five Audio/Neotech power cords for Anthem, built-in power cord for Furman, commercial-grade outlets.

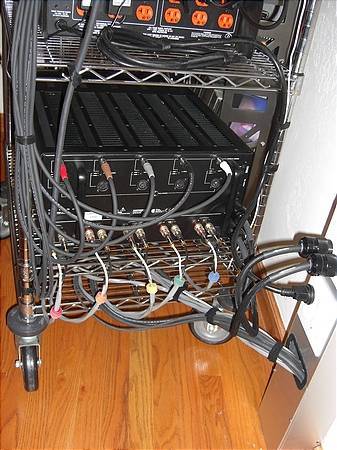

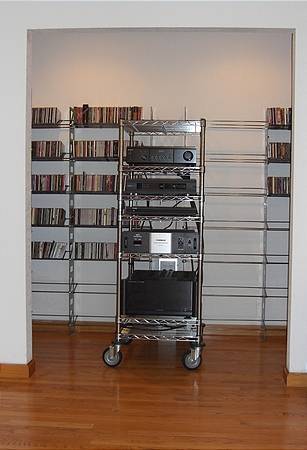

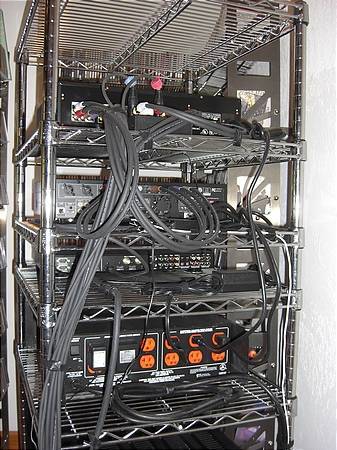

Equipment rack is Metro Super Erecta shelving, which is inexpensive, attractive, flexible, strong, mobile, and cool-running.

Media racks are from Boltz. Strong, attractive, and flexible.

Conduit installation and other construction work done by Terry Welfring Construction, San Jose, California, and his dynamite crew, the Hernandez brothers.

Power and cables box on wall fabricated by Protoforms in San Jose, California.

The UV-protection fabric is Solarweave, from rockywoods.com, cut and hemmed by Leading Edge Sails, San Mateo, California.

And (not shown) the plasma is protected by a circuit described on my free-inventions blog (http://free-inventions.blogspot.com/2010/04/power-outage-power-cutouts-for.html).
Read more...

Components Toggle details

    • Oppo BDP-105 Universal Audiophile Player
    Audiophile multi-format player. http://www.oppodigital.com/blu-ray-bdp-105/
    • NuForce MCP-18
    Pure-analog multi-channel preamp.
    • Anthem Statement P5 Power Amp
    http://www.anthemav.com/products/anthem-statement/amplifier/p-series/p-5
    • Martin Logan CLX Anniversary Edition
    http://www.martinlogan.com/products/clx25
    • Martin Logan Descent-i
    Two subwoofers, matched to the CLXs, and used to extend the range down to 18Hz. Also used with a Y'd LFE out of preamp for home theater. http://www.martinlogan.com/products/descenti.
    • Martin Logan Stage-X
    Martin Logan Stage-X center channel
    • Martin Logan Summit
    Rear speakers for 5.1. http://www.martinlogan.com/products/summit
    • Lumagen Radiance XS Scaler/HDMI Extender
    Video scaler/switch, plus HDMI-to-HDMI extender. http://www.lumagen.com/testindex.php?module=radianceXS_details http://www.lumagen.com/testindex.php?module=hdmiext_details
    • Panasonic Viera TC-P65ZT60 Plasma
    65" plasma
    • Furman IT-20 II Balanced Power Conditioner
    http://www.furmansound.com/product.php?div=01&id=IT-20_II
    • Xantech 791-40/480-00/283M
    One dinky-link 480-00 pickup and three Blink-IR 283M IR repeaters. http://www.xantech.com/Infrared/Infrared/ConnectingBlocks/79144 http://www.xantech.com/files/manuals/91_79144.pdf

Comments 6

Owner
System edited: Replaced Sony with NuForce.

happybuyer

Owner
System edited: Replaced Theater-i with Stage-X and replaced Kuro with Panasonic.

happybuyer

Owner
Rack photos are obsolete (upgraded from Oppo BDP-95 to BDP-105 to get rid of fan).

happybuyer

Owner
System edited: Upgraded from Oppo 95 to 105. No more fan!

happybuyer

What a great multichannel system focusing on purity instead of processing. A music-lovers system for sure. I particularly love the Oppo doing the processing and the Sony as a basic preamp. Your Sony 9000 reminds me of the Audio Refinement Pre-5 I once had that was similar. Though I haven't heard the combo, I'll bet Anthem/ML is a good combo. You are to be commended. Now lets see some photos of your equipment rack and room.

mjcmt

Wow looks amazing great job .love the clx wish I had pair maybe someday .

kwa69

Showing all 6 posts
