DIY T-amp and Full range drivers

by extra_action on Budget Minded
Basic room setup

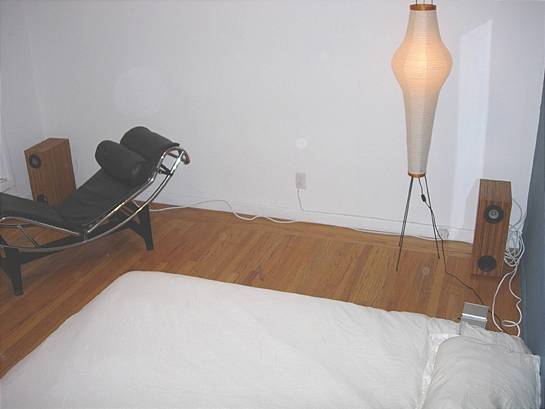

close-up of not ideal listening posistion
speaker-45
speaker-90
amp and power source
amp and power source 2

Description

For years I have been fascinated with the class D-amp, most notably the Gaincard. Its supposed ability to deliver clear, precise, fast sound powered by nothing more than a few volts and at a ridiculously low price had made it a darling with DIY audiophile enthusiast. My own experience to date had been with the classic Sonic T-amp bought for not more than $30. From the outset its ability to portray instruments that sound pretty real had left me charmed but wanting more.

So I decided to build my own system using what basic electronic skills I had and peruse the web for those that I didn t

The Amp

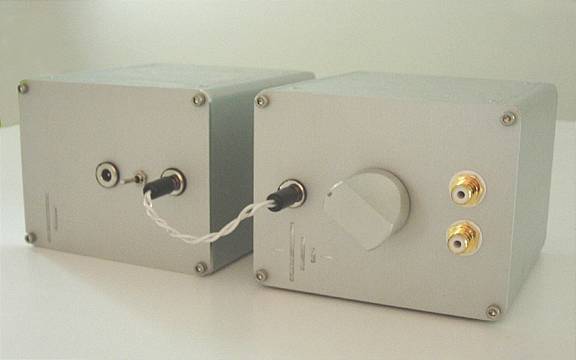

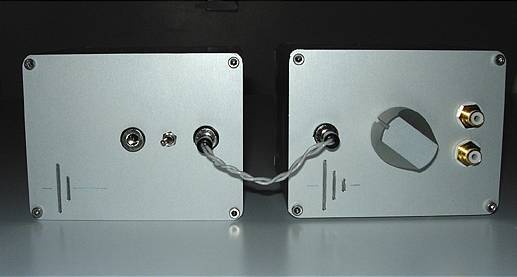

The amp is based on a kit manufactured by Autocostruire 2020 which in turns uses a Tripath 2020 chip as its foundation. I modded the kit to use all internal silver wiring, and did away with the AC power option and instead used a 12V DC power supply for its natural stability- this is an idea obviously borrowed from Red Wine Audio and the like who have always been profits of DC power. The cell and amp are each housed in separate aluminum chassis, which are 3”x4”x4”. The face plates are custom milled. But here is the rub, it only delivers 20W of power per channel

The Speakers.

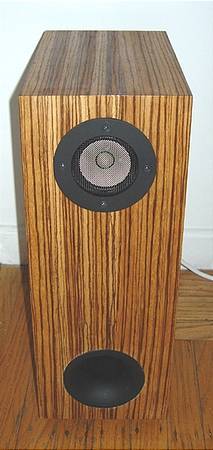

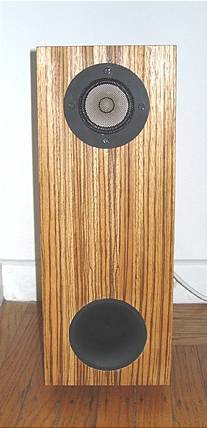

To accommodate this little amp with its excellent sonic imaging and sound stage I decided to build a set of full range single driver speakers. The speakers use 3.5” Fostex drivers whilst the cabinet is based on a tried and tested double base reflex enclosure. I decided to treat myself and build the speakers out of ¾” MDF with Zebra wood veneer. Costly but unique and having the grain waterfall from the lid to the face made all the effort well worth it. All internal wiring is silver along with the terminals. I have no idea on how to measure a speakers performance, except by the old subjective way. I would appreciate any help on how I might go about measuring the performance with simple software.

The Source

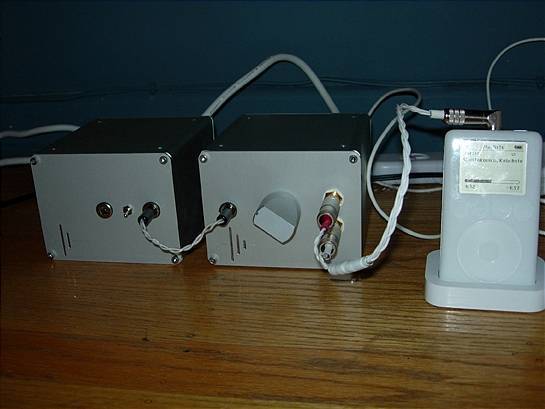

This one still needs plenty of work. I am currently using a 3rd generation IPOD spooling uncompressed WAV files. I have been thinking about going analogue but have no idea where to start so any help would be greatly appreciated

I think that in the end the effort has been worth it. The sound is wide, extremely fast and organic. It’s not neutral with the bass a little soft and the mid pretty forward. But the instrumentation is clear and “real”. I have only been running the system for about 10 hours so plenty of burn in time to go but I find myself definitely wanting more. I am in no way suggesting that there are not amplifiers and setups out there that would not do a significantly better job, but not at this price point. My reference system is an all Linn based aktiv system http://forum.audiogon.com/cgi-bin/fr.pl?vopin&1095824323 and although I find this system extremely gratifying and appreciate is honesty neutrality and speed my bedroom system offers a character that is both engaging and wanting.
Read more...

Components Toggle details

    • Fostex 3.5 Custom cabinet
    A double bass reflex cabinet with a lower port tuned to 60Hz.All silver internal wiring and posts
    • Tripath 2020 Custom
    Tripath 2020 chip based amplifier. Powered by 12V DC. Separate chassis for each
    • Apple Ipod 30Gig
    3rd generation ipod 30gig
