Description

I had a need for footers that would save my hardwood floor and audio rack. I made two different footers:

1) A 3" by 3" constrained layer sandwich. 1/2" MDF, then a layer of Wurth Noise Suppression Pads, another layer of 1/2" MDF and finally a thin layer of cork. All glued together with contact cement. I left some natural color, painted some black, others Mahogany.

2) A 3" by 3" constrained layer sandwich. 1/2" BC Fir plywood, Wurth Noise Suppression Pads, another layer of 1/2" BC Fir Plywood, thin layer of cork. Again ,contact cement did the trick. Three layers of lacquer.

I find these footers attractive and very effective in supressing vibration. Biggest benefit has been under source components and speakers.
Read more...

Components Toggle details

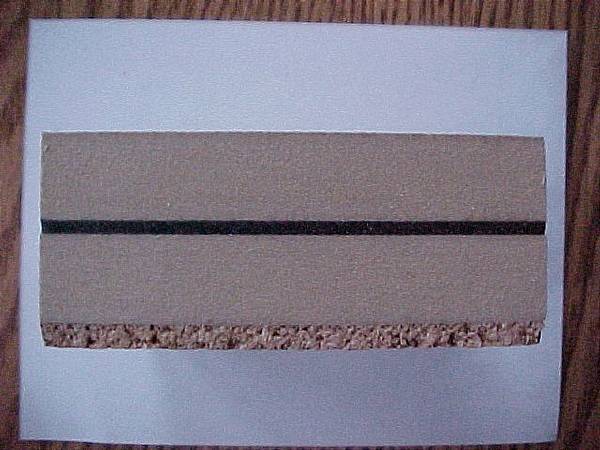

    • DIY Footer MDF
    Constrained layer principle. 3

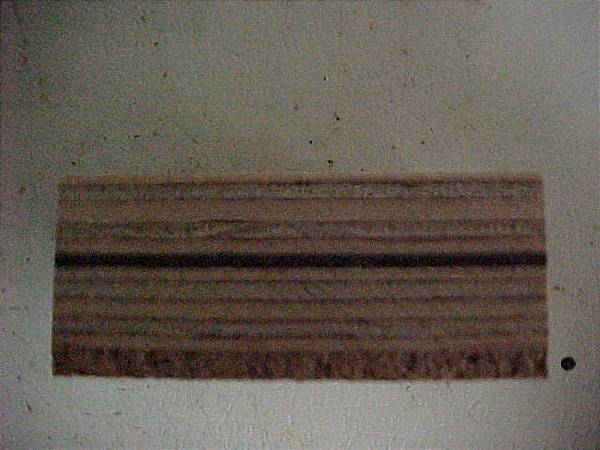

    • DIY Footer Plywood
    Contrained Layer principle with 1/2

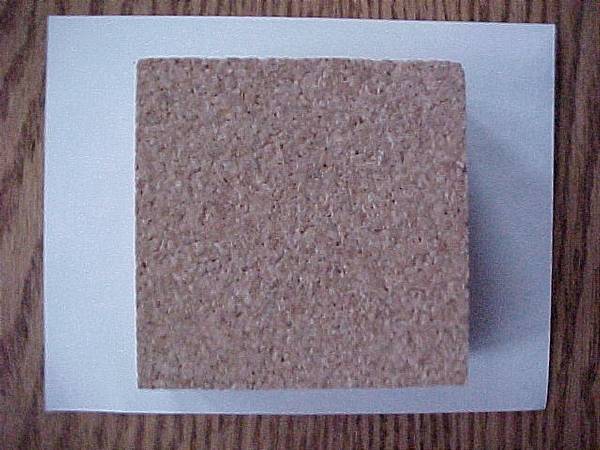

    • DIY Footer Bottom View
    Cork bottom to protect hardwood florrs, racks, etc...
    • DIY Footer Top View (Plywood)
    Three coats of lacquer

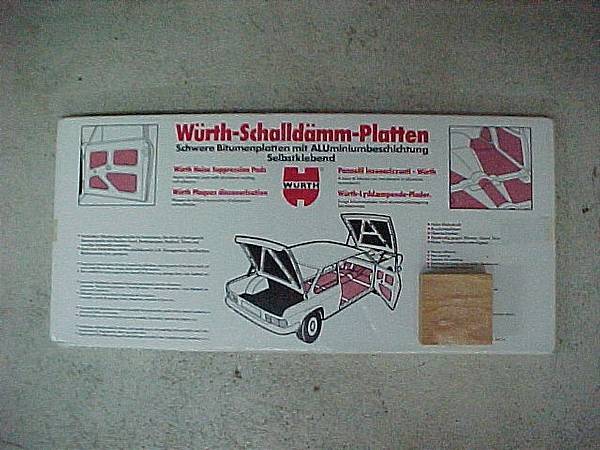

    • Damping Material
    Wurth Noise Suppression Pads
    Article no. 890 100 060
    6 pads per box, 550 x 250 x 2 mm

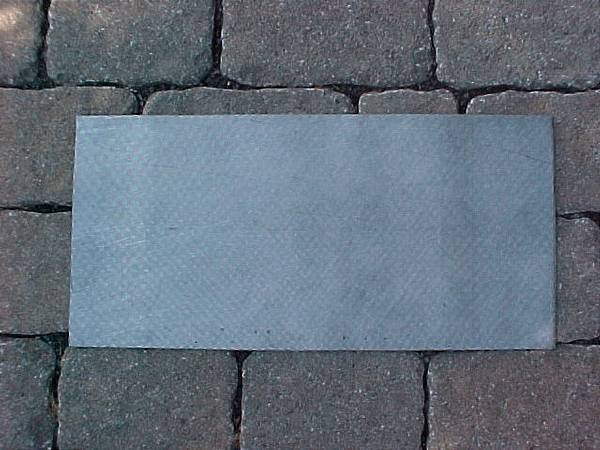

    • Wurth Suppression Pads Top View
    Heavy bitumen pads with aluminum coating, self adhesive

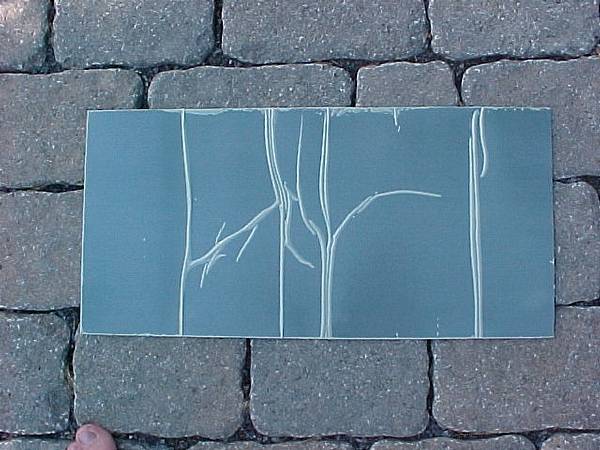

    • Wurth Suppression Pads Back
    Black, peel and stick
